W (990389) - Simplicity Two-Wheeled Tractor Handle Group (3643I03) Parts Diagram

Two-Wheeled Tractor

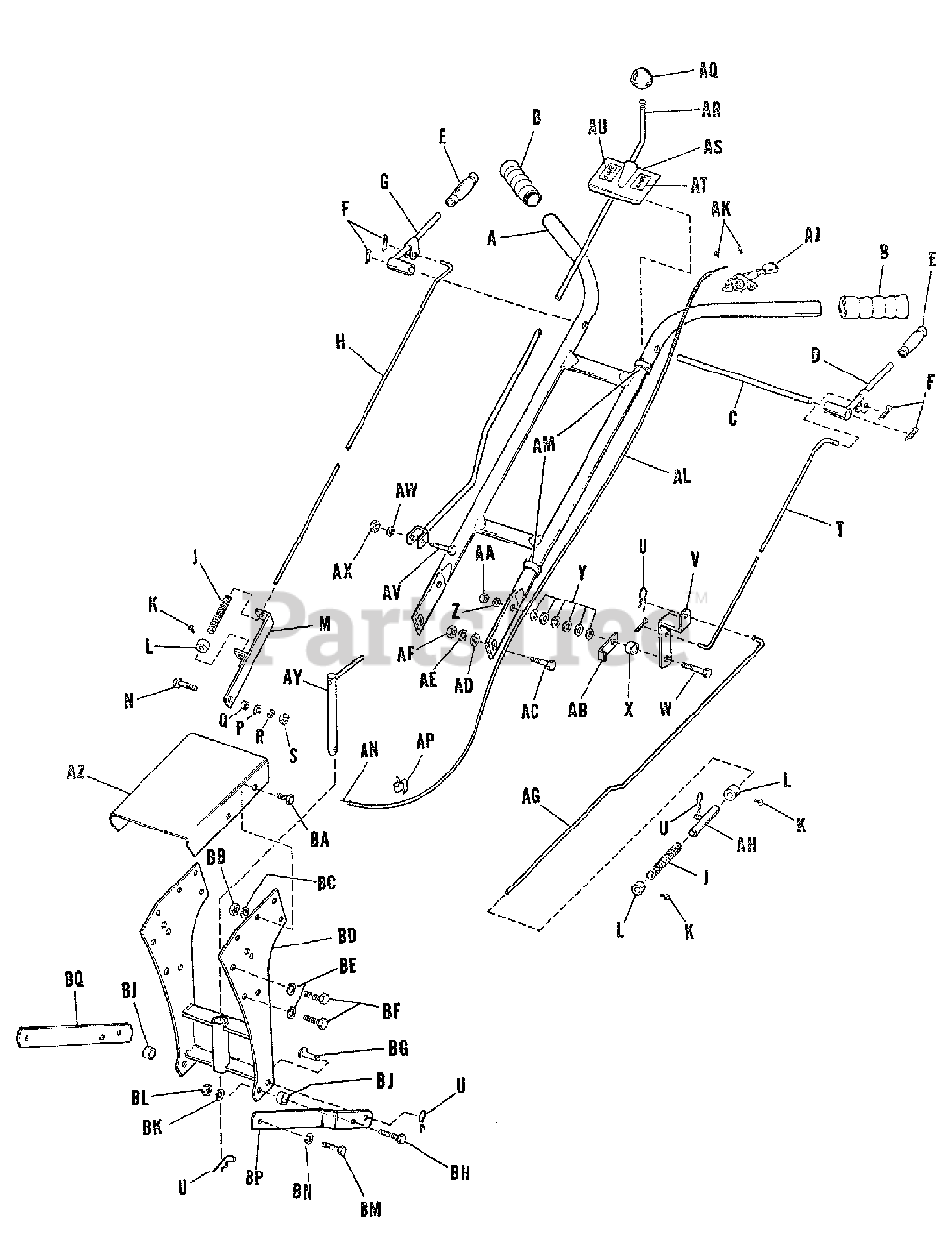

Handle Group (3643I03) Parts Diagram

  • Title

A

Simplicity 155030

HANDLE ASSEMBLY

$

$

Not available

B

Simplicity 155038

GRIP, Handle

$

$

Not available

C

Simplicity 155039

PIN, Lever

$

$

Not available

D

Simplicity 155006

LEVER ASSEMBLY, L.H.

$

$

Not available

E

Simplicity 153017

GRIP

$

$

Not available

F

Simplicity 2722001

PIN, Cotter, 3/32" Diameter x 3/4" LG

$

$

Not available

G

Simplicity 155008

LEVER ASSEMBLY, R.H.

$

$

Not available

H

Simplicity 155012

ROD, Engine Clutch

$

$

Not available

J

Simplicity 1729277SM

SPRING, Clutch Rod

$6.99

$

Usually ships in 2-12 days

0

K

Simplicity 2713001

SCREW, Set, Square Head, Cup Point, 1/4"-20 NC x 3/8" LG

$

$

Not available

L

Simplicity 1729276SM

COLLAR, Set

$

$

Not available

M

Simplicity 1729265SM

GUIDE ASSEMBLY, Clutch Rod

$41.99

$

Usually ships in 2-12 days

0

N

Simplicity 2705005

CAPSCREW, Hex, Head, 3/8"-16 NC x 1" LG

$

$

Not available

P

Simplicity 2719001

WASHER, Plain, 3/8"

$

$

Not available

Q

Simplicity 2153073

SPACER

$

$

Not available

R

Simplicity 2720002

WASHER, Lock, 3/8"-16 NC

$

$

Not available

S

Simplicity 2717003

NUT, Hex, Full, 3/8"-16 NC

$

$

Not available

T

Simplicity 8021122

ROD, Upper Idler

$

$

Not available

U

Simplicity 1918196SM

SPRING, Clip
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

V

Simplicity 155005

LEVER, Lower Clutch

$

$

Not available

W

Simplicity 2705010

CAPSCREW, Hex Head, 3/8"-16 NC x 1-3/4" LG

$

$

Not available

X

Simplicity 1663752SM

BUSHING

$5.99

$

In Stock, only 4 left!

0

Y

Simplicity 2719001

WASHER, Plain, 3/8"

$

$

Not available

Z

Simplicity 2720002

WASHER, Lock, 3/8"

$

$

Not available

AA

Simplicity 2717003

NUT, Hex, Full, 3/8"-16 NC

$

$

Not available

AB

Simplicity 8021121

LEVER, Stop

$

$

Not available

AC

Simplicity 2705016

CAPSCREW, Hex Head, 3/8"-16 NC x 1-1/4" LG

$

$

Not available

AD

Simplicity 2719001

WASHER, Plain, 3/8"

$

$

Not available

AE

Simplicity 2720002

WASHER, Lock, 3/8"

$

$

Not available

AF

Simplicity 2717003

NUT, Hex, Full, 3/8"-16 NC

$

$

Not available

AG

Simplicity 8061090

ROD, Lower Clutch

$

$

Not available

AH

Simplicity 8161518

SOCKET ASSEMBLY, Rod

$

$

Not available

AJ

Simplicity 8061087

CONTROL, Throttle Lever

$

$

Not available

AK

Simplicity 714005

SCREW, Round Head, Self Tapping, #10-24 x 1/2" LG

$

$

Not available

AL

Simplicity 153086

THROTTLE CABLE

$

$

Not available

AM

Simplicity 80611-08

CLIP, Cable

$

$

Not available

AN

Simplicity 153087

WIRE, Throttle

$

$

Not available

AQ

Simplicity 155044

BALL, Shit Lever

$

$

Not available

AR

Simplicity 155029

ROD ASSEMBLY, Shift

$

$

Not available

AS

Simplicity 155015

GUIDE ASSEMBLY, Rod

$

$

Not available

AT

Simplicity 155003

DECAL, Shift, L.H.

$

$

Not available

AU

Simplicity 155002

DECAL, Shift, R.H.

$

$

Not available

AV

Simplicity 2705018

CAPSCREW, Hex Head, 5/16"-18 NC x 1-1/2" LG

$

$

Not available

AW

Simplicity 2720001

WASHER, Lock, 5/16"

$

$

Not available

AX

Simplicity 2717001

NUT, Hex, Full, 5/16"-18 NC

$

$

Not available

AY

Simplicity 8061502

PIN ASSEMBLY, Hitch

$

$

Not available

AZ

Simplicity 155027

COVER, Frame

$

$

Not available

BA

Simplicity 2705012

CAPSCREW, Hex Head, 5/16"-18 NC x 5/8" LG

$

$

Not available

BB

Simplicity 2717001

NUT, Hex, Full, 5/16"-18 NC

$

$

Not available

BC

Simplicity 2720001

WASHER, Lock, 5/16"

$

$

Not available

BD

Simplicity 155033

FRAME ASSEMBLY, Rear

$

$

Not available

BE

Simplicity 2720006

WASHER, Lock, 7/16"

$

$

Not available

BF

Simplicity 2705041

CAPSCREW, Hex, Head, 3/8"-16 NC x 1" LG

$

$

Not available

BG

Simplicity 2155037SM

PIN, Round Head

$12.99

$

In Stock, only 1 left!

0

BH

Simplicity 2705009

CAPSCREW, Hex Head, 3/8"-16 NC x 1-1/4" LG

$

$

Not available

BJ

Simplicity 105006

SPACER

$

$

Not available

BK

Simplicity 2720002

WASHER, Lock, 3/8"

$

$

Not available

BL

Simplicity 2717003

NUT, Full, Hex, 3/8"-16 NC

$

$

Not available

BM

Simplicity 2705041

CAPSCREW, Hex Head, 7/16"-14 NC x 1" LG

$

$

Not available

BN

Simplicity 2720006

WASHER, Lock, 7/16"

$

$

Not available

BP

Simplicity 155010

BAR, Draw, L.H.

$

$

Not available

BQ

Simplicity 155011

BAR, Draw, R.H.

$

$

Not available
