WA F550 A - Wizard Front-Tine Tiller (2003)

Front-Tine Tiller

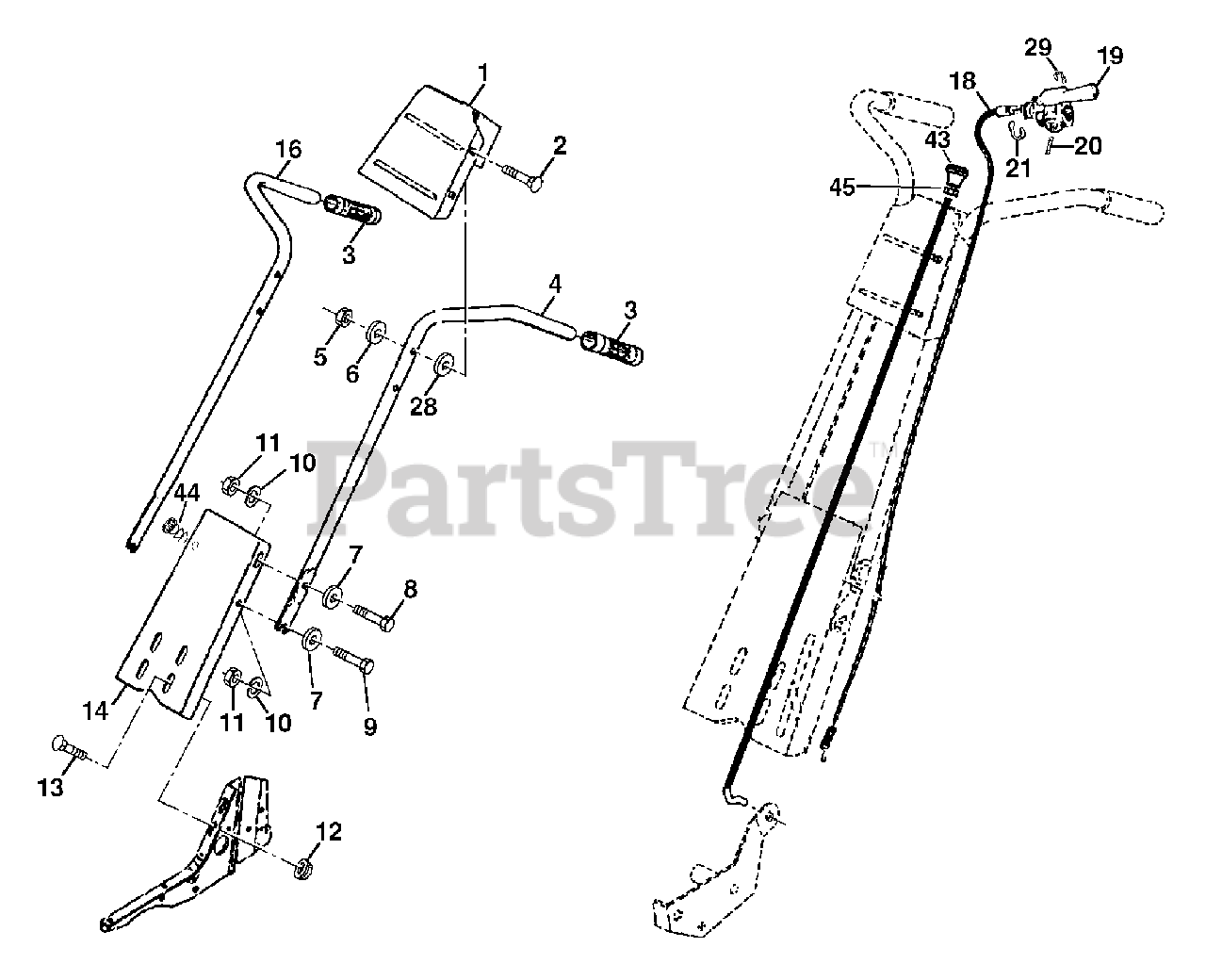

WA F550 A - Wizard Front-Tine Tiller (2003) > Parts Diagrams (6) > Handle Assembly

  • Title
180814X603

1

Panel Pnt Control

Part# 180814X603

OEM Warranty Repair Part for Electrolux/AYP

Not available

72140512

2

Bolt, Carriage 5/16-18 UNC x 1-1/2

Part# 72140512

OEM Warranty Repair Part for Electrolux/AYP

Not available

9266R

3

Grip, Handle

Part# 9266R

OEM Warranty Repair Part for Electrolux/AYP

Not available

166376

4

Handle, L.H.

Part# 166376

OEM Warranty Repair Part for Electrolux/AYP

Not available

73680500

5

Locknut, Crown 5/16-18

Part# 73680500

OEM Warranty Repair Part for Murray

Not available

19111116

6

Washer 11/32 x 11/16 x 16 Ga.

Part# 19111116 (Superseded to 819111116)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $5.81

19121414

7

Washer 3/8 x 7/8 x 14 Ga.

Part# 19121414 (Superseded to 819121414)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $5.81

74760516

8

Bolt, Hex Hd. 5/16-18 x 1

Part# 74760516

OEM Warranty Repair Part for Electrolux/AYP

Not available

74760512

9

Bolt, Hex Hd 5/16-18 x 3/4

Part# 74760512

OEM Warranty Repair Part for Electrolux/AYP

Not available

10040500

10

Washer, Lock 5/16

Part# 10040500 (Superseded to 810040500)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

73220500

11

Nut, Hex 5/16-18

Part# 73220500 (Superseded to 873220500)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 6 business days

Your price: $4.46

98000129

12

Nut, Flanged 5/16-18

Part# 98000129 (Superseded to 898000129)

OEM Warranty Repair Part for Electrolux/AYP

Not available

180847

13

Bolt, Carriage 5/16-18 x 3/4 Gr. 5

Part# 180847 (Superseded to 532180847)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

181452X603

14

Panel, Handle

Part# 181452X603

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 6 business days

Your price: $10.66

166377

16

Handle, R.H.

Part# 166377

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 6 business days

Your price: $14.68

166868

18

Cable, Control, Tine

Part# 166868

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $20.11

151229

19

Lever, Control, Tine

Part# 151229

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 6 business days

Your price: $25.70

154805

20

Pin, Pivot

Part# 154805

OEM Warranty Repair Part for Electrolux/AYP

Not available

12000027

21

Ring, Klip

Part# 12000027

OEM Warranty Repair Part for Electrolux/AYP

Not available

19131312

28

Washer 13/32 x 13/16 x 12 Ga.

Part# 19131312

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $5.81

12000059

29

Retaining, Ring

Part# 12000059

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

180528

43

Cable Assembly, Reverse

Part# 180528

OEM Warranty Repair Part for Electrolux/AYP

Not available

181580

44

Clip

Part# 181580

OEM Warranty Repair Part for Electrolux/AYP

Not available

73920600

45

Nut Keps 3/8-24 Unf

Part# 73920600 (Superseded to 873920600)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 6 business days

Your price: $4.46
