WA30 C (WA30) - Honda Water Pump, Made in Japan (SN: WA30-1005563 - WA30-9999999) CRANKCASE COVER Parts Diagram

Water Pump, Made in Japan

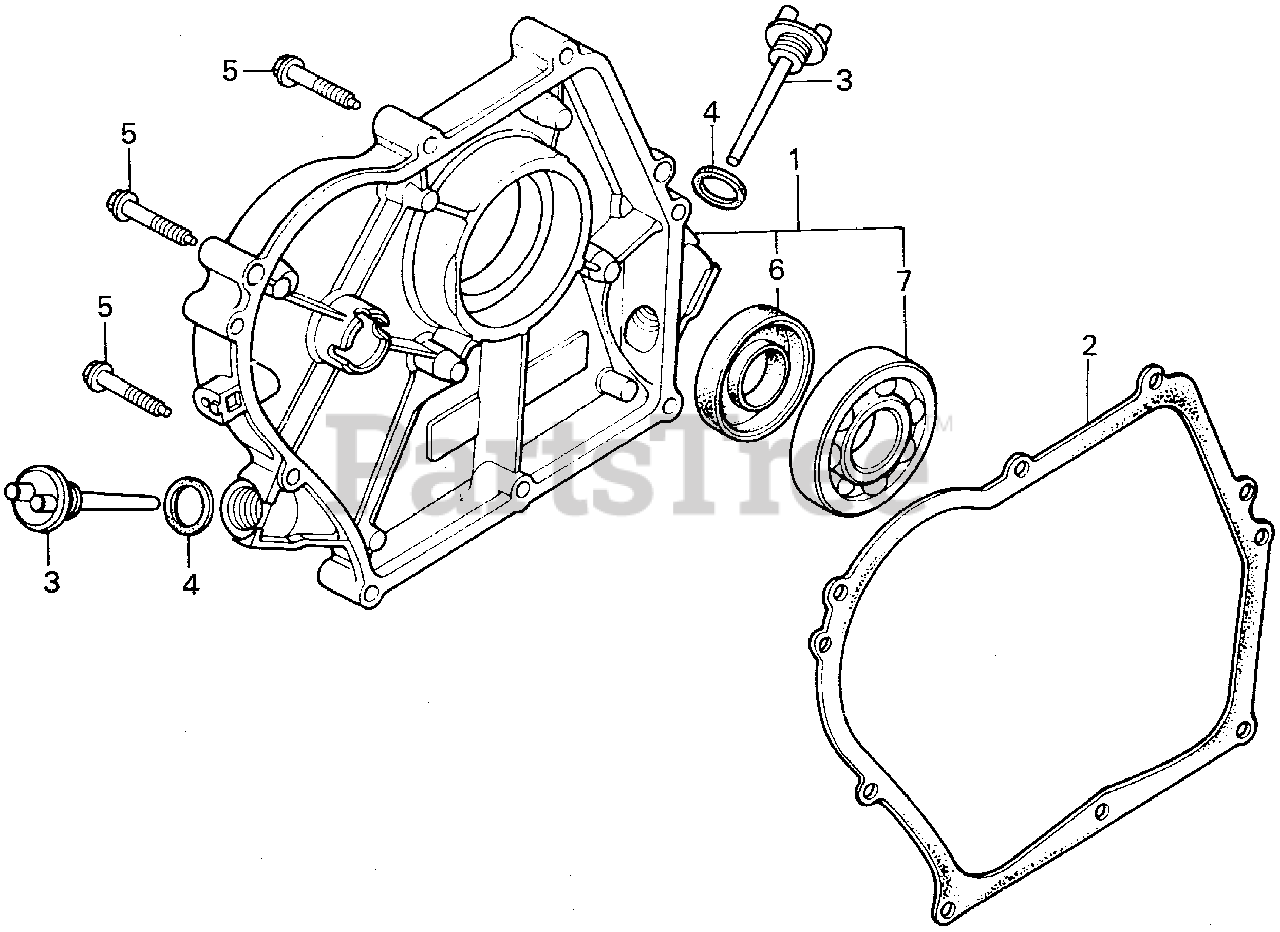

CRANKCASE COVER Parts Diagram

  • Title

1

Honda 11300-883-662

COVER ASSY., CRANKCASE (Q-TYPE)

Note: Use up to Engine SN 1124830.

$

$

Not available

1

Honda 11300-883-710

COVER ASSY., CRANKCASE (U-TYPE)

Note: Use from Engine SN 1124831.

$

$

Not available

2

Honda 11381-883-800

GASKET, COVER

$11.99

$

Usually ships in 3-6 days

0

3

Honda 15620-883-010

CAP, OIL

$

$

Not available

4

Honda 15621-896-010

GASKET, OIL FILLER CAP

Note: Use from Engine SN 1569188.

$5.49

$

In Stock, Qty 7

0

5

Honda 90017-883-000

BOLT, FLANGE (6X32)

$3.49

$

In Stock, only 2 left!

0

6

Honda 91201-Z0T-801

SEE PART DETAILS - PRI; OIL SEAL (25X41X6)

$8.99

$

In Stock, Qty 13

0

6

Honda 91202-883-005

SEE PART DETAILS - SUP; OIL SEAL (25X41X6)
(Superseded to 91201-Z0T-801)

$8.99

$

In Stock, Qty 13

0

7

Honda 96100-62050-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205)

$22.99

$

In Stock, only 2 left!

0
