Walkabout 36 - Dixon 36" Walk-Behind Mower, Belt-Drive, Kohler (2007) 36" FRAME ASSEMBLY Parts Diagram

36" Walk-Behind Mower, Belt-Drive, Kohler

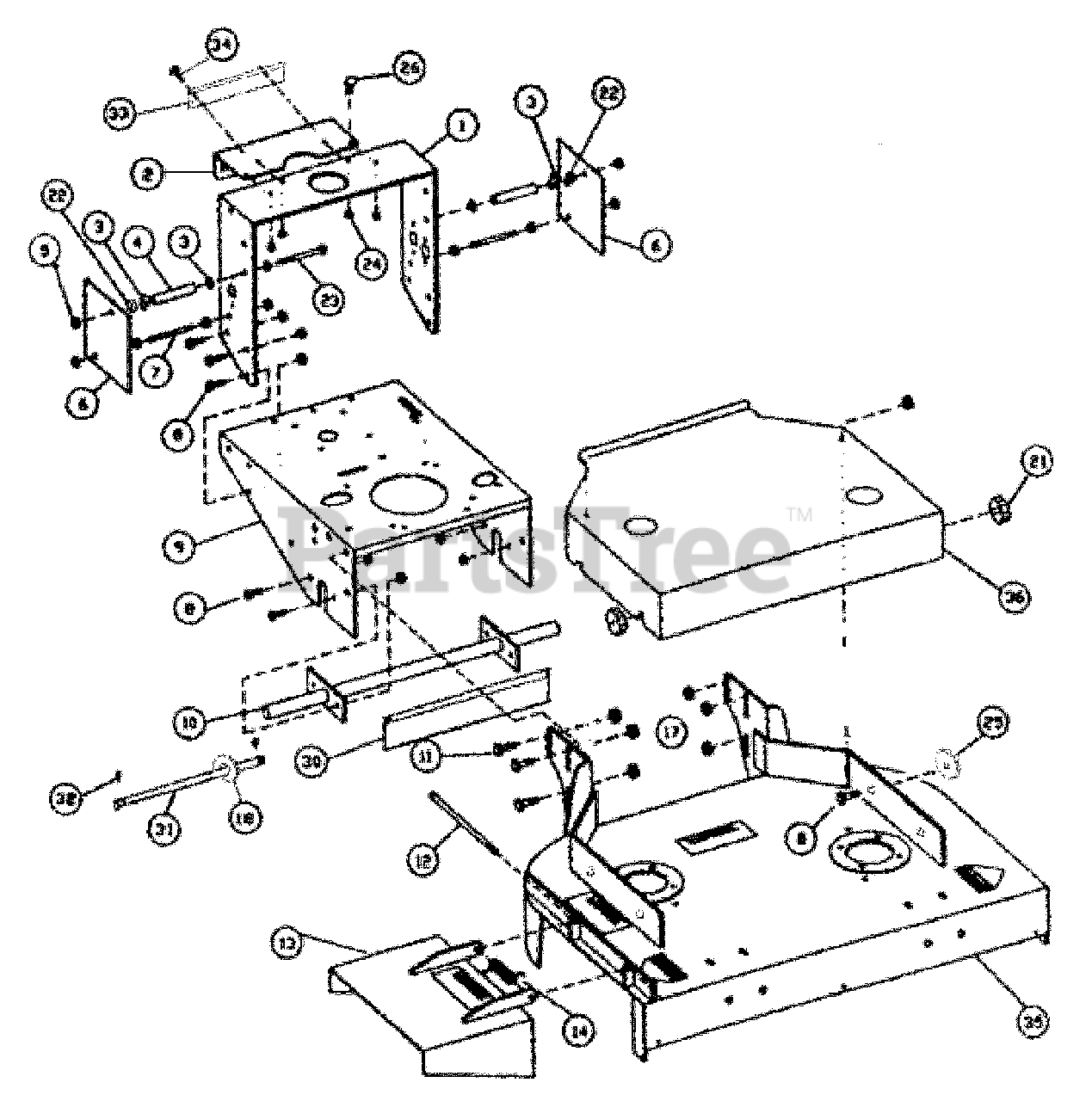

36" FRAME ASSEMBLY Parts Diagram

  • Title

1

11501

$

$

Not available

2

11502

100-002 SHIFT CONSOLE

$

$

Not available

3

11503

100-003 WASHER

$

$

Not available

4

11504

100-004 PIVOT TUBE

$

$

Not available

5

11701

NUT, 200-001 M10

$

$

Not available

6

11505

100-005 FENDER

$

$

Not available

7

11702

BOLT, END 200-002 DBL.

$

$

Not available

8

12808

M10X1.5X25MM HHB GR8.8

$

$

Not available

9

11506

$

$

Not available

10

11621

$

$

Not available

11

11704

HHB 200-004 M12 25

$

$

Not available

12

11705

200-005 HHB M10`240

$

$

Not available

13

11507

100-007 CHUTE DEFLECTOR

$

$

Not available

14

11508

100-008 TORSION SPRING

$

$

Not available

15

11706

200-006 NYLON NUT M10

$

$

Not available

17

11707

200-007 NYLON NUT M12

$

$

Not available

18

3020

5/16STD FLAT WASHER.

$

$

Not available

21

11509

100-009 SAUCER NUT

$

$

Not available

22

11706

200-006 NYLON NUT M10

$

$

Not available

23

11708

200-008 HEX.BOLT M10`110

$

$

Not available

24

11709

200-009 NYLON NUT M6

$

$

Not available

25

3057

WASHER, 3/8 STD FLAT

$

$

Not available

26

11711

200-011 BOLT M6`16

$

$

Not available

30

11511

100-011 SAFETY FLAP

$

$

Not available

31

11512

$

$

Not available

32

11714

200-014 COTTER PIN 2`20

$

$

Not available

33

11616

100-116 SHIFT PLATE

$

$

Not available

34

11763

200-063 RIVET 2`5

$

$

Not available

35

11631

136-001BLUE DECK 36`

$

$

Not available

36

11632

136-002BLUE HOOD 36`

$

$

Not available
