Walkabout 36 - Dixon 36" Walk-Behind Mower, Belt-Drive, Kohler (2007) 36" FRONT DECK ASSEMBLY Parts Diagram

36" Walk-Behind Mower, Belt-Drive, Kohler

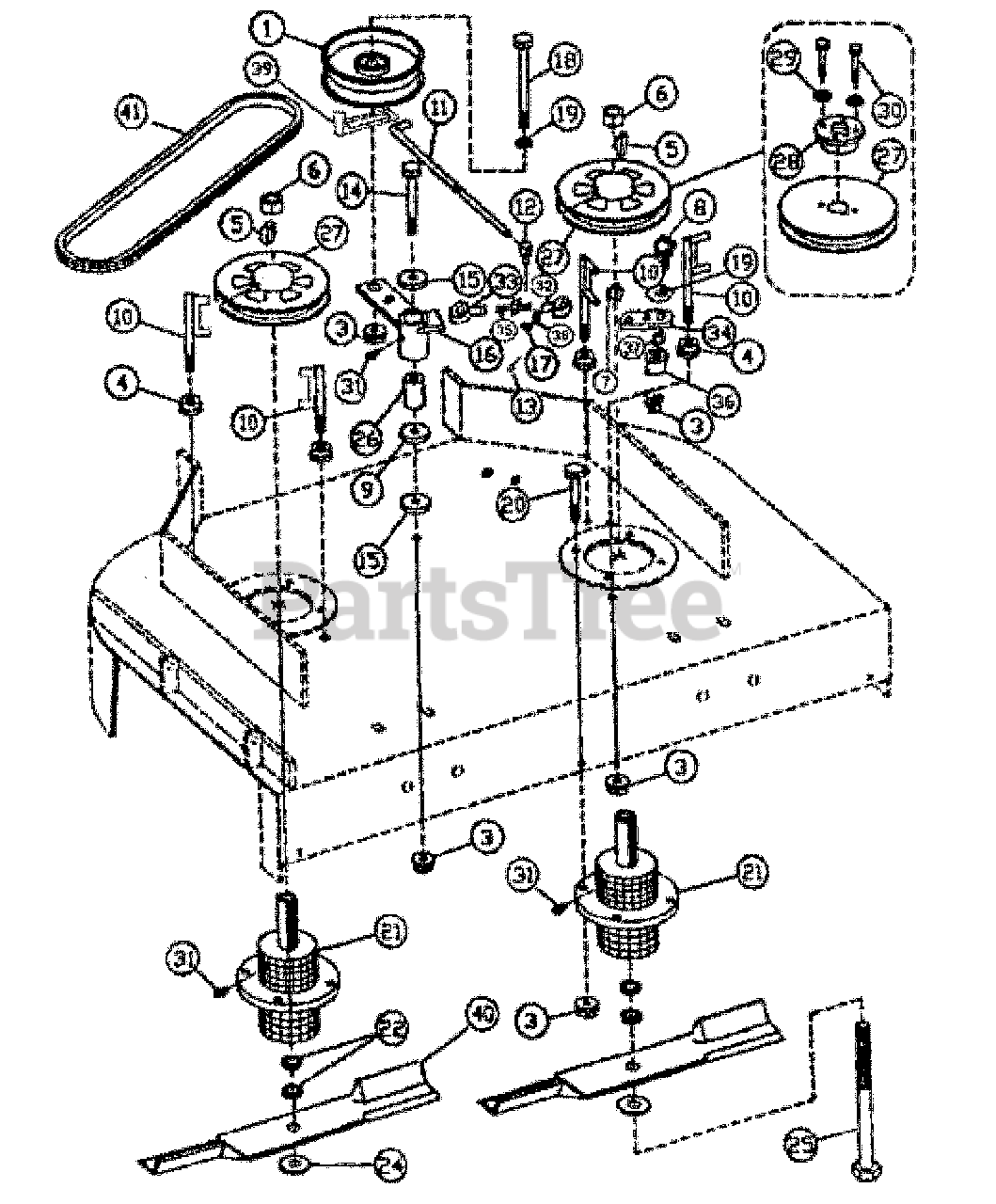

36" FRONT DECK ASSEMBLY Parts Diagram

  • Title

1

11513

100-013 IDLER PULLEY

$

$

Not available

3

11706

200-006 NYLON NUT M10

$

$

Not available

4

11716

200-016 NUT FLANGE M10

$

$

Not available

5

11514

100-014 KEY 6.35`6`50

$

$

Not available

6

11717

200-017 NEX NUT M16`1.5

$

$

Not available

7

11718

200-018 HEX BOLT M10-35

$

$

Not available

8

11719

200-019 HEX BOLT M10-40

$

$

Not available

9

11515

100-015 WASHER 2`26ID

$

$

Not available

10

11516

$

$

Not available

11

11517

$

$

Not available

12

11518

100-018 SWIVEL

$

$

Not available

13

11714

200-014 COTTER PIN 2`20

$

$

Not available

14

Dixon 3240

M10X1.5X70 HHB GR8.8

$

$

Not available

15

11519

100-019 WASHER

$

$

Not available

16

11520

100-020 IDLER ARM WLDT.

$

$

Not available

17

3020

5/16STD FLAT WASHER.

$

$

Not available

18

11722

200-022 HEX BOLT M10`65

$

$

Not available

19

3057

WASHER, 3/8 STD FLAT

$

$

Not available

20

11718

200-018 HEX BOLT M10-35

$

$

Not available

21

11521

100-021 CUTTING HOUSE AS

$

$

Not available

22

11522

100-022 SPACER 6

$

$

Not available

24

11523

100-023 WASHER

$

$

Not available

25

11723

200-023 BOLT M16`1.5`245

$

$

Not available

26

11524

100-024 PIVOT HUB

$

$

Not available

27

11525

100-025 PULLEY SINGLE

$

$

Not available

28

11526

100-026 H-BUSHING

$

$

Not available

29

3019

5/16HELICAL L-WASHER

$

$

Not available

30

7372

M8X1.25X30MM HHB

$

$

Not available

31

11726

GREASE FTG (10 PACK) 200-026

$

$

Not available

32

11527

100-027 ROD END RH

$

$

Not available

33

11528

$

$

Not available

34

11529

100-029 LINK IDLER ARM

$

$

Not available

35

11530

100-030 TURN BUCKLE ROD

$

$

Not available

36

11531

100-031 SPACER 12

$

$

Not available

37

11532

100-032 LINK BUSHING

$

$

Not available

38

11727

$

$

Not available

39

11533

100-033 BELT GUIDE

$

$

Not available

40

11633

BLD 36` - WALKABOUT

$

$

Not available

41

11634

136-004 BELT 36`ENG-BLD

$

$

Not available
