Walkabout 48 - Dixon 48" Walk-Behind Mower, Belt-Drive, Kohler (2008) 36" & 48" BRAKE ASSEMBLY Parts Diagram

48" Walk-Behind Mower, Belt-Drive, Kohler

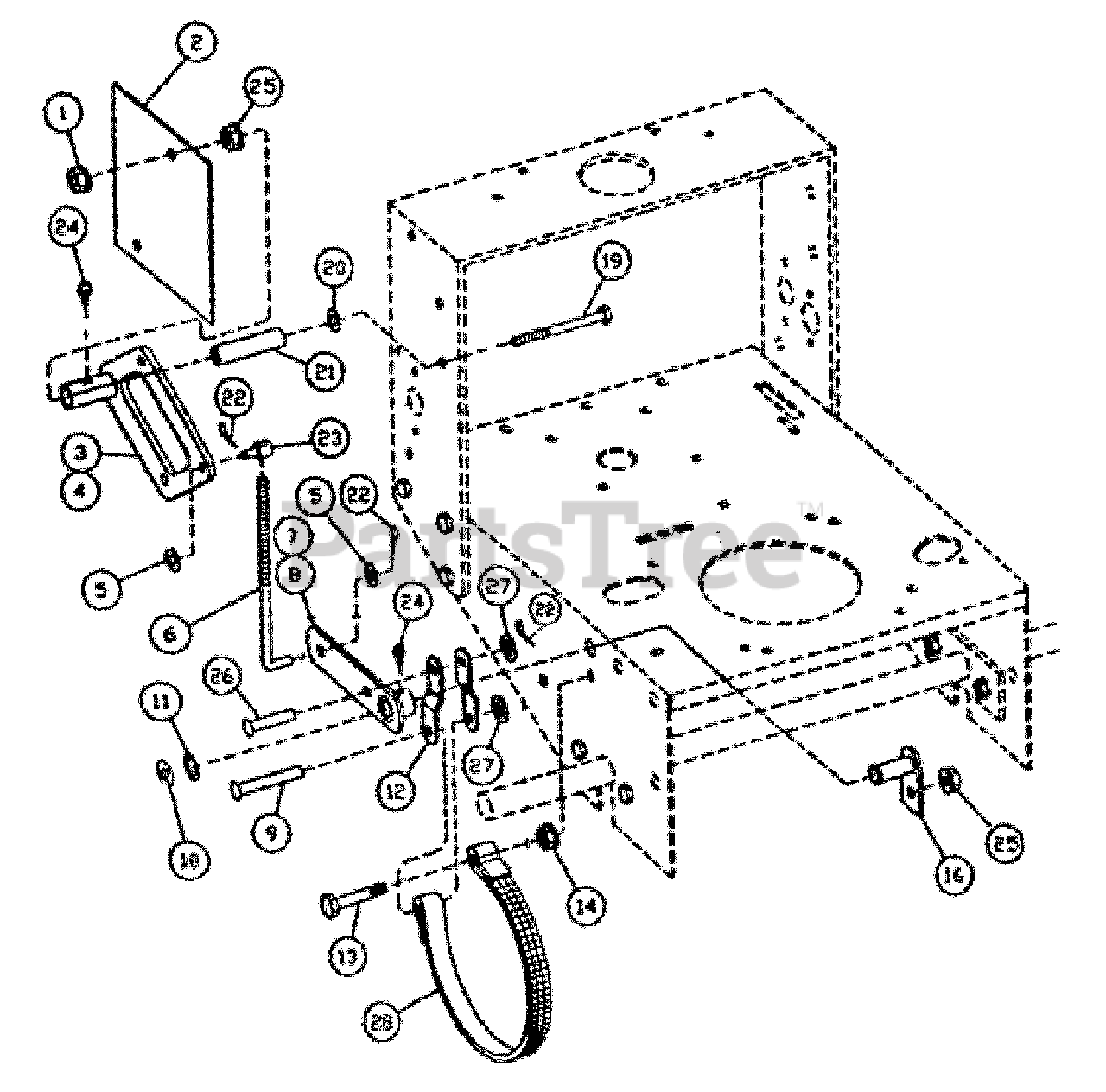

36" & 48" BRAKE ASSEMBLY Parts Diagram

  • Title

1

11701

NUT, 200-001 M10

$

$

Not available

2

11505

100-005 FENDER

$

$

Not available

3

11534

100-034 IDLER ARM RH

$

$

Not available

4

11535

100-035 IDLER ARM LH

$

$

Not available

5

3020

5/16STD FLAT WASHER.

$

$

Not available

6

11536

100-036 BRAKE ROD

$

$

Not available

7

11537

100-037 BRAKE LEVER RH

$

$

Not available

8

11538

100-038 BRAKE LEVER LH

$

$

Not available

9

11539

100-039 FLAT HEAD RIVET

$

$

Not available

10

11747

200-047 SNAP-RING -10 PACK

$

$

Not available

11

11620

100-120 PLAIN WASHER

$

$

Not available

12

11540

100-040 BRAKE LINK

$

$

Not available

13

11732

200-032 HEX BOLT M10`50

$

$

Not available

14

11716

200-016 NUT FLANGE M10

$

$

Not available

16

11541

100-041 BRAKE LVR MT.

$

$

Not available

19

11708

200-008 HEX.BOLT M10`110

$

$

Not available

20

11503

100-003 WASHER

$

$

Not available

21

11504

100-004 PIVOT TUBE

$

$

Not available

22

11714

200-014 COTTER PIN 2`20

$

$

Not available

23

11542

100-042 SWIVEL BRAKE ROD

$

$

Not available

24

11726

GREASE FTG (10 PACK) 200-026

$

$

Not available

25

11706

200-006 NYLON NUT M10

$

$

Not available

26

11543

100-043 FLAT HEAD RIVET

$

$

Not available

27

11733

200-033 PLAIN WASHER 10

$

$

Not available

28

11544

100-044 BRAKE ASM BAND

$

$

Not available
