WB15 C/A (G100) - Honda Water Pump, Made in Japan (SN: G100-2000001 - G100-2424874) WB15 RECOIL STARTER (1) Parts Diagram

Water Pump, Made in Japan

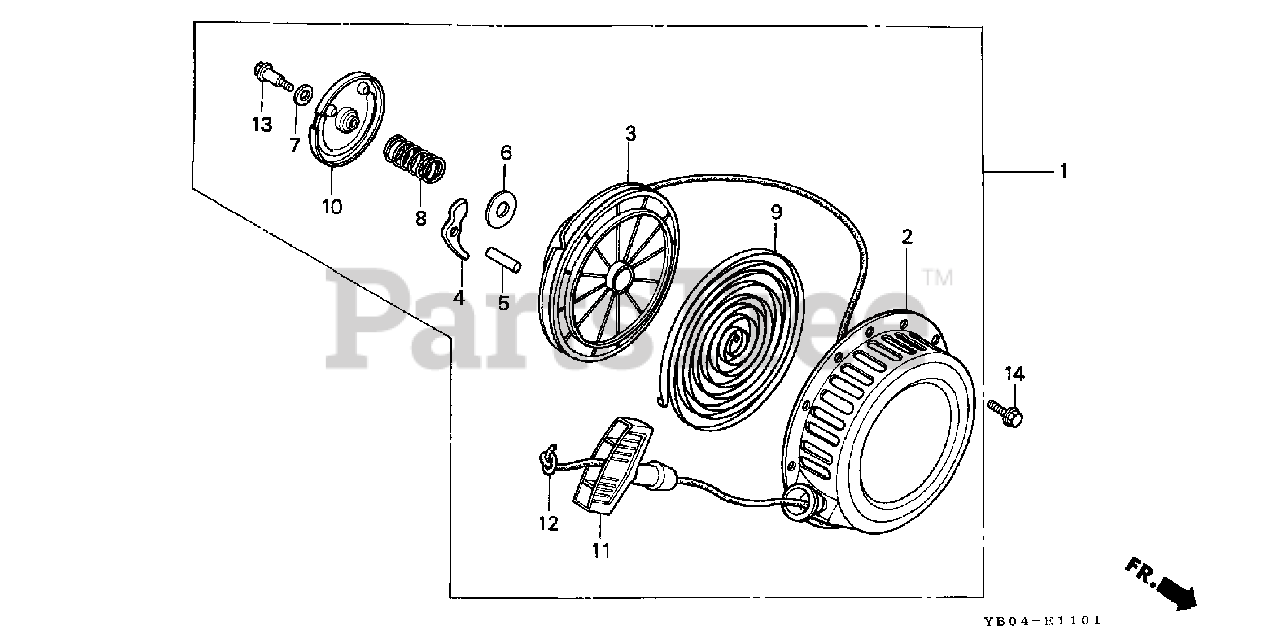

WB15 RECOIL STARTER (1) Parts Diagram

  • Title

1

Honda 28400-ZG0-003ZA

SEE PART DETAILS - SUP; STARTER, RECOIL

Note: Use up to Engine SN 2357294.

$

$

Not available

1

Honda 28400-ZG0-003ZC

SEE PART DETAILS - PRI; STARTER, RECOIL

Note: Use up to Engine SN 2357294.

$111.99

$

Usually ships in 3-6 days

0

2

Honda 28410-ZG0-003ZA

CASE, STARTER

Note: Use up to Engine SN 2357294.

$

$

Not available

3

Honda 28420-ZG0-003

SEE PART DETAILS - SUP; REEL, STARTER
(Superseded to 28421-Z1B-D10)

Note: Use up to Engine SN 2357294.

$37.99

$

Usually ships in 3-6 days

0

4

Honda 28422-ZG0-003

SEE PART DETAILS - SUP; RATCHET, STARTER
(Superseded to 28422-Z1B-D10)

Note: Use up to Engine SN 2357294.

$8.49

$

Usually ships in 3-6 days

0

5

Honda 28423-ZG0-003

SEE PART DETAILS - SUP; SHAFT, RATCHET
(Superseded to 28423-Z1B-D10)

Note: Use up to Engine SN 2357294.

$7.99

$

Usually ships in 3-6 days

0

6

Honda 28431-ZG0-003

SEE PART DETAILS - SUP; PLATE A, FRICTION
(Superseded to 28431-Z1B-D10)

Note: Use up to Engine SN 2357294.

$7.99

$

Usually ships in 3-6 days

0

7

Honda 28432-ZG0-003

SEE PART DETAILS - SUP; PLATE B, FRICTION
(Superseded to 28432-883-T20)

Note: Use up to Engine SN 2357294.

$3.49

$

In Stock, only 2 left!

0

8

Honda 28441-ZG0-003

SPRING, FRICTION

Note: Use up to Engine SN 2357294.

$5.99

$

Usually ships in 3-6 days

0

9

Honda 28442-ZG0-003

SPRING, RETURN

Note: Use up to Engine SN 2357294.

$29.99

$

Usually ships in 3-6 days

0

10

Honda 28443-ZG0-003

SEE PART DETAILS - SUP; COVER, REEL STARTER
(Superseded to 28474-Z1B-D10)

Note: Use up to Engine SN 2357294.

$5.49

$

Usually ships in 3-6 days

0

11

Honda 28461-ZG0-013

GRIP, STARTER

Note: Use up to Engine SN 2357294.

$

$

Not available

12

Honda 28462-ZG0-003

ROPE, STARTER (#4X65") (N/A: USE P/N 08540-ZG921-11)

Note: Use up to Engine SN 2357294.

$

$

Currently unavailable

13

Honda 90003-ZG0-003

BOLT, REEL COVER

Note: Use up to Engine SN 2357294.

$3.49

$

Usually ships in 3-6 days

0

14

Honda 90011-ZG0-000

BOLT, FLANGE (6X8)
(Superseded to 95701-06008-00)

Note: Use up to Engine SN 2357294.

$4.99

$

In Stock, Qty 20+

0
