WB20 T DRA (WZAL) - Honda Water Pump, Made in Thailand (SN: WZAL-1000001 - WZAL-1999999) CARBURETOR Parts Diagram

Water Pump, Made in Thailand

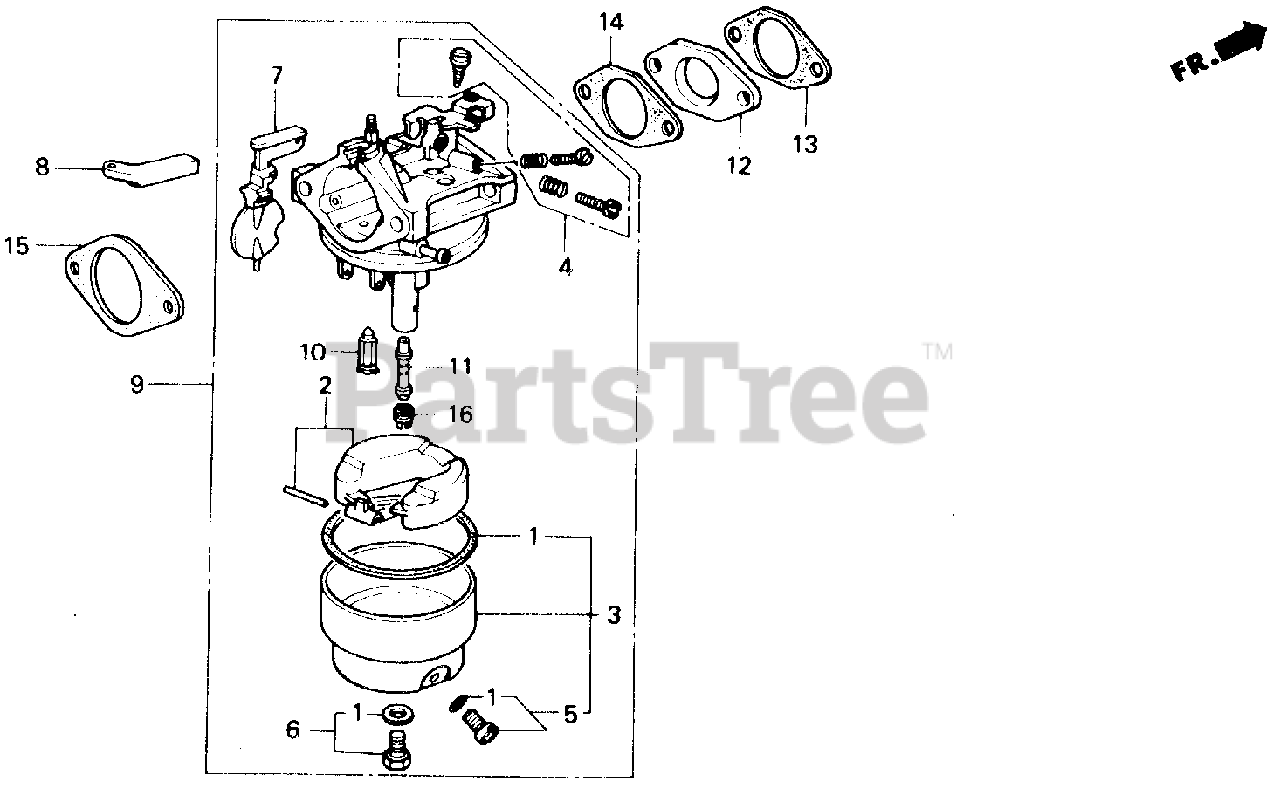

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZA1-702

GASKET SET

$22.99

$

Usually ships in 3-6 days

0

2

Honda 16013-883-005

FLOAT SET

$42.99

$

In Stock, only 2 left!

0

3

Honda 16015-887-782

CHAMBER SET, FLOAT

$37.99

$

In Stock, only 1 left!

0

4

Honda 16016-ZA1-701

SCREW SET A

$13.99

$

Usually ships in 3-6 days

0

5

Honda 16024-ZE1-811

SCREW SET, DRAIN

$11.99

$

In Stock, only 1 left!

0

6

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET
(Superseded to 16028-ZK7-S91)

$14.99

$

In Stock, only 2 left!

0

6

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$14.99

$

In Stock, only 2 left!

0

7

Honda 16044-883-015

CHOKE SET

$45.99

$

Usually ships in 3-6 days

0

8

Honda 16046-883-005

ARM, CHOKE LEVER

$14.99

$

Usually ships in 3-6 days

0

9

Honda 16100-887-T52

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BB30E A)

Note: Use from Engine SN 6122041.

$

$

Not available

9

Honda 16100-887-105

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BB28A H)

Note: Use up to Engine SN 6122040.

$103.99

$

Usually ships in 3-6 days

0

10

Honda 16155-883-005

VALVE, FLOAT

$29.99

$

In Stock, only 2 left!

0

11

Honda 16166-883-005

NOZZLE, MAIN

Note: Use up to Engine SN 6122040.

$14.99

$

Usually ships in 3-6 days

0

11

Honda 16166-887-T51

NOZZLE, MAIN

Note: Use from Engine SN 6122041.

$

$

Not available

11

Honda 16166-887-T51

NOZZLE, MAIN

Note: Use from Engine SN BB30E A.

$

$

Not available

12

Honda 16211-887-000

INSULATOR, CARBURETOR

$

$

Not available

13

Honda 16212-887-800

GASKET, INSULATOR

$2.49

$

Usually ships in 3-6 days

0

14

Honda 16221-887-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$3.99

$

In Stock, Qty 20+

0

15

Honda 16269-883-800

GASKET, AIR CLEANER

$1.99

$

In Stock, only 4 left!

0

16

Honda 99101-124-0600

JET, MAIN (#60)

$13.99

$

In Stock, only 2 left!

0

16

Honda 99101-124-0620

JET, MAIN (#62)

$12.99

$

In Stock, only 2 left!

0

16

Honda 99101-124-0650

JET, MAIN (#65)

Note: Use up to Engine SN 6122040.

$14.99

$

Usually ships in 3-6 days

0

16

Honda 99101-124-0680

JET, MAIN (#68) Use from Engine SN 6122041.

$12.99

$

In Stock, only 2 left!

0

16

Honda 99101-124-0700

JET, MAIN (#70)

Note: Use up to Engine SN BB30E A.

$12.99

$

In Stock, only 2 left!

0

16

Honda 99101-124-0700

JET, MAIN (#70)

Note: Use from Engine SN BB30E A.

$12.99

$

In Stock, only 2 left!

0

16

Honda 99101-124-0700

JET, MAIN (#70) Use from Engine SN 6122041.

$12.99

$

In Stock, only 2 left!

0

16

Honda 99101-124-0720

JET, MAIN (#72)

Note: Use from Engine SN 6122041.

$12.99

$

Usually ships in 3-6 days

0
