WB20 T DRA (WZAL) - Honda Water Pump, Made in Thailand (SN: WZAL-1000001 - WZAL-1999999) WB20T CYLINDER Parts Diagram

Water Pump, Made in Thailand

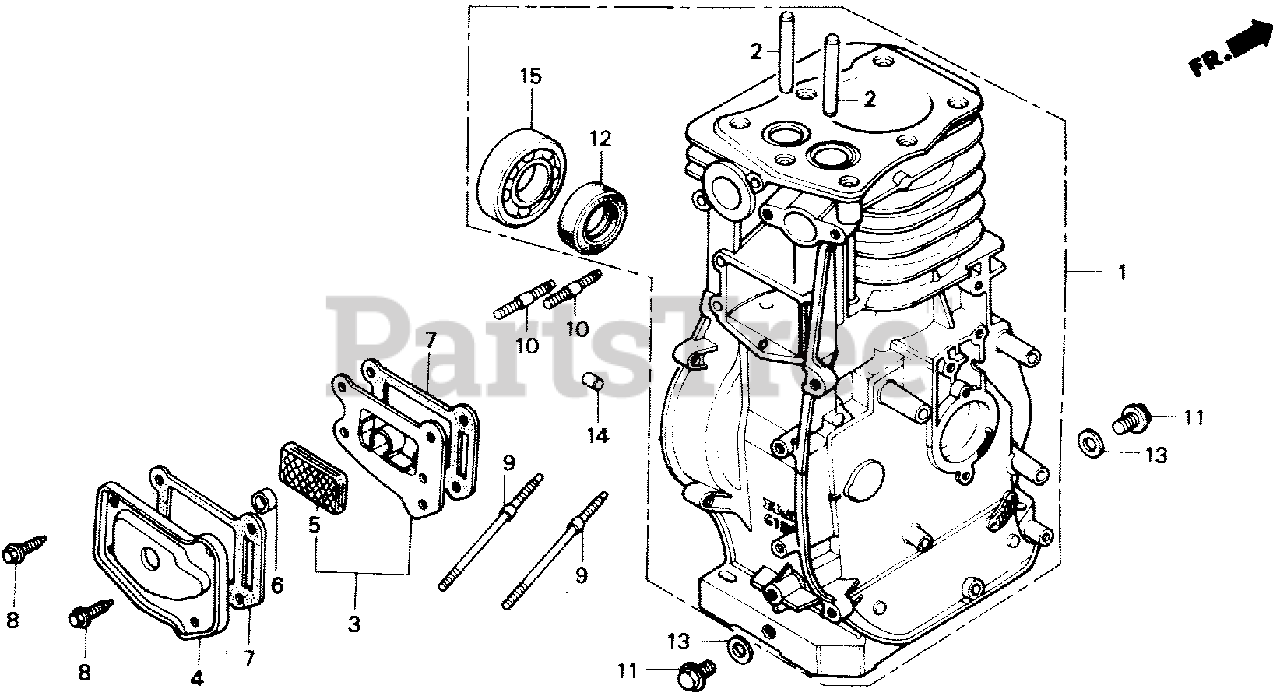

WB20T CYLINDER Parts Diagram

  • Title

1

Honda 12000-887-325

CYLINDER ASSY.

$

$

Not available

2

Honda 12133-887-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OVER SIZE)

$18.99

$

Usually ships in 3-6 days

0

3

Honda 12360-887-010

CASE, BREATHER

$

$

Not available

4

Honda 12361-887-000

COVER, TAPPET ROOM

$15.99

$

Usually ships in 3-6 days

0

5

Honda 12367-883-003

FILTER, BREATHER

$3.99

$

Usually ships in 3-6 days

0

6

Honda 12369-883-000

SEAL, BREATHER

$3.99

$

Usually ships in 3-6 days

0

7

Honda 12375-887-000

GASKET, TAPPET COVER

$3.49

$

Usually ships in 3-6 days

0

8

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

9

Honda 90043-883-681

SEE PART DETAILS - PRI; BOLT, STUD (6X89)

$6.49

$

Usually ships in 3-6 days

0

10

Honda 90047-883-000

BOLT, STUD (8X35)

$4.49

$

Usually ships in 3-6 days

0

11

Honda 90131-883-000

SEE PART DETAILS - SUP; BOLT, DRAIN PLUG (12X15)

$

$

Not available

11

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (12X15)

$4.99

$

In Stock, Qty 9

0

12

Honda 91201-Z0T-801

SEE PART DETAILS - PRI; OIL SEAL (25X41X6)

$8.99

$

In Stock, Qty 13

0

12

Honda 91202-883-005

SEE PART DETAILS - SUP; OIL SEAL (25X41X6)
(Superseded to 91201-Z0T-801)

$8.99

$

In Stock, Qty 13

0

13

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, Qty 20+

0

14

Honda 94301-08140

PIN, DOWEL (8X14)

$2.99

$

In Stock, Qty 14

0

15

Honda 96100-62050-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205)

$22.99

$

In Stock, only 2 left!

0
