WB20 X C (GX110) - Honda Water Pump, Made in Japan (SN: GX110-1000001 - GX110-9999999) CASING + IMPELLER Parts Diagram

Water Pump, Made in Japan

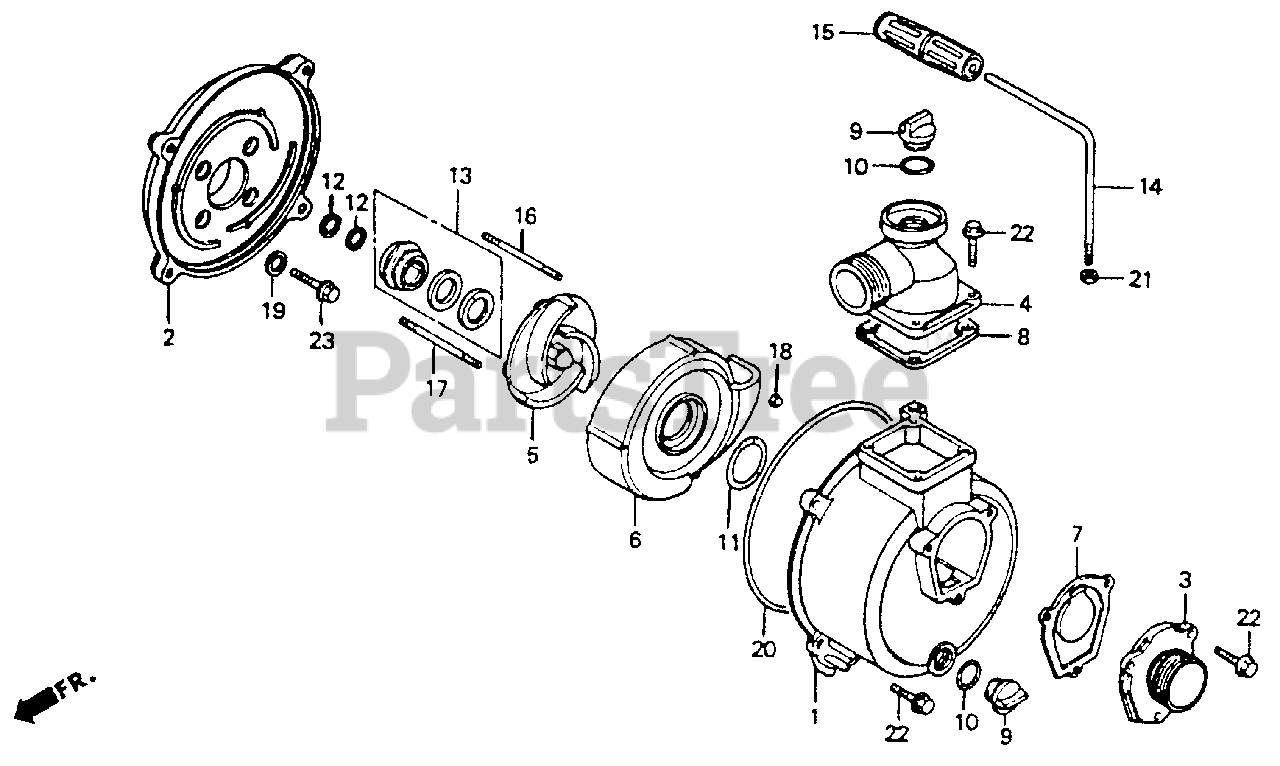

CASING + IMPELLER Parts Diagram

  • Title

1

Honda 78101-YB3-040

SEE PART DETAILS - PRI; CASING

$

$

Not available

2

Honda 781A0-YB3-010

SEE PART DETAILS - SUP; COVER, CASING
(Superseded to 781A0-YB3-020)

Note: Use up to Frame SN 1477198.

$

$

Not available

2

Honda 781A0-YB3-020

SEE PART DETAILS - PRI; COVER, CASING

$

$

Not available

3

Honda 78103-YB3-630

PIPE, INLET

$64.99

$

Usually ships in 3-6 days

0

4

Honda 78104-YB3-631

PIPE, OUTLET

$130.99

$

Usually ships in 3-6 days

0

5

Honda 78106-YB3-000

IMPELLER

$11.99

$

Usually ships in 3-6 days

0

6

Honda 78107-YB3-010

CASE, VOLUTE
(Superseded to 78107-YB3-K10)

$23.99

$

Usually ships in 3-6 days

0

7

Honda 78110-YB3-000

VALVE, IN.

$29.99

$

In Stock, only 2 left!

0

8

Honda 78114-YB3-000

GASKET, OUTLET

$12.99

$

In Stock, only 2 left!

0

9

Honda 78117-YB3-000

SEE PART DETAILS - SUP; CAP, FILLER

Note: Use up to Frame SN 1453498.

$

$

Not available

9

Honda 78117-YB7-020

SEE PART DETAILS - PRI; CAP, FILLER

$12.99

$

In Stock, only 2 left!

0

10

Honda 78118-YB0-003

RING, SEAL (B)
(Superseded to 78118-YB0-004)

$9.99

$

In Stock, Qty 16

0

11

Honda 78118-YB3-004

O-RING (49X5.7) (NOK)

$8.99

$

In Stock, only 4 left!

0

12

Honda 78122-YB3-000

SHIM, ADJUSTER

$4.49

$

In Stock, Qty 7

0

13

Honda 78130-YB4-901

SEE PART DETAILS - PRI; SEAL ASSY., MECHANICAL WATER

$101.99

$

Usually ships in 3-6 days

0

14

Honda 78206-YB3-611

HANDLE

$27.99

$

Usually ships in 3-6 days

0

15

Honda 78207-YB3-611

GRIP, HANDLE

$13.99

$

Usually ships in 3-6 days

0

16

Honda 90034-402-000

BOLT, STUD (6X50)

Note: Use from Frame SN 1253999.

$5.49

$

Usually ships in 3-6 days

0

17

Honda 90043-YB4-000

BOLT, STUD (6X50)

Note: Use from Frame SN 1253999.

$3.99

$

Usually ships in 3-6 days

0

18

Honda 90281-YB4-000

NUT, CAP (6MM)

Note: Use from Frame SN 1253999.

$2.49

$

Usually ships in 3-6 days

0

19

Honda 90474-333-000

WASHER, SEALING (8MM)

$4.99

$

In Stock, only 4 left!

0

20

Honda 91351-YB3-003

O-RING (217.5X3.5) (ARAI)

$16.99

$

In Stock, only 2 left!

0

21

Honda 94001-12000-0S

NUT, HEX. (12MM)

Note: Use up to Frame SN 1110542.

$2.49

$

In Stock, only 2 left!

0

21

Honda 94001-14000-0S

NUT, HEX. (14MM)

Note: Use from Frame SN 1110543.

$2.49

$

Usually ships in 3-6 days

0

22

Honda 95701-08025-00

BOLT, FLANGE (8X25)

$2.49

$

In Stock, Qty 5

0

23

Honda 95701-08028-00

BOLT, FLANGE (8X28)

$1.99

$

Usually ships in 3-6 days

0
