WB20 XT2 A (WABT) - Honda Water Pump, Made in Thailand (SN: WABT-2000001 - WABT-2999999) CASING + IMPELLER Parts Diagram

Water Pump, Made in Thailand

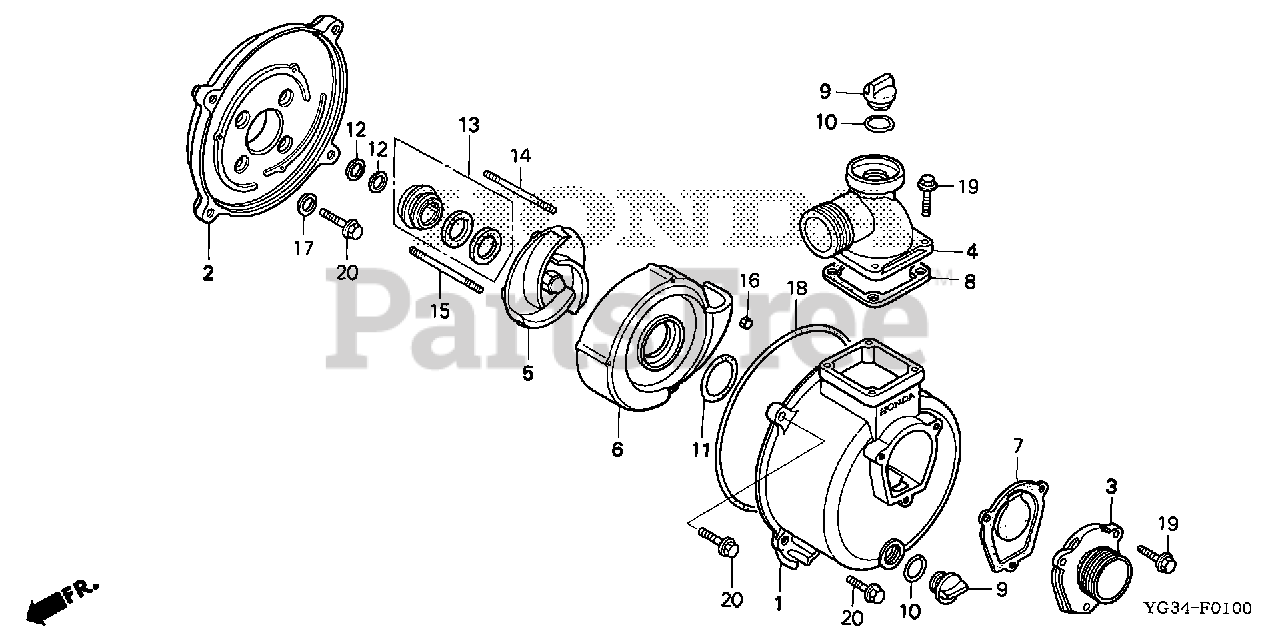

CASING + IMPELLER Parts Diagram

  • Title

1

Honda 78101-YG3-000

CASING

$50.99

$

In Stock, only 1 left!

0

2

Honda 78102-YG3-000

COVER, CASING

$31.99

$

Usually ships in 3-6 days

0

3

Honda 78103-YG3-610

INLET (NPTF)
(Superseded to 78103-YG3-305)

$18.99

$

In Stock, only 1 left!

0

4

Honda 78104-YG3-305

OUTLET (FOR U.S.A.) (NPTF)
(Superseded to 78104-YG3-610)

$

$

Not available

5

Honda 78106-YB3-000

IMPELLER

$11.99

$

Usually ships in 3-6 days

0

6

Honda 78107-YB3-K10

SEE PART DETAILS - PRI; CASE, VOLUTE

$23.99

$

Usually ships in 3-6 days

0

7

Honda 78110-YB3-000

VALVE, IN.

$29.99

$

In Stock, only 2 left!

0

8

Honda 78114-YB3-000

GASKET, OUTLET

$12.99

$

In Stock, only 2 left!

0

9

Honda 78117-YB3-K10

CAP, FILLER

$13.99

$

In Stock, only 1 left!

0

10

Honda 78118-YB0-003

SEE PART DETAILS - SUP; RING, SEAL (B)
(Superseded to 78118-YB0-004)

$9.99

$

In Stock, Qty 14

0

10

Honda 78118-YB0-004

SEE PART DETAILS - PRI; RING, SEAL (B)

$9.99

$

In Stock, Qty 14

0

11

Honda 78118-YB3-004

O-RING (49X5.7) (NOK)

$8.99

$

In Stock, only 4 left!

0

12

Honda 78122-YB3-000

SHIM, ADJUSTER

$4.49

$

In Stock, Qty 7

0

13

Honda 78130-YB4-901

SEAL, MECHANICAL

$101.99

$

Usually ships in 3-6 days

0

14

Honda 90034-402-000

BOLT, STUD (6X50)

$5.49

$

Usually ships in 3-6 days

0

15

Honda 90043-YB4-000

BOLT, STUD (6X50)

$3.99

$

Usually ships in 3-6 days

0

16

Honda 90281-YB4-000

NUT, CAP (6MM)

$2.49

$

Usually ships in 3-6 days

0

17

Honda 90474-333-000

WASHER, SEALING (8MM)

$4.99

$

In Stock, only 4 left!

0

18

Honda 91351-YB3-003

O-RING (217.5X3.5) (ARAI)

$16.99

$

In Stock, only 2 left!

0

19

Honda 95701-08025-08

BOLT, FLANGE (8X25)

$0.99

$

In Stock, only 2 left!

0

20

Honda 95701-08028-08

BOLT, FLANGE (8X28)

$2.99

$

Usually ships in 3-6 days

0
