WB20 XT3 A (WABT) - Honda Water Pump, Made in Thailand (SN: WABT-3000001 - WABT-9999999) FUEL TANK Parts Diagram

Water Pump, Made in Thailand

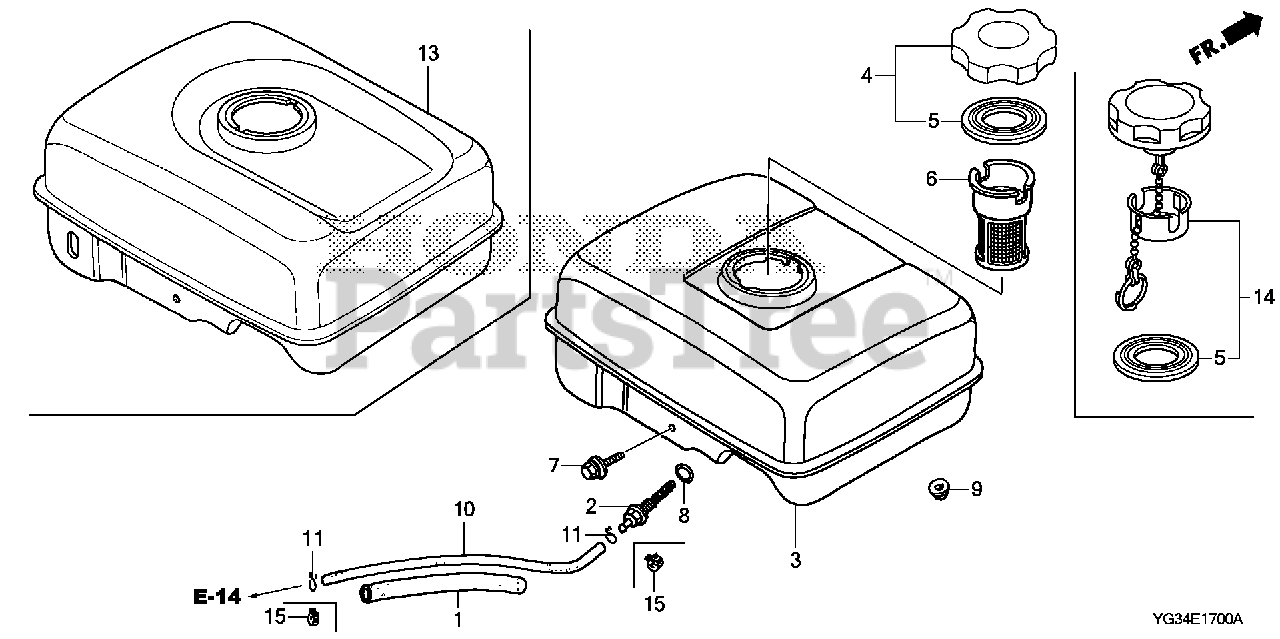

FUEL TANK Parts Diagram

  • Title

1

Honda 16854-ZH8-000

SEE PART DETAILS - PRI; RUBBER, SUPPORTER (107MM) (Honda Code 3683646).

$4.99

$

In Stock, Qty 6

0

2

Honda 16955-ZE1-010

SEE PART DETAILS - PRI; JOINT, FUEL TANK

$8.99

$

In Stock, Qty 15

0

5

Honda 17631-Z1T-800

GASKET, FUEL FILLER CAP (39X62X3) (TOUYOUSYA)

$

$

Not available

5

Honda 17631-Z0T-801

GASKET, FUEL FILLER CAP (Honda Code 7346745).

$0.99

$

In Stock, Qty 7

0

6

Honda 17672-ZE2-W01

SEE PART DETAILS - PRI; FILTER, FUEL

Note: (Optional)

$12.99

$

Usually ships in 3-6 days

0

7

Honda 90004-ZH7-003

SEE PART DETAILS - PRI; BOLT, FLANGE (6X29) (Honda Code 6779540).

$1.49

$

In Stock, Qty 8

0

8

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (14MM) (ARAI) Use up to Engine SN 2949254.

$3.99

$

In Stock, Qty 12

0

9

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

10

Honda 91424-Z4F-802

SEE PART DETAILS - PRI; TUBE, FUEL (4.5X140) (FKM)
(Superseded to 91424-Z4F-803)

$6.99

$

Usually ships in 3-6 days

0

10

Honda 91424-Z4F-803

TUBE, FUEL (4.5X140)

$6.99

$

Usually ships in 3-6 days

0

13

Honda 17510-Z4H-000ZC

TANK, FUEL *R280* (GAUGELESS) (POWER RED)

$58.99

$

Usually ships in 3-6 days

0

14

Honda 17620-Z4H-910

CAP, FUEL FILLER
(Superseded to 17620-Z4H-912)

$76.99

$

In Stock, Qty 7

0

14

Honda 17620-Z4H-912

CAP, FUEL FILLER

$76.99

$

In Stock, Qty 7

0

15

Honda 95002-40800-08

SEE PART DETAILS - PRI; CLIP, TUBE (D8) (Honda Code 0660811).

$2.99

$

In Stock, Qty 15

0
