WB30 X C (GX140) - Honda Water Pump, Made in Japan (SN: GX140-1000001 - GX140-9999999) CASING + IMPELLER Parts Diagram

Water Pump, Made in Japan

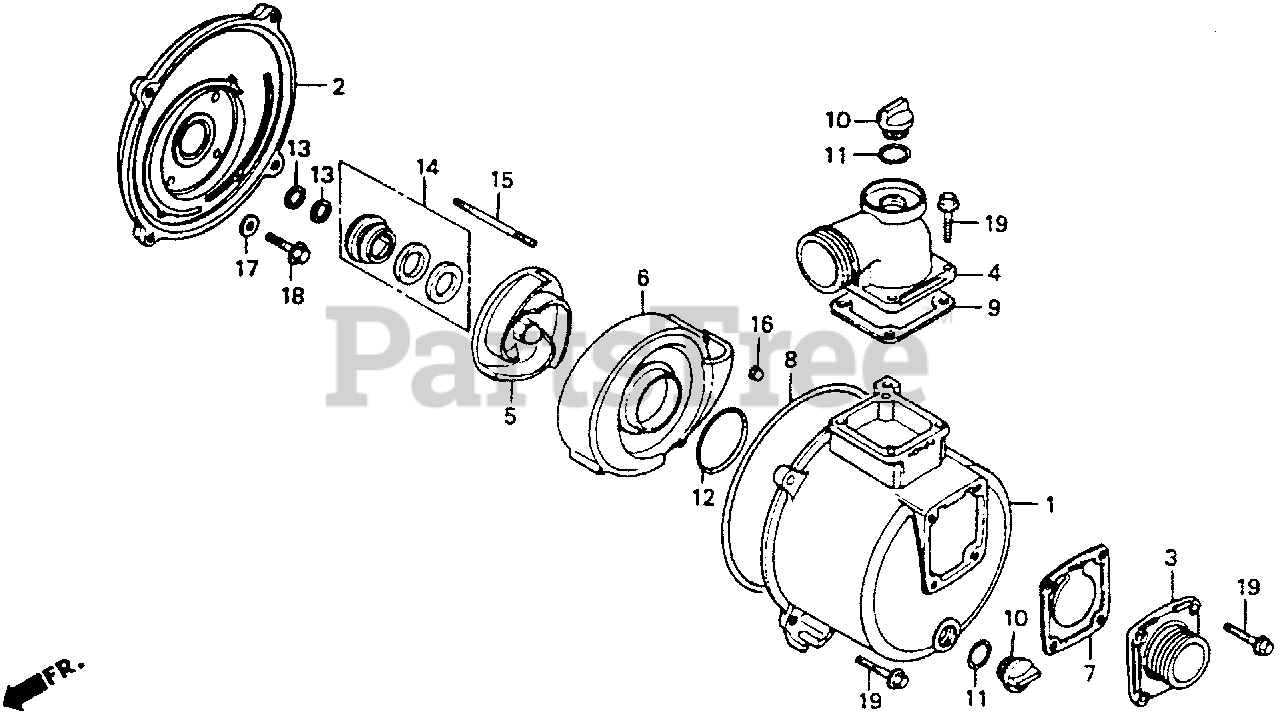

CASING + IMPELLER Parts Diagram

  • Title

1

Honda 78101-YB4-020

SEE PART DETAILS - SUP; CASING

Note: Use up to Frame SN 1662496.

$

$

Currently unavailable

1

Honda 78101-YB4-020

SEE PART DETAILS - SUP; CASING

Note: Use from Frame SN 1662497.

$

$

Currently unavailable

1

Honda 78101-YB4-030

SEE PART DETAILS - PRI; CASING

Note: Use up to Frame SN 1662496.

$401.99

$

Usually ships in 3-6 days

0

1

Honda 78101-YB4-030

SEE PART DETAILS - PRI; CASING

Note: Use from Frame SN 1662497.

$401.99

$

Usually ships in 3-6 days

0

2

Honda 781A0-YB4-020

SEE PART DETAILS - SUP; COVER, CASING
(Superseded to 78102-YG4-000)

Note: Use up to Frame SN 1388172.

$30.99

$

Usually ships in 3-6 days

0

2

Honda 781A0-YB4-030

SEE PART DETAILS - SUP; COVER, CASING

Note: Use from Frame SN 1733505.

$

$

Currently unavailable

2

Honda 781A0-YB4-030

SEE PART DETAILS - SUP; COVER, CASING

Note: Use up to Frame SN 1388172.

$

$

Currently unavailable

2

Honda 78102-YB4-020

COVER, CASING (NOT AVAILABLE)

Note: Use from Frame SN 1388173 to 1733504.

$

$

Currently unavailable

3

Honda 78103-YB4-630

PIPE, INLET (NPTF)

$

$

Not available

4

Honda 78104-YB4-631

PIPE, OUTLET (NPTF)

$

$

Not available

5

Honda 78106-YB4-000

IMPELLER

$105.99

$

Usually ships in 3-6 days

0

6

Honda 78107-YB4-020

CASE, VOLUTE
(Superseded to 78107-YB4-K10)

$172.99

$

Usually ships in 3-6 days

0

7

Honda 78110-YB4-000

VALVE, IN.

$35.99

$

In Stock, only 1 left!

0

8

Honda 78112-954-003

RING, CASING SEAL

$16.99

$

Usually ships in 3-6 days

0

9

Honda 78114-YB4-000

GASKET, OUTLET

$13.99

$

Usually ships in 3-6 days

0

10

Honda 78117-YB3-000

SEE PART DETAILS - SUP; CAP, FILLER

Note: Use up to Frame SN 1662496.

$

$

Not available

10

Honda 78117-YB7-020

SEE PART DETAILS - PRI; CAP, FILLER

Note: Use up to Frame SN 1874936.

$12.99

$

In Stock, only 1 left!

0

10

Honda 78117-YB7-020

SEE PART DETAILS - PRI; CAP, FILLER

Note: Use from Frame SN 1874937.

$12.99

$

In Stock, only 1 left!

0

11

Honda 78118-YB0-003

RING, SEAL (B)
(Superseded to 78118-YB0-004)

$9.99

$

In Stock, Qty 14

0

12

Honda 78118-YB4-004

O-RING (71X5.7)

$11.99

$

In Stock, only 1 left!

0

13

Honda 78122-YB3-000

SHIM, ADJUSTER

$4.49

$

In Stock, Qty 7

0

14

Honda 78130-YB4-901

SEE PART DETAILS - PRI; SEAL ASSY., MECHANICAL WATER

$101.99

$

Usually ships in 3-6 days

0

15

Honda 90043-YB4-000

BOLT, STUD (6X50)

Note: Use from Frame SN 1259755.

$3.99

$

Usually ships in 3-6 days

0

16

Honda 90281-YB4-000

NUT, CAP (6MM)

Note: Use from Frame SN 1259755.

$2.49

$

Usually ships in 3-6 days

0

17

Honda 90474-333-000

WASHER, SEALING (8MM)

$4.99

$

In Stock, only 4 left!

0

18

Honda 95701-08028-00

BOLT, FLANGE (8X28)

$1.99

$

Usually ships in 3-6 days

0

19

Honda 95701-10032-00

BOLT, FLANGE (10X32)

$1.99

$

Usually ships in 3-6 days

0
