WB30 XK1 C1 (GC02) - Honda Water Pump, Made in Japan (SN: GC02-2000001 - GC02-8669999) FRAME Parts Diagram

Water Pump, Made in Japan

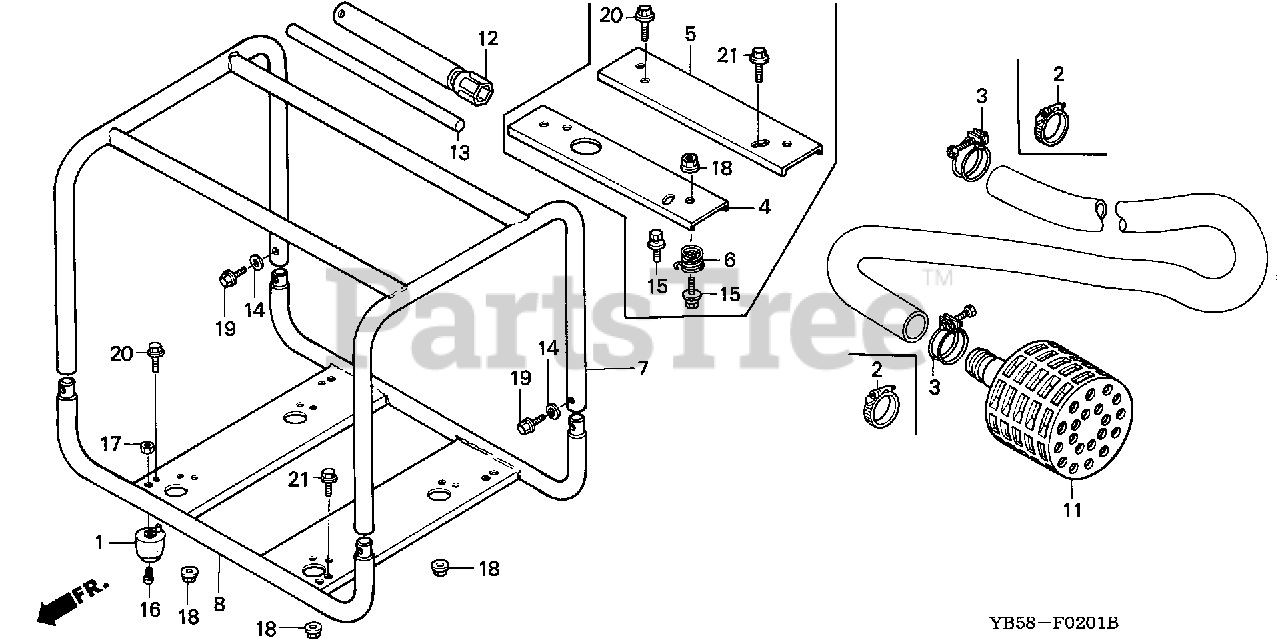

FRAME Parts Diagram

  • Title

1

Honda 60407-812-000

RUBBER (LOWER)
(Superseded to 60407-812-001)

$20.99

$

In Stock, only 1 left!

0

3

Honda 78139-YB4-000

BAND, HOSE

$13.99

$

Usually ships in 3-6 days

0

7

Honda 78206-YB4-010

FRAME (UPPER)

$250.99

$

Usually ships in 3-6 days

0

8

Honda 78207-YB4-020

FRAME (LOWER)

$293.99

$

Usually ships in 3-6 days

0

11

Honda 78325-YB4-020

SEE PART DETAILS - PRI; STRAINER (ENGINE NO.)

$41.99

$

Usually ships in 3-6 days

0

12

Honda 89218-ZE1-000

WRENCH, SPARK PLUG (ENGINE NO.)

$20.99

$

Usually ships in 3-6 days

0

13

Honda 89219-805-000

HANDLE, BOX WRENCH (ENGINE NO.)

$3.99

$

Usually ships in 3-6 days

0

14

Honda 90501-898-000

WASHER, FRAME JOINT

$2.99

$

In Stock, only 2 left!

0

16

Honda 93500-06010

SCREW, PAN (6X10)
(Superseded to 93500-06010-0A)

$1.49

$

In Stock, only 4 left!

0

16

Honda 93500-06010-0A

SCREW, PAN (6X10)

$1.49

$

In Stock, only 4 left!

0

17

Honda 94001-06000-0S

SEE PART DETAILS - SUP; NUT, HEX. (6MM)
(Superseded to 94001-06200-0S)

$1.99

$

In Stock, Qty 20+

0

17

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 20+

0

19

Honda 95701-08018-00

BOLT, FLANGE (8X18)

$2.49

$

Usually ships in 3-6 days

0

20

Honda 95701-08025-00

BOLT, FLANGE (8X25)

$2.49

$

In Stock, Qty 5

0

21

Honda 95701-08028-00

BOLT, FLANGE (8X28)

$1.99

$

Usually ships in 3-6 days

0
