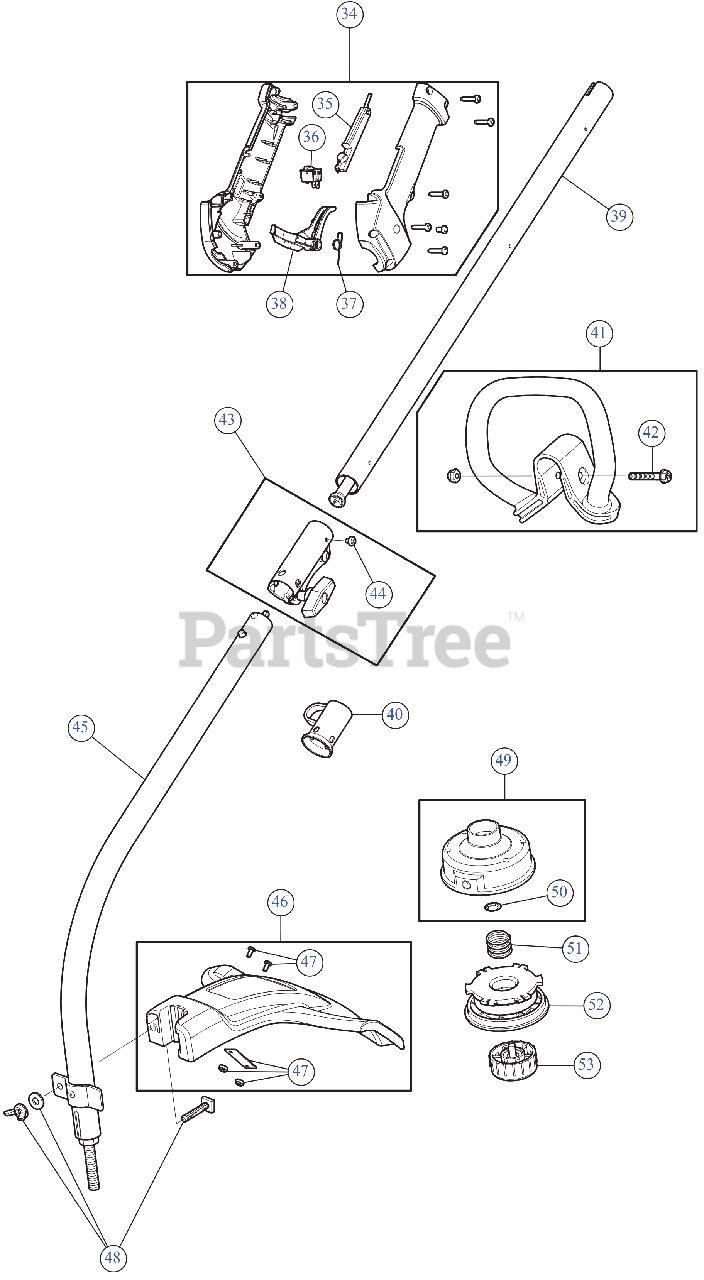

WC 205 (CMXGTAMDA25C) (41ADA25C791) - Craftsman String Trimmer General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

34

MTD 753-08344

THROTTLE GRIP ASSEMBLY

Note: (Incl. 35 - 38)

$32.99

$

In Stock, only 2 left!

0

35

MTD 731-08433C-10

LEVER LOCK OUT

$3.49

$

In Stock, Qty 13

0

36

MTD 791-182405

SW, MOMENTARY ON/O

$11.99

$

In Stock, Qty 7

0

37

MTD 753-05007

SPRING TRIG

$5.49

$

In Stock, Qty 8

0

38

MTD 731-04970B-10

THROTTLE TRIGGER

$9.99

$

In Stock, Qty 14

0

39

MTD 753-06880

BOOM ASSEMBLY UPR

$21.99

$

In Stock, Qty 20+

0

40

MTD 731-08926

HANGER

$2.99

$

In Stock, Qty 20+

0

41

MTD 753-08042

D-HANDLE

Note: (Incl. 42)

$5.49

$

In Stock, only 4 left!

0

42

MTD 753-06040

BOLT 1/4-20X1 1/2

$7.49

$

In Stock, Qty 18

0

43

MTD 753-09225

COUPLER ASSEMBLY

Note: (Incl. 44)

$7.99

$

In Stock, Qty 20+

0

44

MTD 791-182057

SCREW, 10-32X.250 TA

$4.99

$

In Stock, Qty 17

0

45

MTD 753-04508

BOOM ASSEMBLY W/FLEX DRIVE SHAFT

$85.99

$

In Stock, Qty 6

0

46

MTD 753-04283

GUARD ASSEMBLY

Note: (Incl. 47)

$54.99

$

In Stock, only 2 left!

0

47

MTD 791-180553

ASSEMBLY, BLADE

$15.99

$

In Stock, Qty 7

0

48

MTD 753-04282

BLADE GUARD MOUNTING HARDWARE

$27.99

$

In Stock, only 4 left!

0

49

MTD 753-04284

REEL:OTR W/RET

Note: (Incl. 50)

$29.99

$

In Stock, Qty 20+

0

50

MTD 791-610660

RETAINER .625 OD 2

$5.49

$

In Stock, Qty 20+

0

51

MTD 791-610317B

SPRING-SPOOL

$11.99

$

In Stock, Qty 20+

0

52

MTD 753-1155

REEL-INNER SPOOL

$24.99

$

In Stock, Qty 20+

0

53

MTD 841-013902S

BUMP KNOB (LIB RED)

$3.99

$

In Stock, only 2 left!

0
