WD30 XK1 AC1 (GC02) - Honda Water Pump, Made in Japan (SN: GC02-2000001 - GC02-8669999) FUEL TANK Parts Diagram

Water Pump, Made in Japan

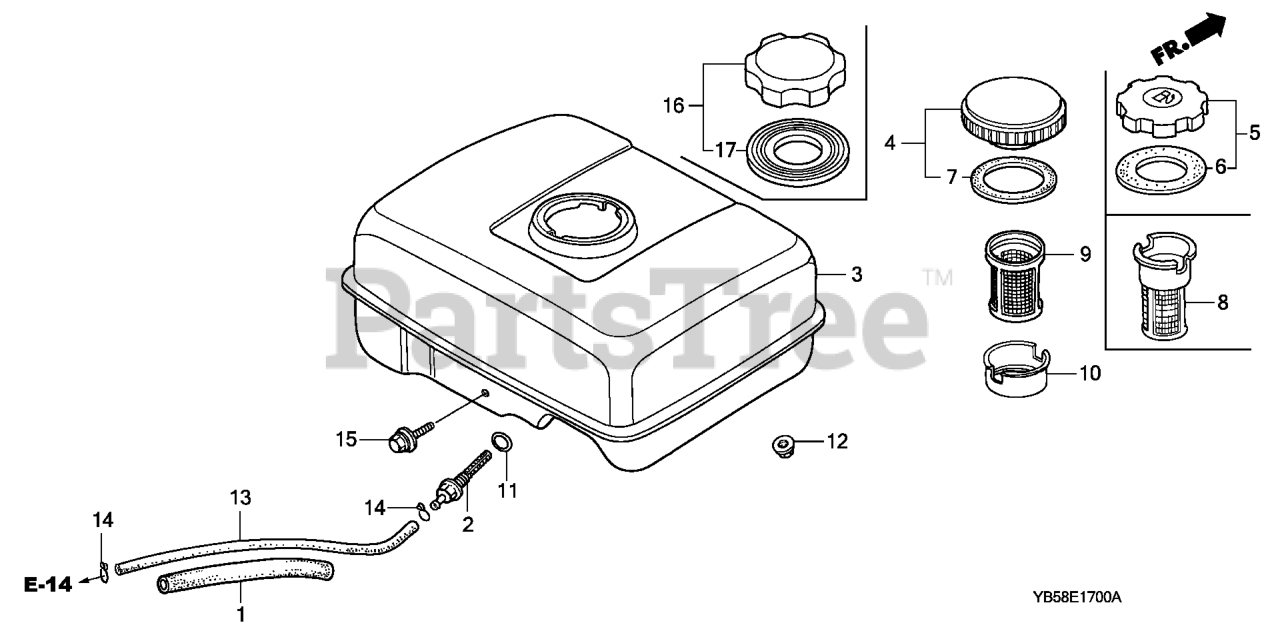

FUEL TANK Parts Diagram

  • Title

1

Honda 16854-ZH8-000

SEE PART DETAILS - PRI; RUBBER, SUPPORTER (107MM) (Honda Code 3683646).

$5.99

$

In Stock, Qty 11

0

2

Honda 16955-ZE1-010

SEE PART DETAILS - PRI; JOINT, FUEL TANK

$9.99

$

In Stock, Qty 13

0

3

Honda 17510-ZE1-030ZA

SEE PART DETAILS - PRI; TANK, FUEL *NH31* (MCKINLEY WHITE) Use up to Engine SN 3033315.

$214.99

$

In Stock, only 4 left!

0

5

Honda 17620-ZH7-023

SEE PART DETAILS - PRI; CAP, FUEL FILLER (BLACK) Use up to Engine SN 2115700.
(Superseded to 17620-Z0T-305)

Note: Use from Engine SN 4705773 to 8542059. Use up to Engine SN 4705772.

$

$

Not available

5

Honda 17620-Z0T-305

SEE PART DETAILS - PRI; CAP, FUEL FILLER (CHROME PLATED)

Note: Use from Engine SN 4705773 to 8542059. Use up to Engine SN 4705772.

$

$

Not available

5

Honda 17620-Z0T-315

CAP COMP

Note: Use from Engine SN 4705773 to 8542059. Use up to Engine SN 4705772.

$21.99

$

In Stock, Qty 6

0

6

Honda 17631-ZE1-000

GASKET, FUEL FILLER CAP (39X58X3) (NOT AVAILABLE)

Note: Use up to Engine SN 8542059.

$3.99

$

In Stock, only 3 left!

0

6

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP Use from Engine SN 1543258.
(Superseded to 17631-329-013)

Note: Use up to Engine SN 8542059.

$

$

Not available

6

Honda 17631-329-013

GASKET, FUEL FILLER CAP (39X58X3)

Note: Use up to Engine SN 8542059.

$

$

Not available

8

Honda 17672-ZE2-W01

SEE PART DETAILS - PRI; FILTER, FUEL

Note: (Optional)

$14.99

$

In Stock, only 2 left!

0

11

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (14MM) (ARAI) Use up to Engine SN 2949254.

$3.99

$

In Stock, Qty 20+

0

12

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

13

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (Honda Code 5137104). (4.5X140)

$59.99

$

In Stock, Qty 8

0

14

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

$2.99

$

In Stock, Qty 20+

0

15

Honda 90004-ZH7-003

SEE PART DETAILS - PRI; BOLT, FLANGE (6X29) (Honda Code 6779540).

$1.99

$

In Stock, only 4 left!

0

16

Honda 17620-Z0T-305

SEE PART DETAILS - PRI; CAP, FUEL FILLER (CHROME PLATED)

Note: Use from Engine SN 8542060.

$

$

Not available

16

Honda 17620-Z0T-315

CAP COMP

Note: Use from Engine SN 8542060.

$21.99

$

In Stock, Qty 6

0

17

Honda 17631-Z0T-812

GASKET, FUEL FILLER CAP (39X62X3) (TOUYOUSYA)
(Superseded to 17631-Z0T-813)

Note: Use from Engine SN 8542060.

$3.99

$

In Stock, only 2 left!

0
