WDP30 X A (WZCA) - Honda Water Pump, Made in Japan (SN: WZCA-6000001 - WZCA-6100000) AIR CLEANER Parts Diagram

Water Pump, Made in Japan

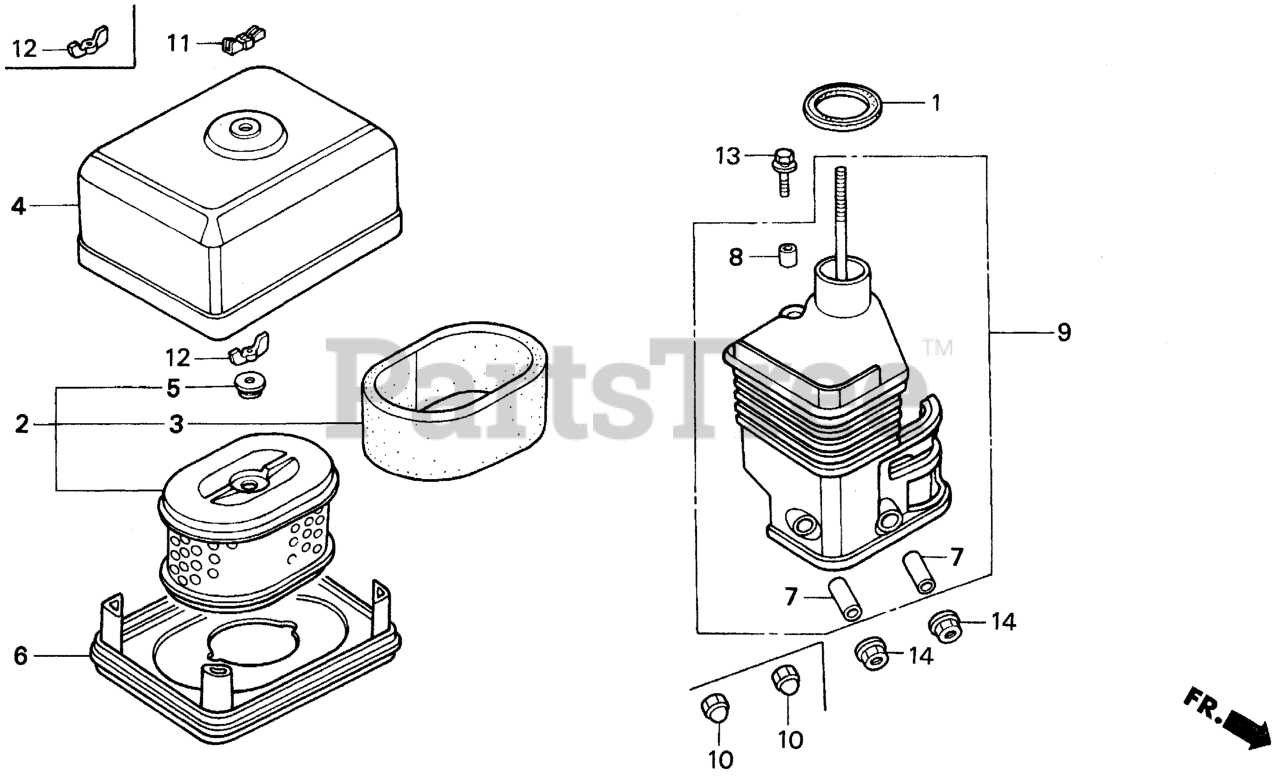

AIR CLEANER Parts Diagram

  • Title

1

Honda 16271-ZE1-000

GASKET, ELBOW (Honda Code 1427194).

$4.99

$

In Stock, Qty 20+

0

2

Honda 17210-ZE0-505

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER (DUAL) (Honda Code 5273032).

$13.99

$

In Stock, Qty 13

0

3

Honda 17218-ZE0-821

SEE PART DETAILS - SUP; FILTER (OUTER) (Honda Code 2535011).

$11.99

$

In Stock, only 3 left!

0

4

Honda 17230-ZE0-820

COVER, AIR CLEANER (DUAL) (Honda Code 1540806).

$44.99

$

In Stock, only 1 left!

0

5

Honda 17232-891-000

GROMMET, AIR CLEANER (Honda Code 0999763).

$5.99

$

In Stock, Qty 11

0

7

Honda 17238-ZE0-010

COLLAR, AIR CLEANER (Honda Code 2535037).

$4.99

$

Usually ships in 3-6 days

0

8

Honda 17239-ZE1-000

COLLAR B, AIR CLEANER (Honda Code 1427533).

$4.99

$

In Stock, Qty 9

0

9

Honda 17410-ZE0-040

SEE PART DETAILS - PRI; ELBOW, AIR CLEANER

$37.99

$

In Stock, only 2 left!

0

10

Honda 90201-415-000

NUT, CAP (6MM) (Honda Code 0670729).

$2.99

$

In Stock, only 2 left!

0

11

Honda 90203-ZA0-800

WINGNUT (6MM) (Honda Code 1742238).

$4.49

$

In Stock, only 1 left!

0

12

Honda 90325-044-000

SEE PART DETAILS - PRI; WINGNUT, TOOL BOX SETTING (Honda Code 0127720).

$5.49

$

In Stock, Qty 16

0

13

Honda 93404-06020-08

SEE PART DETAILS - PRI; BOLT-WASHER (6X20)

Note: Use up to Engine SN 2519854.

$2.49

$

In Stock, only 3 left!

0

13

Honda 95701-06020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X20) (Honda Code 2105815).

Note: Use from Engine SN 2519855.

$2.49

$

In Stock, Qty 6

0

14

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0
