WE 10L36 A - Weed Eater Lawn Tractor (1993) TRANSAXLE Parts Diagram

Lawn Tractor

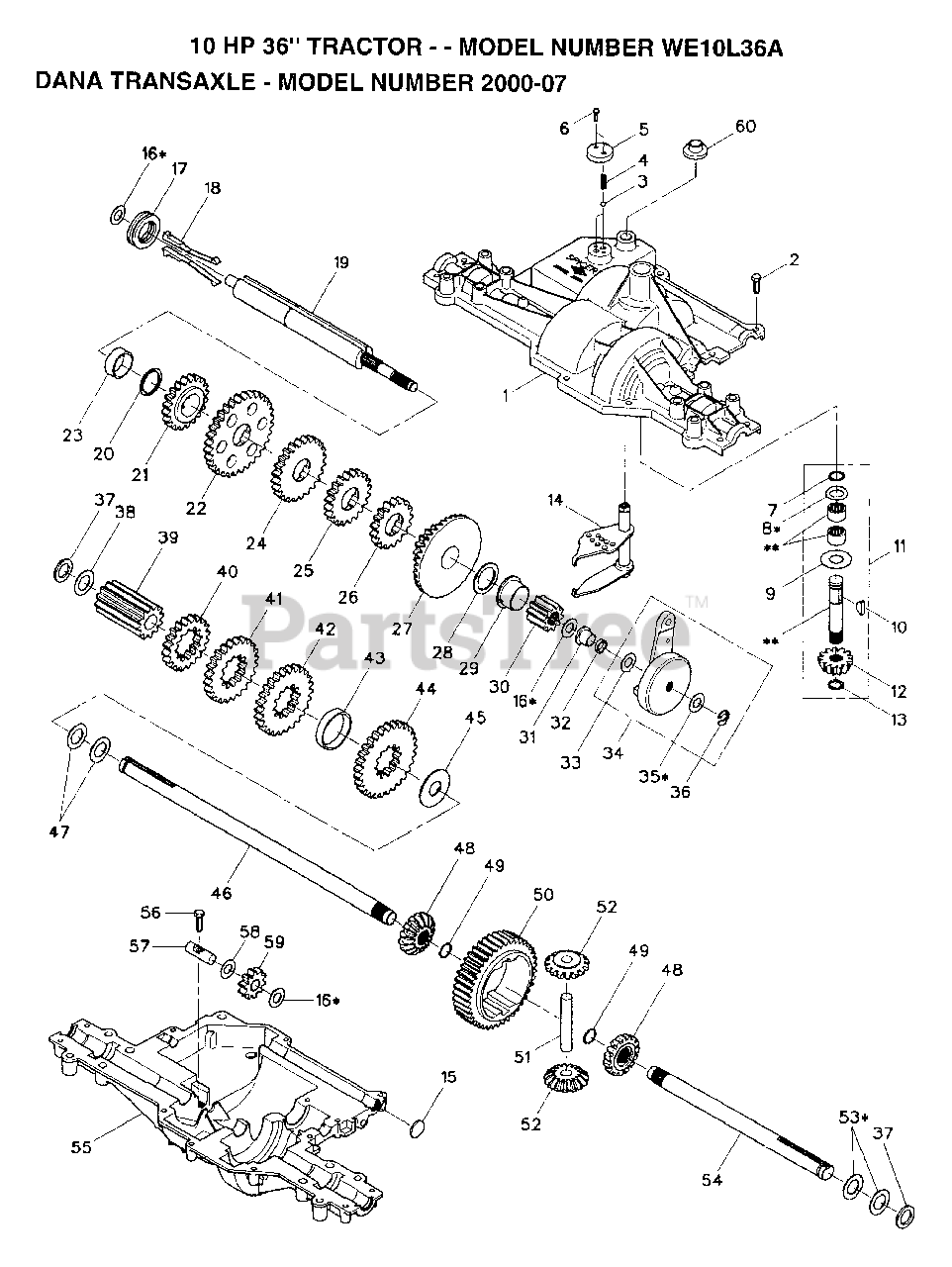

TRANSAXLE Parts Diagram

  • Title

1

Electrolux/AYP 5151-B

HOUSING, UPPER

$

$

Not available

2

Electrolux/AYP 1919

SCREW

$

$

Not available

3

Electrolux/AYP 5112

BALL, DETENT

$

$

Not available

4

Electrolux/AYP 5185

SPRING, DETENT

$

$

Not available

5

Electrolux/AYP 5184

COVER, DETENT

$

$

Not available

6

Electrolux/AYP 3035

SCREW

$

$

Not available

7

Electrolux/AYP 1099

RING RETAINING

$

$

Not available

8

Electrolux/AYP 4689

ASSY, KIT, SHIM .625 SHAFT

$

$

Not available

9

Electrolux/AYP 3876

WASHER, PLAIN .632 X 1.38 X .046

$

$

Not available

10

Electrolux/AYP 1374

KEY WOODRUFF #9

$

$

Not available

11

Electrolux/AYP 4687

ASSY, KIT, INPUT SHAFT

$

$

Not available

12

Electrolux/AYP 3936

PINION, BEVEL

$

$

Not available

13

Electrolux/AYP 3656

RING, RETAINING

$

$

Not available

14

Electrolux/AYP 4623

ASSY, SHIFTER

$

$

Not available

15

Electrolux/AYP 5196

SEAL

$

$

Not available

16

Electrolux/AYP 4690

ASSY, KIT, SHIM

$

$

Not available

17

Electrolux/AYP 3631

COLLAR CLUTCH

$

$

Not available

18

Electrolux/AYP 4688

ASSY, KIT, CLUTCH KEYS

$

$

Not available

19

Electrolux/AYP 5165

SHAFT, DRIVE

$

$

Not available

20

Electrolux/AYP 3627

RING, RETAINING

$

$

Not available

21

Electrolux/AYP 5155

GEAR, SPUR, 20T

$

$

Not available

22

Electrolux/AYP 5154

GEAR, SPUR, 32T

$

$

Not available

23

Electrolux/AYP 5239

SPACER

$

$

Not available

24

Electrolux/AYP 5152

GEAR, SPUR, 24T

$

$

Not available

25

Electrolux/AYP 5149

GEAR, SPUR, 20T

$

$

Not available

26

Electrolux/AYP 5148

GEAR, SPUR, 17T

$

$

Not available

27

Electrolux/AYP 5238

GEAR, BEVEL, 39T & SPUR 15T

$

$

Not available

28

Electrolux/AYP 5201

WASHER

$

$

Not available

29

Electrolux/AYP 5183

BEARING

$

$

Not available

30

Electrolux/AYP 5180

GEAR, SPUR, 10T

$

$

Not available

31

Electrolux/AYP 5182

BEARING

$

$

Not available

32

Electrolux/AYP 5258

SEAL

$

$

Not available

33

Electrolux/AYP 3887

WASHER PLAIN

$

$

Not available

34

Electrolux/AYP 4728

ASSY, KIT, BRAKE CONE

$

$

Not available

35

Electrolux/AYP 4692

ASSY, KIT, SHIM

$

$

Not available

36

Electrolux/AYP 5251

CLIP RING

$

$

Not available

37

Electrolux/AYP 5130

WASHER, NEOPRENE

$

$

Not available

38

Electrolux/AYP 3180

WASHER PLAIN

$

$

Not available

39

Electrolux/AYP 5160

GEAR, SPUR, 12T

$

$

Not available

40

Electrolux/AYP 3983

GEAR, SPUR, 20T

$

$

Not available

41

Electrolux/AYP 5163

GEAR, SPUR, 24T

$

$

Not available

42

Electrolux/AYP 5162

GEAR, SPUR, 26T

$

$

Not available

43

Electrolux/AYP 5240

SPACER

$

$

Not available

44

Electrolux/AYP 5161

GEAR, SPUR, 29T

$

$

Not available

45

Electrolux/AYP 3955

WASHER

$

$

Not available

46

Electrolux/AYP 5221

AXLE

$

$

Not available

47

Electrolux/AYP 3184

WASHER, PLAIN .758 X 1.25 X .031

$

$

Not available

48

Electrolux/AYP 3780

GEAR, MITER, 15 TEETH

$

$

Not available

49

Electrolux/AYP 3656

RING, RETAINING

$

$

Not available

50

Electrolux/AYP 5181

GEAR, SPUR, 41T

$

$

Not available

51

Electrolux/AYP 3919

SHAFT, CROSS

$

$

Not available

52

Electrolux/AYP 3781

GEAR, MITER, 15 TEETH

$

$

Not available

53

Electrolux/AYP 4691

ASSY, KIT, SHIM .750 SHAFT

$

$

Not available

54

Electrolux/AYP 5222

AXLE

$

$

Not available

55

Electrolux/AYP 5150-A

HOUSING, LOWER

$

$

Not available

56

Electrolux/AYP 3396

SCREW 1/4-20 X .875

$

$

Not available

57

Electrolux/AYP 3987

SHAFT, IDLER

$

$

Not available

58

Electrolux/AYP 3888

WASHER PLAIN

$

$

Not available

59

Electrolux/AYP 5293

GEAR, SPUR, 10T

$

$

Not available

60

Electrolux/AYP 5024

BOOT, SHIFTER

$

$

Not available

61

Electrolux/AYP 4300

GREASE

$

$

Not available
