WE 12542 A - Weed Eater Lawn Tractor (1997) MOWER LIFT Parts Diagram

Lawn Tractor

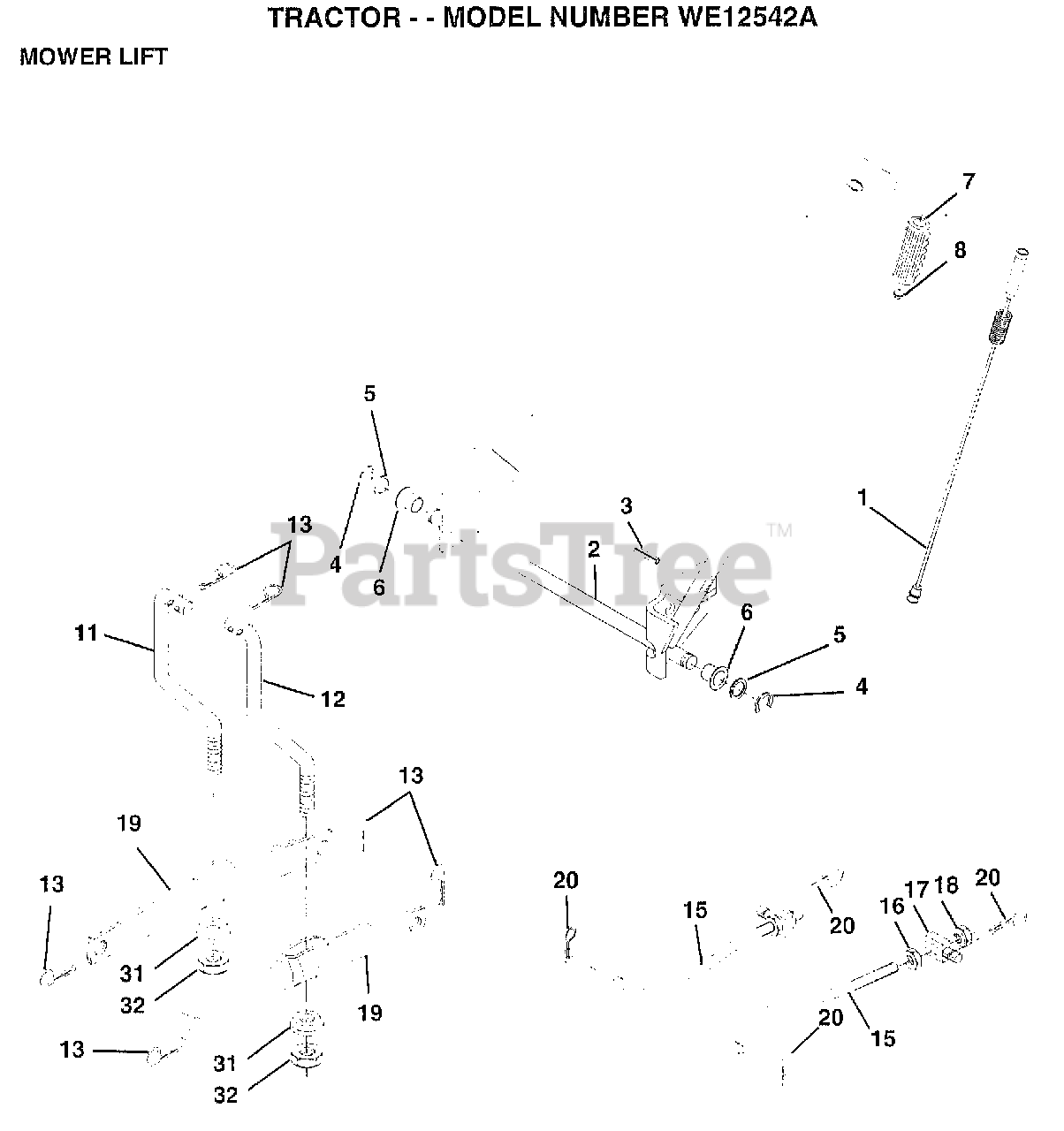

MOWER LIFT Parts Diagram

  • Title

1

Electrolux/AYP 159460

WIRE ASM W.SPRING
(Superseded to 532159460)

$28.99

$

In Stock, only 2 left!

0

2

Electrolux/AYP 149471

SHAFT ASM LIFT RH

$

$

Not available

3

Electrolux/AYP 105767X

PIN-GROOVE LT
(Superseded to 532105767)

$5.99

$

In Stock, only 2 left!

0

4

Electrolux/AYP 12000002

SUB= 2225J

$

$

Not available

5

Electrolux/AYP 19211621

WASHER
(Superseded to 819211621)

$5.99

$

In Stock, only 2 left!

0

6

Electrolux/AYP 120183X

NYLON BEARING
(Superseded to 532120183)

$6.99

$

In Stock, Qty 17

0

7

Electrolux/AYP 109413X

GRIP
(Superseded to 532109413)

$7.99

$

In Stock, Qty 9

0

8

Electrolux/AYP 124526X

SUB= 125925X

$

$

Not available

11

Electrolux/AYP 139865

SUB= 918139865
(Superseded to 532151141)

$22.99

$

In Stock, only 1 left!

0

12

Murray 139866

SUB= 151140
(Superseded to 532145536)

$28.99

$

In Stock, only 2 left!

0

13

Murray 4939M

SUB= 85902

$

$

Not available

15

Electrolux/AYP 127218

LINK.FRONT
(Superseded to 532127218)

$20.99

$

In Stock, only 2 left!

0

16

Electrolux/AYP 73350800

NUT
(Superseded to 596433401)

$3.49

$

In Stock, Qty 8

0

17

Electrolux/AYP 130171

TRUNION
(Superseded to 532175689)

$

$

Not available

18

Electrolux/AYP 73800800

NUT.LK.W/WSH.1/2.
(Superseded to 596433401)

$3.49

$

In Stock, Qty 8

0

19

Electrolux/AYP 139868

ARM SUSP REAR
(Superseded to 532139868)

$

$

Not available

20

REFER TO IMAGE

$

$

Not available

31

Electrolux/AYP 140302

BEARING PVT LH
(Superseded to 532169865)

$

$

Not available

32

Electrolux/AYP 73540600

NUT.CROWNLOCK.3/8
(Superseded to 873680600)

$

$

Not available
