WE 12R38 A - Weed Eater Lawn Tractor (1993) FENDER AND CHASSIS Parts Diagram

Lawn Tractor

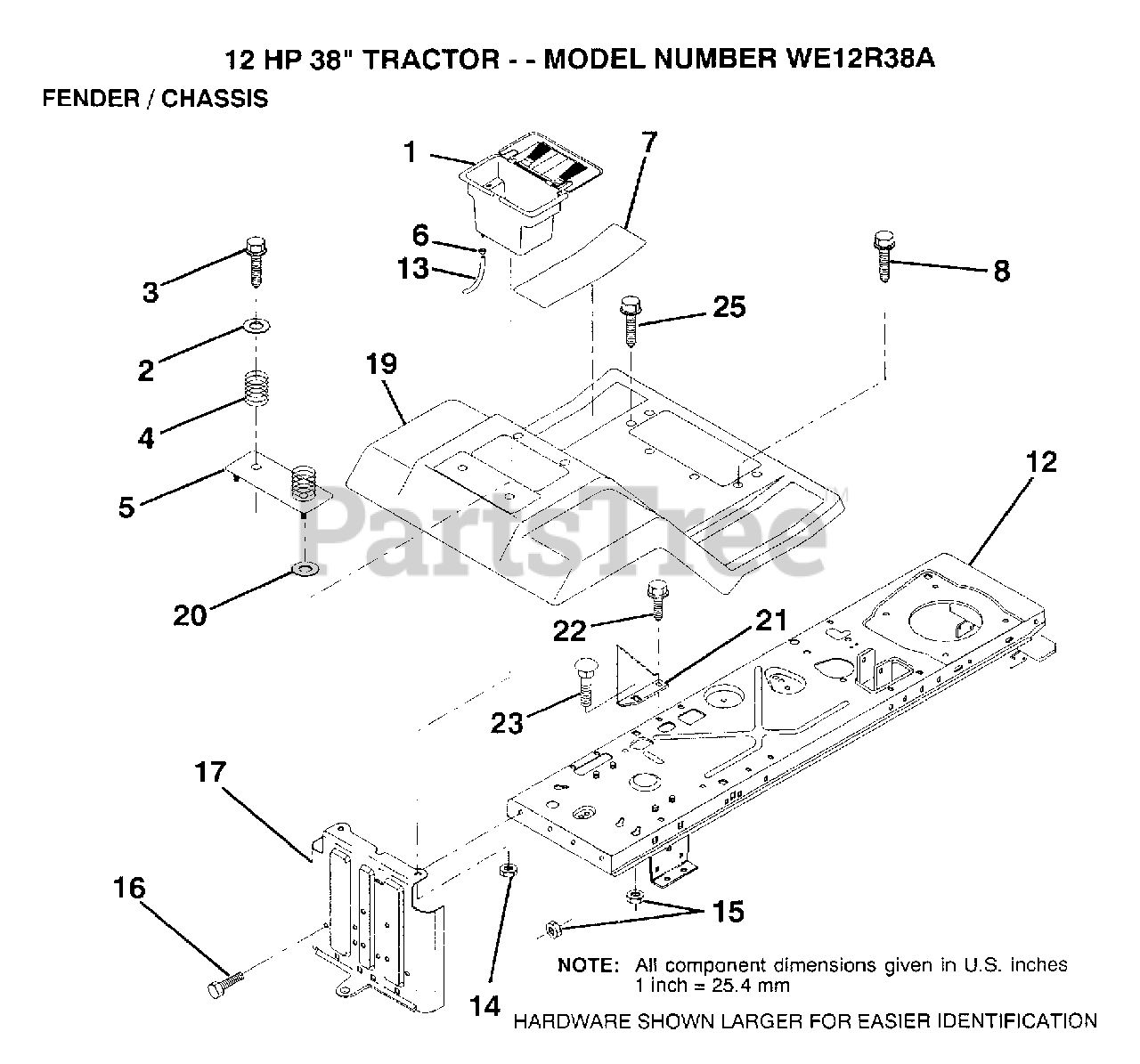

FENDER AND CHASSIS Parts Diagram

  • Title

1

Electrolux/AYP 129965

SUB= 156417

$

$

Not available

2

Electrolux/AYP 19132012

WASHER
(Superseded to 819132012)

$

$

Not available

3

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

4

Electrolux/AYP 124181X

SPRING COMPRESSIO
(Superseded to 587613301)

$7.49

$

In Stock, Qty 20+

0

5

Electrolux/AYP 127115X419

"PLATE, BATTERY"
(Superseded to 583672901)

$

$

Not available

6

Electrolux/AYP 109596X

HOSE CLAMP T
(Superseded to 532109596)

$

$

Not available

7

Electrolux/AYP 124144X

PAD FOOTREST
(Superseded to 134214)

$

$

Not available

8

Electrolux/AYP 17490512

SCREW
(Superseded to 583607701)

$3.49

$

In Stock, only 2 left!

0

12

Electrolux/AYP 137097

SUB= 139893
(Superseded to 532137097)

$

$

Not available

13

Electrolux/AYP 109238X

TUBE T
(Superseded to 532105687)

$

$

Not available

14

Murray 73510400

NUT
(Superseded to 873640400)

$

$

Not available

15

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

16

Electrolux/AYP 74760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 17

0

17

Electrolux/AYP 127880

DRAWBAR
(Superseded to 539127880)

$

$

Not available

19

Electrolux/AYP 132652X419

SUB= 140958X419

$

$

Not available

20

Electrolux/AYP 19091413

WASHER

$

$

Not available

21

Electrolux/AYP 132562

SUB= 140297

$

$

Not available

22

Electrolux/AYP 17490508

SCREW LT
(Superseded to 817490508)

$

$

Not available

23

Electrolux/AYP 72110506

SUB= 72270506
(Superseded to 872110506)

$7.49

$

In Stock, only 2 left!

0

25

Electrolux/AYP 17490516

SCREW TI
(Superseded to 817490516)

$

$

Not available
