WE 145H42 B - Weed Eater Lawn Tractor (1997)

Lawn Tractor

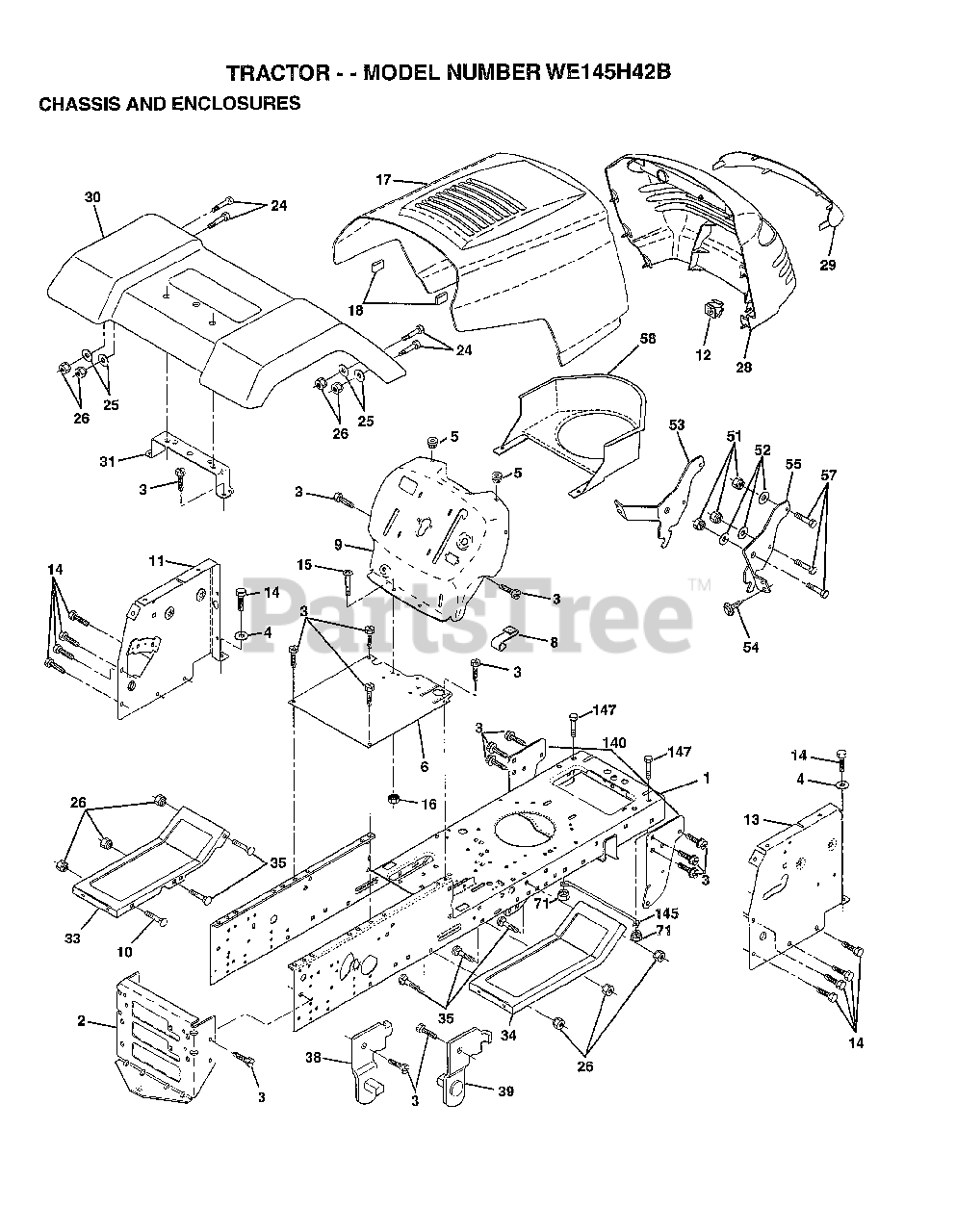

WE 145H42 B - Weed Eater Lawn Tractor (1997) > Parts Diagrams (12) > CHASSIS AND ENCLOSURES

  • Title
159530

1

CHASSIS ASM

Part# 159530

OEM Warranty Repair Part for Electrolux/AYP

Not available

140356

2

SUB= 145009

Part# 140356

OEM Warranty Repair Part for Electrolux/AYP

Not available

17490612

3

SCREW

Part# 17490612 (Superseded to 817490612)

OEM Warranty Repair Part for Electrolux/AYP

Not available

19131216

4

WASHER

Part# 19131216 (Superseded to 819131216)

OEM Warranty Repair Part for Electrolux/AYP

Not available

155272

5

BUMPER-HOOD/DASH

Part# 155272 (Superseded to 532155272)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

155923

6

SADDLE

Part# 155923 (Superseded to 532155923)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $11.17

155138

8

CLIP.RETAINER

Part# 155138 (Superseded to 532155138)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $3.34

147627X011

9

DASH.SILKSCREENED

Part# 147627X011

OEM Warranty Repair Part for Electrolux/AYP

Not available

72140608

10

SUB= 72110608

Part# 72140608

OEM Warranty Repair Part for Murray

Not available

155927

11

"PANEL-DASH,LH"

Part# 155927 (Superseded to 532155927)

OEM Warranty Repair Part for Electrolux/AYP

Not available

145660

12

CLIP.TINNERMAN

Part# 145660 (Superseded to 532145660)

OEM Warranty Repair Part for Electrolux/AYP

Not available

155934X010

13

SUB= 169117X010

Part# 155934X010 (Superseded to 532157262)

OEM Warranty Repair Part for Electrolux/AYP

Not available

17490608

14

SCREW LT

Part# 17490608 (Superseded to 817490608)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

74180512

15

SCREW

Part# 74180512 (Superseded to 874180512)

OEM Warranty Repair Part for Electrolux/AYP

Not available

73510500

16

NUT

Part# 73510500

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $3.25

159639X550

17

HOOD.STEEL.ASSY

Part# 159639X550

OEM Warranty Repair Part for Electrolux/AYP

Not available

126398X

18

BUMPER HOOD

Part# 126398X

OEM Warranty Repair Part for Electrolux/AYP

Not available

74780616

24

BOLT

Part# 74780616 (Superseded to 874780616)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

19131312

25

WASHER

Part# 19131312

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $5.81

73800600

26

NUT

Part# 73800600

OEM Warranty Repair Part for Electrolux/AYP

Not available

157373

28

GRILLE-MS428

Part# 157373 (Superseded to 532157373)

OEM Warranty Repair Part for Electrolux/AYP

Not available

140273

29

LENS GRILLE

Part# 140273

OEM Warranty Repair Part for Electrolux/AYP

Not available

140001X550

30

FENDER PNT

Part# 140001X550

OEM Warranty Repair Part for Electrolux/AYP

Not available

136619

31

BRKT FENDER

Part# 136619 (Superseded to 532136619)

OEM Warranty Repair Part for Electrolux/AYP

Not available

105476X550

33

FOOTREST.LH.PERF.

Part# 105476X550

OEM Warranty Repair Part for Electrolux/AYP

Not available

105475X550

34

FOOTREST.RH.PERF.

Part# 105475X550

OEM Warranty Repair Part for Electrolux/AYP

Not available

72110606

35

BOLT

Part# 72110606 (Superseded to 872110606)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $3.34

139886

38

BRACKET ASM LH

Part# 139886 (Superseded to 532139886)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $6.70

139887

39

BRACKET ASM RH

Part# 139887 (Superseded to 532139887)

OEM Warranty Repair Part for Electrolux/AYP

Not available

73800400

51

NUT

Part# 73800400 (Superseded to 873800400)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $3.01

19091416

52

WASHER

Part# 19091416 (Superseded to 819091416)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

144697

53

BRACKET.GRILLE.LH

Part# 144697 (Superseded to 532144697)

OEM Warranty Repair Part for Electrolux/AYP

Not available

17030814

54

SUB= 91817030814

Part# 17030814 (Superseded to 817030814)

OEM Warranty Repair Part for Electrolux/AYP

Not available

144696

55

BRACKET.GRILLE.RH

Part# 144696 (Superseded to 532144696)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

74780412

57

SUB= 74780414

Part# 74780412 (Superseded to 874780412)

OEM Warranty Repair Part for Electrolux/AYP

Not available

150127

58

AIR DUCT

Part# 150127 (Superseded to 532150127)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $15.64

73680400

71

SUB= 73690400

Part# 73680400 (Superseded to 873680400)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $3.01

158418

140

BRKT SUSPENSION

Part# 158418 (Superseded to 532158418)

OEM Warranty Repair Part for Electrolux/AYP

Not available

156524

145

"ROD POVOT,CHASSIS"

Part# 156524 (Superseded to 532156524)

OEM Warranty Repair Part for Electrolux/AYP

Not available

74760412

147

BOLT LT

Part# 74760412 (Superseded to 874760412)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

5479J

PLUG BUTTON T

Part# 5479J (Superseded to 532005479)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $3.34
