WE 145H42 B - Weed Eater Lawn Tractor (1997)

Lawn Tractor

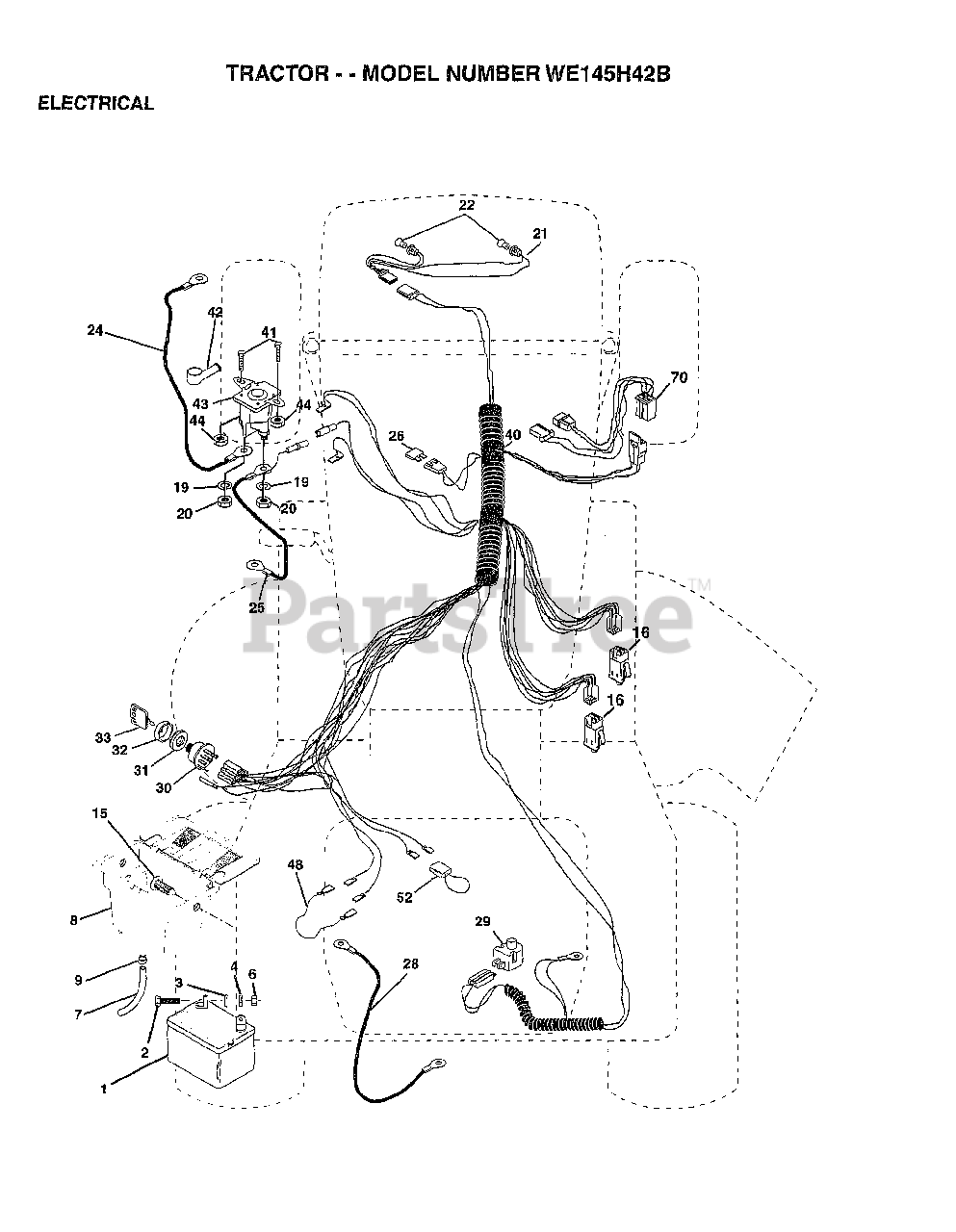

WE 145H42 B - Weed Eater Lawn Tractor (1997) > Parts Diagrams (12) > ELECTRICAL

  • Title
144925

1

SUB= 123899X

Part# 144925 (Superseded to 532144925)

OEM Warranty Repair Part for Electrolux/AYP

Not available

74760412

2

BOLT LT

Part# 74760412 (Superseded to 874760412)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

19091016

3

WASHER

Part# 19091016 (Superseded to 819091016)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $3.34

10040400

4

LOCKWASHER

Part# 10040400 (Superseded to 810040400)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

73220400

6

SUB= 50675

Part# 73220400 (Superseded to 873220400)

OEM Warranty Repair Part for Electrolux/AYP

Not available

109238X

7

TUBE T

Part# 109238X (Superseded to 532105687)

OEM Warranty Repair Part for Electrolux/AYP

Not available

156417

8

"CASE,BATTERY.MECH"

Part# 156417 (Superseded to 532156417)

OEM Warranty Repair Part for Electrolux/AYP

Not available

109596X

9

HOSE CLAMP T

Part# 109596X (Superseded to 532109596)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $3.34

147688

15

FASTNER.SNAP-IN

Part# 147688 (Superseded to 532147688)

OEM Warranty Repair Part for Electrolux/AYP

Not available

153664

16

SWITCH INTERLOCK

Part# 153664 (Superseded to 532153664)

OEM Warranty Repair Part for Electrolux/AYP

Not available

10090400

19

SUB= 10040400

Part# 10090400

OEM Warranty Repair Part for Electrolux/AYP

Not available

73350400

20

NUT

Part# 73350400 (Superseded to 873350400)

OEM Warranty Repair Part for Electrolux/AYP

Not available

136850

21

"HARNESS,LIGHT SOC"

Part# 136850 (Superseded to 532136850)

OEM Warranty Repair Part for Electrolux/AYP

Not available

4152J

22

HEADLAMP BULB

Part# 4152J (Superseded to 532004152)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

4799J

24

"CABLE T, BATTERY"

Part# 4799J

OEM Warranty Repair Part for Electrolux/AYP

Not available

146147

25

CABLE.BTRY.6GA.RD

Part# 146147 (Superseded to 532146147)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $22.35

108824X

26

FUSE HYT

Part# 108824X

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $4.46

4207J

28

CABLE T

Part# 4207J (Superseded to 532004607)

OEM Warranty Repair Part for Electrolux/AYP

Not available

121305X

29

SWITCH SEAT

Part# 121305X (Superseded to 532121305)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $8.93

140301

30

SWITCH IGN 4POS

Part# 140301 (Superseded to 532140301)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $25.70

124211X

31

NUT IGNITION

Part# 124211X

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

141226

32

COVER KEY SWITCH

Part# 141226

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

122147X

33

KEY

Part# 122147X (Superseded to 532122147)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $5.58

156442

40

HARNESS-IGNITION

Part# 156442 (Superseded to 532156442)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $91.67

71110408

41

BOLT HXHD FIN

Part# 71110408 (Superseded to 871110408)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $2.23

131563

42

SUB= 154336

Part# 131563

OEM Warranty Repair Part for Electrolux/AYP

Not available

145673

43

SUB= 146154

Part# 145673 (Superseded to 532145673)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $16.84

73640400

44

NUT HXKEP 1/4X20

Part# 73640400 (Superseded to 873640400)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $3.34

140844

48

ADAPTER AMMETER

Part# 140844 (Superseded to 532140844)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

141940

52

PROTECTION LOOP

Part# 141940 (Superseded to 532141940)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

140422

70

HARNESS.ENG.DUAL

Part# 140422 (Superseded to 532140422)

OEM Warranty Repair Part for Electrolux/AYP

Not available
