WE 145H42 B - Weed Eater Lawn Tractor (1997)

Lawn Tractor

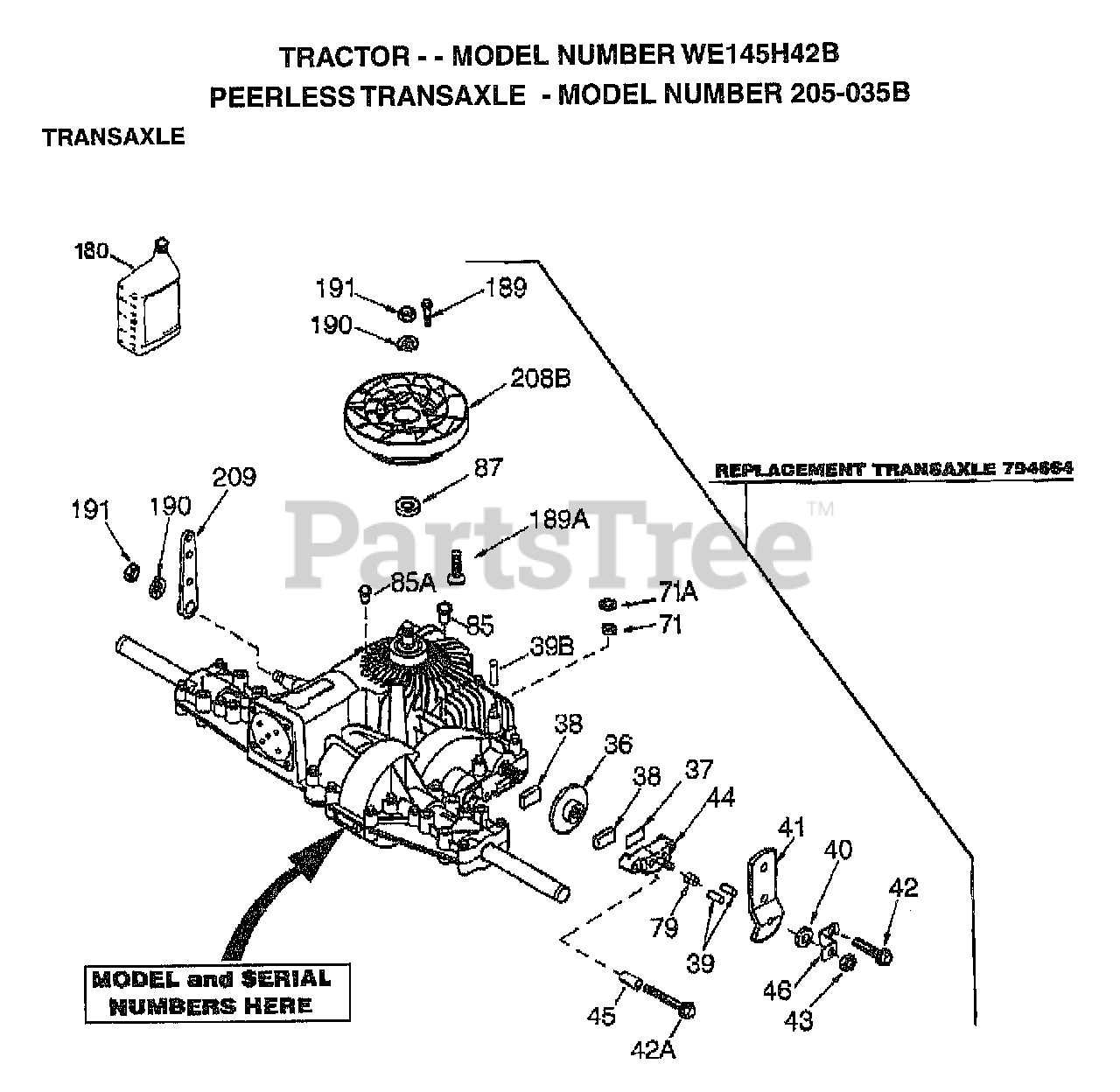

WE 145H42 B - Weed Eater Lawn Tractor (1997) > Parts Diagrams (12) > TRANSAXLE

  • Title
794664

REPLACEMENT TRANSAXLE

Part# 794664

OEM Warranty Repair Part for Electrolux/AYP

Not available

790075

36

BRAKE DISC

Part# 790075

OEM Warranty Repair Part for Electrolux/AYP

Not available

790007

37

PLATE BRAKE PAD

Part# 790007

OEM Warranty Repair Part for Electrolux/AYP

Not available

799021

38

BRAKE PAD

Part# 799021

OEM Warranty Repair Part for Electrolux/AYP

Not available

786026

39

PIN DOWEL

Part# 786026

OEM Warranty Repair Part for Electrolux/AYP

Not available

798033

39B

BELT GUARD

Part# 798033

OEM Warranty Repair Part for Electrolux/AYP

Not available

792076A

40

WASHER

Part# 792076A

OEM Warranty Repair Part for Electrolux/AYP

Not available

790085

41B

BRAKE LEVER

Part# 790085

OEM Warranty Repair Part for Electrolux/AYP

Not available

792073

42

SCREW, 1/4-20 X 1-1/4

Part# 792073

OEM Warranty Repair Part for Electrolux/AYP

Not available

792085A

42A

SCREW, 1/4-20 X 2-1/4

Part# 792085A

OEM Warranty Repair Part for Electrolux/AYP

Not available

792075

43

LOCKNUT 5/16-24

Part# 792075

OEM Warranty Repair Part for Electrolux/AYP

Not available

790025

44

HOLDER BRAKE PAD

Part# 790025

OEM Warranty Repair Part for Electrolux/AYP

Not available

786066

45

SPACER

Part# 786066

OEM Warranty Repair Part for Electrolux/AYP

Not available

790086

46

BRAKE LEVER BRACKET

Part# 790086

OEM Warranty Repair Part for Electrolux/AYP

Not available

788069

71

SEAL SQUARE CUT

Part# 788069

OEM Warranty Repair Part for Electrolux/AYP

Not available

792162

71A

PUSHNUT

Part# 792162

OEM Warranty Repair Part for Electrolux/AYP

Not available

792144

79

SPRING

Part# 792144

OEM Warranty Repair Part for Electrolux/AYP

Not available

792154

85

OIL FILL PLUG

Part# 792154

OEM Warranty Repair Part for Electrolux/AYP

Not available

792182

85A

TUBE PLUG, 3/8"

Part# 792182

OEM Warranty Repair Part for Electrolux/AYP

Not available

788035

87

OIL SEAL

Part# 788035

OEM Warranty Repair Part for Electrolux/AYP

Not available

730229A

180

GEAR OIL 80W90

Part# 730229A

OEM Warranty Repair Part for Electrolux/AYP

Not available

792168

189

DRIVE SCREW

Part# 792168

OEM Warranty Repair Part for Electrolux/AYP

Not available

792169

189A

SCREW

Part# 792169

OEM Warranty Repair Part for Electrolux/AYP

Not available

792150

190

LOCKWASHER

Part# 792150

OEM Warranty Repair Part for Electrolux/AYP

Not available

792151

191

NUT

Part# 792151

OEM Warranty Repair Part for Electrolux/AYP

Not available

798025

208B

FAN/COUPLING

Part# 798025

OEM Warranty Repair Part for Electrolux/AYP

Not available

798024

209

CONTROL LEVER

Part# 798024

OEM Warranty Repair Part for Electrolux/AYP

Not available
