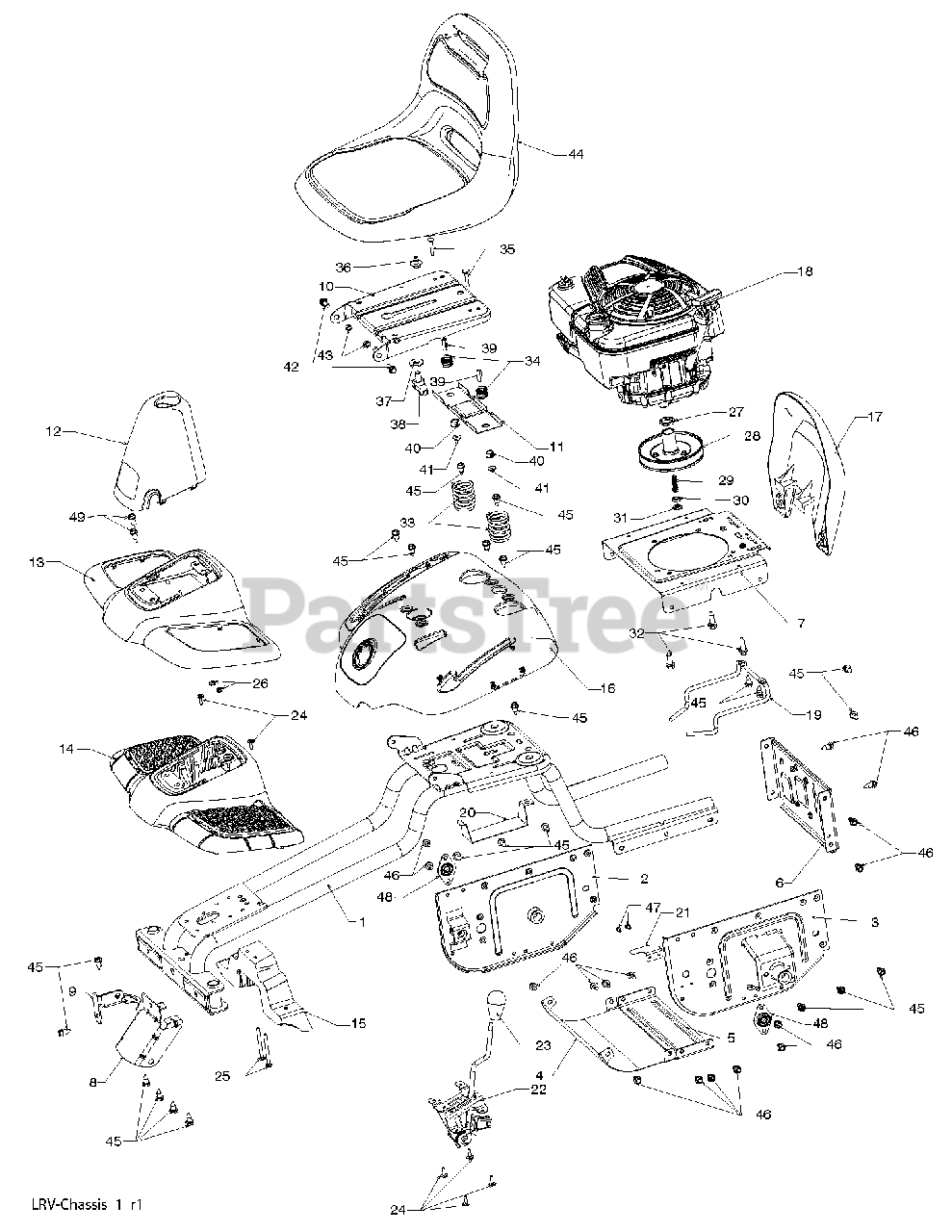

WE 261 (960240001-00) - Weed Eater Lawn Tractor (2009-12) Chassis Parts Diagram

Lawn Tractor

Chassis Parts Diagram

  • Title

1

Electrolux/AYP 428048

WELDMENT, CHASSIS

$95.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 428247

SUPPORT, AXEL LH
(Superseded to 532428247)

$66.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 428244

SUPPORT, AXEL RH
(Superseded to 532439816)

$66.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 428346

SHIELD, TRANSAXLE FRONT
(Superseded to 532428346)

$15.99

$

In Stock, only 1 left!

0

5

Electrolux/AYP 428110

BRACE, AXLE CROSS

$

$

Not available

6

Electrolux/AYP 428109

COVER, FRICTION DRIVE
(Superseded to 532428109)

$24.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 428040

PLATE, ENGINE
(Superseded to 532428040)

$

$

Not available

8

Electrolux/AYP 428576

BRACKET, CHASSIS FRONT
(Superseded to 532428576)

$14.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 428856

BRACKET, STEERING SUPPORT

$3.49

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 195530

PAN, SEAT
(Superseded to 532195530)

$21.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 174648X431

BRACKET, SWITCH MOUNTING
(Superseded to 532174648)

$8.99

$

In Stock, only 1 left!

0

12

Electrolux/AYP 428248

BOOT, DUST
(Superseded to 532428248)

$15.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 428251X665

COVER, FOOT REST

$25.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 428250

STRUCTURE, FOOT REST
(Superseded to 532428250)

$47.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 428249

SUPPORT, FOOT REST
(Superseded to 532428249)

$23.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 428241X665

FENDER, CONTROL

$54.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 428348

GUARD, ENGINE
(Superseded to 532428348)

$24.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 428047

ENGINE (NON-CALIFORNIA)

$

$

Not available

18

Electrolux/AYP 432389

ENGINE (CALIFORNIA)

$

$

Not available

19

Electrolux/AYP 428986

KEEPER, BELT
(Superseded to 532428986)

$9.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 428046

BRACKET, BATTERY
(Superseded to 532428046)

$6.49

$

In Stock, only 1 left!

0

21

Electrolux/AYP 429815

LEVER, SWITCH
(Superseded to 532429815)

$4.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 428826

DECK CLUTCH ASM
(Superseded to 532428826)

$109.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 149846

KNOB
(Superseded to 532149846)

$9.99

$

In Stock, only 1 left!

0

24

Electrolux/AYP 416358

SCREW, NO. 10
(Superseded to 596321701)

$3.99

$

In Stock, Qty 20+

0

25

Electrolux/AYP 72140424

BOLT, CARRIAGE 1/4-20 X 3
(Superseded to 872140424)

$4.99

$

Usually ships in 3-10 days

0

26

Murray 73510400

NUT, 1/4-20
(Superseded to 873640400)

$

$

Not available

27

Electrolux/AYP 430087

SPACER, ENGINE
(Superseded to 532430087)

$4.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 428301

DISC, FRICTION ASM
(Superseded to 580747201)

$53.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 430817

BOLT, SCKT HD 3/8-24 X 1 .25
(Superseded to 532430817)

$4.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 430470

BEARING
(Superseded to 532430470)

$7.49

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 430469

SPACER, NEUTRAL
(Superseded to 532437322)

$4.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 150406

BOLT, 3/8-16 X .280
(Superseded to 532150406)

$7.49

$

In Stock, Qty 10

0

33

Electrolux/AYP 124181X

SPRING, SEAT
(Superseded to 587613301)

$6.49

$

In Stock, Qty 19

0

34

Electrolux/AYP 121250X

SPRING
(Superseded to 532121250)

$7.49

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 72050412

BOLT, 1/4-20 X 1 1/2
(Superseded to 872050412)

$6.49

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 127018X

BOLT, SHOULDER
(Superseded to 532127018)

$7.49

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 19171912

WASHER, 17/32 X 1 3/16
(Superseded to 819171912)

$7.49

$

In Stock, only 2 left!

0

38

Electrolux/AYP 166369

KNOB, SEAT
(Superseded to 532166369)

$10.99

$

In Stock, only 3 left!

0

39

Electrolux/AYP 134300

SPACER
(Superseded to 532134300)

$7.49

$

In Stock, only 1 left!

0

40

Electrolux/AYP 121248X

BUSHING, NYLON SNAP
(Superseded to 532121248)

$6.49

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 123976X

NUT, LOCK
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

42

Electrolux/AYP 171852

BOLT, 5/16-18 SHOULDER
(Superseded to 532171852)

$4.99

$

In Stock, Qty 14

0

43

Electrolux/AYP 73800500

NUT, 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

44

Electrolux/AYP 428243

SEAT

$94.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 17000512

BOLT, 5/16-18 X 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

46

Electrolux/AYP 17490508

BOLT, 5/16-18 X 1/2
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 86777

SCREW
(Superseded to 532086777)

$

$

Not available

48

Electrolux/AYP 408981

BEARING FLANGE BALL
(Superseded to 532408981)

$9.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 17060516

SCREW 5/16-18 X1
(Superseded to 817060516)

$6.49

$

Usually ships in 3-10 days

0
