WE F550 M - Weed Eater Tiller (2000) Handle Assembly Parts Diagram

Tiller

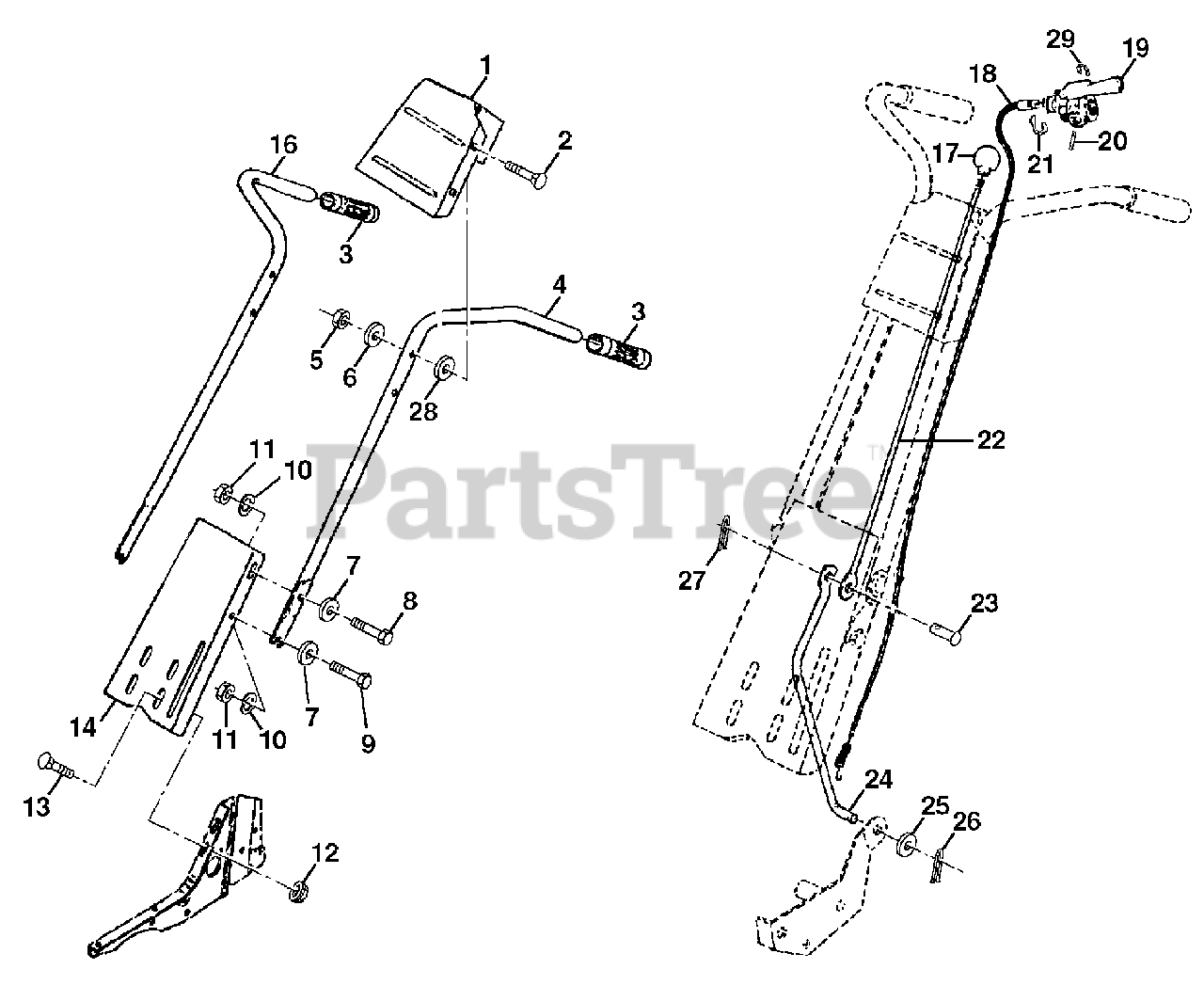

Handle Assembly Parts Diagram

  • Title

1

Electrolux/AYP 131268X550

Bracket, Handle

$7.49

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 72140512

Bolt, Carriage 5/16-18 UNC x 1-1/2
(Superseded to 582736101)

$

$

Not available

3

Electrolux/AYP 9266R

Grip, Handle

$

$

Not available

4

Electrolux/AYP 166376

Handle, L.H.
(Superseded to 532446013)

$46.99

$

Usually ships in 3-10 days

0

5

Murray 73680500

Locknut, Crown 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

6

Electrolux/AYP 19111116

Washer 11/32 x 11/16 x 16 Ga.
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 19121414

Washer 3/8 x 7/8 x 14 Ga.
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 74760516

Bolt, Hex Hd 5/16-18 x 1

$

$

Not available

9

Electrolux/AYP 74760512

Bolt, Hex Hd 5/16-18 x 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

10

Electrolux/AYP 10040500

Washer, Lock 5/16
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 73220500

Nut, Hex 5/16-18
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 98000129

Nut, Flanged 5/16-18
(Superseded to 532426589)

$6.49

$

In Stock, Qty 20+

0

13

Electrolux/AYP 72140506

Bolt, Carriage 5/16-18 x 3/4 Gr. 5
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

14

Electrolux/AYP 674A150550

Panel, Handle
(Superseded to 583772501)

$17.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 166377

Handle, R.H.

$12.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 106932X

Knob, Control, Reverse
(Superseded to 532106932)

$6.49

$

In Stock, Qty 9

0

18

Electrolux/AYP 166868

Cable, Control, Tine
(Superseded to 583021801)

$24.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 151229

Control, Tine
(Superseded to 584447601)

$37.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 154805

Pin, Pivot
(Superseded to 584448301)

$6.49

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 12000027

Ring, Klip
(Superseded to 812000027)

$6.49

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 167692

Rod, Reverse, Upper

$6.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 1778E

Pin, Retaining
(Superseded to 583697101)

$2.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 2613J

Rod, Reverse, Lower
(Superseded to 583730401)

$8.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 19131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

26

Electrolux/AYP 76020412

Pin, Cotter 1/8 x 3/4
(Superseded to 596029501)

$3.99

$

In Stock, only 2 left!

0

27

Electrolux/AYP 76020308

Pin, Cotter 3/32 x 1/2
(Superseded to 876020308)

$

$

Not available

28

Electrolux/AYP 19131312

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 596133201)

$3.99

$

In Stock, only 1 left!

0

29

Electrolux/AYP 12000059

Retaining, Ring
(Superseded to 582730101)

$6.49

$

In Stock, only 3 left!

0
