WEA 1136 A - Weed Eater Lawn Tractor PEERLESS TRANSAXLE Parts Diagram

Lawn Tractor

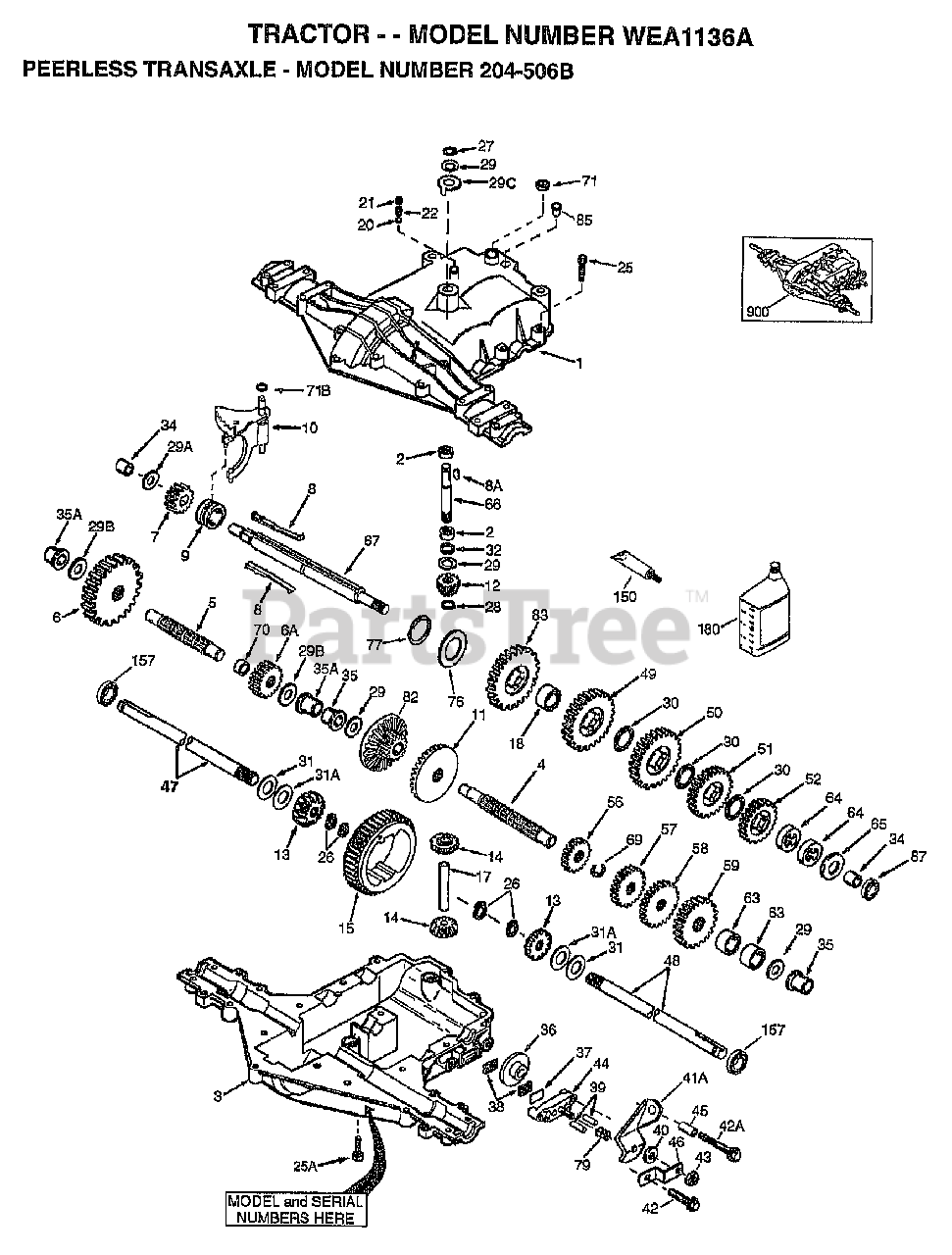

PEERLESS TRANSAXLE Parts Diagram

  • Title

1

Electrolux/AYP 772147

TRANSAXLE COVER

$

$

Not available

2

Electrolux/AYP 780086A

NEEDLE BEARING 5/8" ID

$

$

Not available

3

Electrolux/AYP 770128

TRANSAXLE CASE

$

$

Not available

4

Electrolux/AYP 776395

COUNTERSHAFT

$

$

Not available

5

Electrolux/AYP 776409

OUTPUT SHAFT

$

$

Not available

6

Electrolux/AYP 778364

SPUR GEAR (38 TEETH)

$

$

Not available

6A

Electrolux/AYP 778369

SPUR GEAR (15 TEETH)

$

$

Not available

7

Electrolux/AYP 778330

SPUR GEAR (11 TEETH)

$

$

Not available

8

Electrolux/AYP 792180

SHIFT KEY

$

$

Not available

8A

Electrolux/AYP 792047

KEY, WOODRUFF

$

$

Not available

9

Electrolux/AYP 784352

COLLAR, SHIFTER

$

$

Not available

10

Electrolux/AYP 784378

SHIFT ROD & FORK

$

$

Not available

11

Electrolux/AYP 778334

BEVEL GEAR (30 TEETH)

$

$

Not available

12

Electrolux/AYP 778309

INPUT BEVEL PINION (13TEETH)

$

$

Not available

13

Electrolux/AYP 778368

BEVEL GEAR (13 TEETH)

$

$

Not available

14

Electrolux/AYP 778367

BEVEL PINION (13 TEETH)

$

$

Not available

15

Electrolux/AYP 778370

RING GEAR (43 TEETH)

$

$

Not available

17

Electrolux/AYP 786188

DRIVE PIN

$

$

Not available

18

Electrolux/AYP 786102

SPACER, NEUTRAL

$

$

Not available

20

Electrolux/AYP 792077

BALL STEEL, 5/16" DIA.

$

$

Not available

21

Electrolux/AYP 792078

SCREW, 3/8-16 X 3/8"

$

$

Not available

22

Electrolux/AYP 792079

SPRING

$

$

Not available

25

Electrolux/AYP 792073A

SCREW

$

$

Not available

25A

Electrolux/AYP 792177

SCREW 1/4-20 X 1-3/8"

$

$

Not available

26

Electrolux/AYP 792125

RING RETAINER

$

$

Not available

27

Electrolux/AYP 792035

RING, RETAINER

$

$

Not available

28

Electrolux/AYP 788040

RETAINING RING

$

$

Not available

29

Electrolux/AYP 780072

WASHER THRUST

$

$

Not available

29A

Electrolux/AYP 780160

WASHER

$

$

Not available

29B

Electrolux/AYP 780051

WASHER THRUST

$

$

Not available

29C

Electrolux/AYP 780199

P/N CONFLICT - CHECK WITH SUPPLIER

$

$

Not available

30

Electrolux/AYP 780108

WASHER THRUST

$

$

Not available

31

Electrolux/AYP 780001

WASHER

$

$

Not available

31A

Electrolux/AYP 780195

FLAT WASHER

$

$

Not available

32

Electrolux/AYP 788083

OIL SEAL 5/8"

$

$

Not available

34

Electrolux/AYP 780194

BUSHING 9/16"

$

$

Not available

35

Electrolux/AYP 780193

FLANGED BUSHING 5/8" ID

$

$

Not available

35A

Electrolux/AYP 780197

FLANGED BUSHING 3/4"

$

$

Not available

36

Electrolux/AYP 790075

BRAKE DISC

$

$

Not available

37

Electrolux/AYP 790007

PLATE BRAKE PAD

$

$

Not available

38

Electrolux/AYP 799021

BRAKE PAD

$10.99

$

In Stock, Qty 11

0

39

Electrolux/AYP 786026

PIN DOWEL

$

$

Not available

40

Electrolux/AYP 792076A

WASHER

$

$

Not available

41A

Electrolux/AYP 790079

BRAKE LEVER

$

$

Not available

42

Electrolux/AYP 792073A

SCREW

$

$

Not available

42A

Electrolux/AYP 792085A

SCREW, 1/4-20 X 2-1/4

$

$

Not available

43

Electrolux/AYP 792075

LOCKNUT 5/16-24

$

$

Not available

44

Electrolux/AYP 790025

HOLDER BRAKE PAD

$

$

Not available

45

Electrolux/AYP 786066

SPACER

$

$

Not available

46

Electrolux/AYP 786086

BRKT BRAKE LEVER

$

$

Not available

47

Electrolux/AYP 774690

AXLE

$

$

Not available

48

Electrolux/AYP 774691

AXLE

$

$

Not available

49

Electrolux/AYP 778356

SPUR GEAR (29 TEETH)

$

$

Not available

50

Electrolux/AYP 778354

SPUR GEAR (23 TEETH)

$

$

Not available

51

Electrolux/AYP 778352

SPUR GEAR (19 TEETH)

$

$

Not available

52

Electrolux/AYP 778346

SPUR GEAR (15 TEETH)

$

$

Not available

56

Electrolux/AYP 778355

SPUR GEAR (11 TEETH)

$

$

Not available

57

Electrolux/AYP 778353

SPUR GEAR (17 TEETH)

$

$

Not available

58

Electrolux/AYP 778351

SPUR GEAR (21 TEETH)

$

$

Not available

59

Electrolux/AYP 778345

SPUR GEAR (25 TEETH)

$

$

Not available

63

Electrolux/AYP 786071

SPACER

$

$

Not available

64

Electrolux/AYP 786072

SPACER

$

$

Not available

65

Electrolux/AYP 780189

WASHER

$

$

Not available

66

Electrolux/AYP 776422

INPUT SHAFT

$

$

Not available

67

Electrolux/AYP 776396

SHIFTER & BRAKE SHAFT

$

$

Not available

69

Electrolux/AYP 792170

RETAINING RING

$

$

Not available

70

Electrolux/AYP 786187

SPACER .890

$

$

Not available

71

Electrolux/AYP 788069

SEAL SQUARE CUT

$

$

Not available

71B

Electrolux/AYP 788092

"O" RING

$

$

Not available

76

Electrolux/AYP 780090

WASHER, THRUST

$

$

Not available

77

Electrolux/AYP 788078A

INVERTED RETAINING RING

$

$

Not available

79

Electrolux/AYP 792144

SPRING

$

$

Not available

82

Electrolux/AYP 778333

BEVEL & SPUR GEAR (30 & 13 TEETH)

$

$

Not available

83

Electrolux/AYP 778338

SPUR GEAR (27 TEETH)

$

$

Not available

85

Electrolux/AYP 792154

OIL FILL PLUG

$

$

Not available

87

Electrolux/AYP 788089

OIL SEAL 9/16"

$

$

Not available

150

Electrolux/AYP 788093A

LIQUID GASKET RTV SILICONE

$

$

Not available

157

Electrolux/AYP 788088

OIL SEAL 3/4"

$

$

Not available

180

Electrolux/AYP 730229A

GEAR OIL 80W90

$

$

Not available

900

UNKNOWN

$

$

Not available
