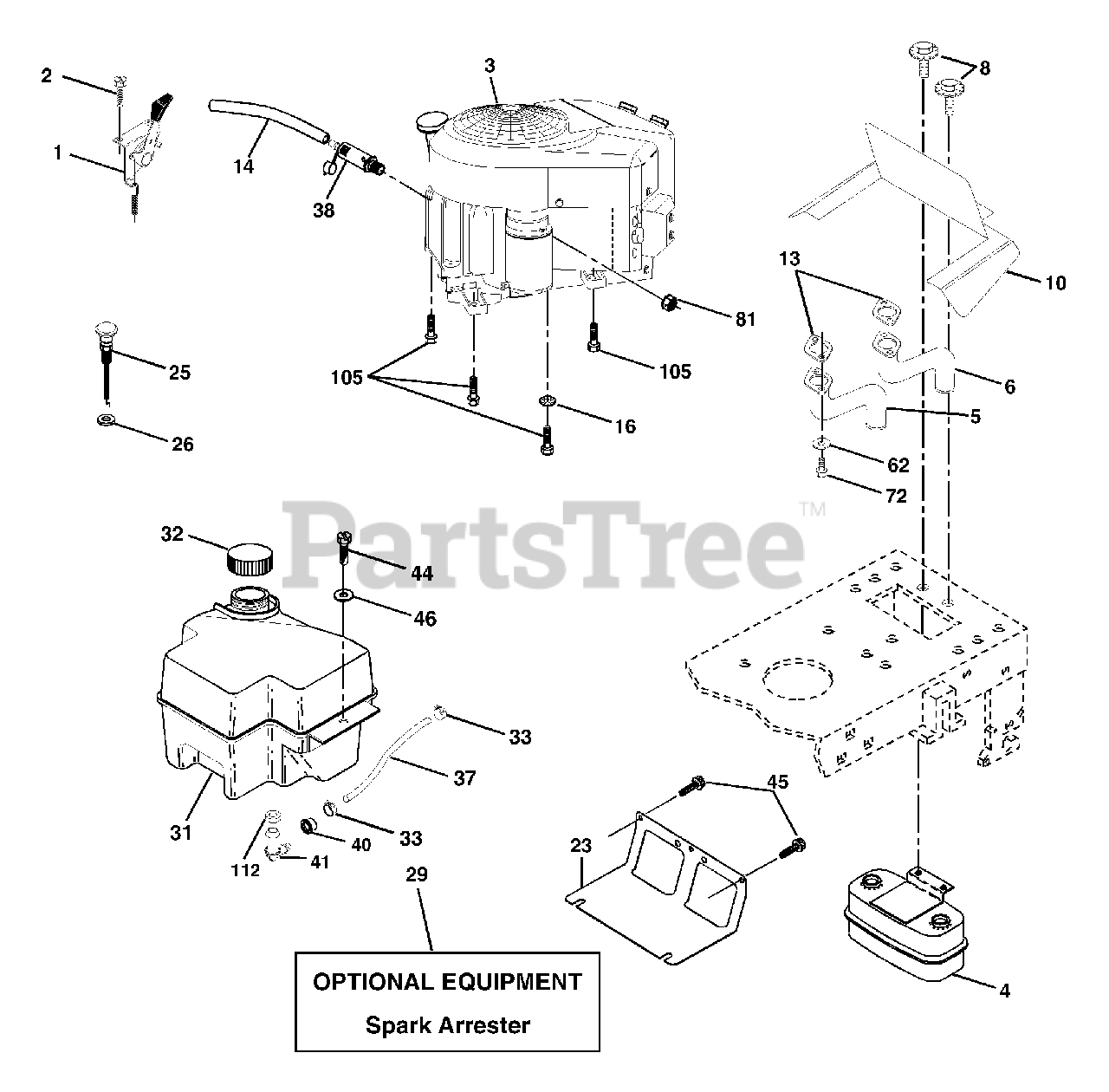

WET 2242ST C - Weed Eater Lawn Tractor (2003) Engine Parts Diagram

Lawn Tractor

Engine Parts Diagram

  • Title
1

Electrolux/AYP 170803

Control Throt /Ch Flag
(Superseded to 532170803)

$30.99

$

In Stock, only 1 left!

0

2

Electrolux/AYP 17720408

Screw Hex Thd Cut 1/4-20x1/2
(Superseded to 817240408)

$7.49

$

Usually ships in 3-10 days

0

3

Engine Briggs Model TVT691

Note: (Order Parts From Engine Manufacturer)

$

$

Not available

4

Electrolux/AYP 149723

Muffler
(Superseded to 532149723)

$74.99

$

In Stock, only 1 left!

0

5

Electrolux/AYP 174703

Exhaust Tube LH
(Superseded to 532174703)

$

$

Not available

6

Electrolux/AYP 174704

Exhaust Tube RH
(Superseded to 532174704)

$47.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 171877

Bolt 5/16-18unc x 3/4
(Superseded to 532171877)

$7.49

$

In Stock, Qty 12

0

10

Electrolux/AYP 175563

Shield Muffler
(Superseded to 532175563)

$

$

Not available

13

Gasket

Note: (Order Parts From Engine Manufacturer)

$

$

Not available

14

Electrolux/AYP 148456

Tube Drain Oil Easy
(Superseded to 532148456)

$4.99

$

In Stock, Qty 20+

0

16

Electrolux/AYP 11050600

Washer Lock Ext Tooth 3/8
(Superseded to 810040600)

$3.49

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 169837

Shield Browning/Debris Guard
(Superseded to 532169837)

$10.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 161729

Control Choke
(Superseded to 532161729)

$

$

Not available

26

Electrolux/AYP 73920600

Nut Keps 3/8-24 Unf
(Superseded to 873920600)

$3.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 137180

Arrestor Spark
(Superseded to 532137180)

$

$

Not available

31

Electrolux/AYP 180645

Tank Fuel
(Superseded to 532180645)

$

$

Not available

32

Electrolux/AYP 140527

Cap Asm Fuel W/sym Vented
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 123487X

Clamp Hose Blk
(Superseded to 532123487)

$7.49

$

In Stock, Qty 8

0

37

Electrolux/AYP 137040

Line Fuel 20"
(Superseded to 532137040)

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 181654

Plug Drain Oil Easy
(Superseded to 532428287)

$18.99

$

In Stock, Qty 10

0

40

Murray 124028X

Bushing Snap

$

$

Not available

41

Electrolux/AYP 139277

Stem Fuel Tank
(Superseded to 532139277)

$8.99

$

In Stock, Qty 20+

0

44

Electrolux/AYP 17670412

Screw Hexwsh Thdrol 1/4-20x3/4
(Superseded to 817670412)

$6.49

$

In Stock, only 2 left!

0

45

Electrolux/AYP 17000612

Screw Hex Wsh Thdrol 3/8-16
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

46

Electrolux/AYP 19091416

Washer 9/32 X 7/8 X 16ga
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 10040500

Washer Lock 5/16
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

72

Electrolux/AYP 71070512

Screw Hex Hd Cap 5/16-18 x 3/4
(Superseded to 596134201)

$3.99

$

In Stock, Qty 20+

0

81

Murray 73510400

Nut Keps Hex 1/4-20 Unc
(Superseded to 873640400)

$

$

Not available

105

Electrolux/AYP 17120616

Screw Thdrol 3/8-16x1-1
(Superseded to 817120616)

$5.99

$

In Stock, Qty 7

0

112

Electrolux/AYP 3645J

Bushing, Outlet
(Superseded to 532003645)

$3.99

$

In Stock, Qty 9

0
