WEX 155HCRD A - Weed Eater Lawn Tractor CHASSIS/ENCLOSURES Parts Diagram

Lawn Tractor

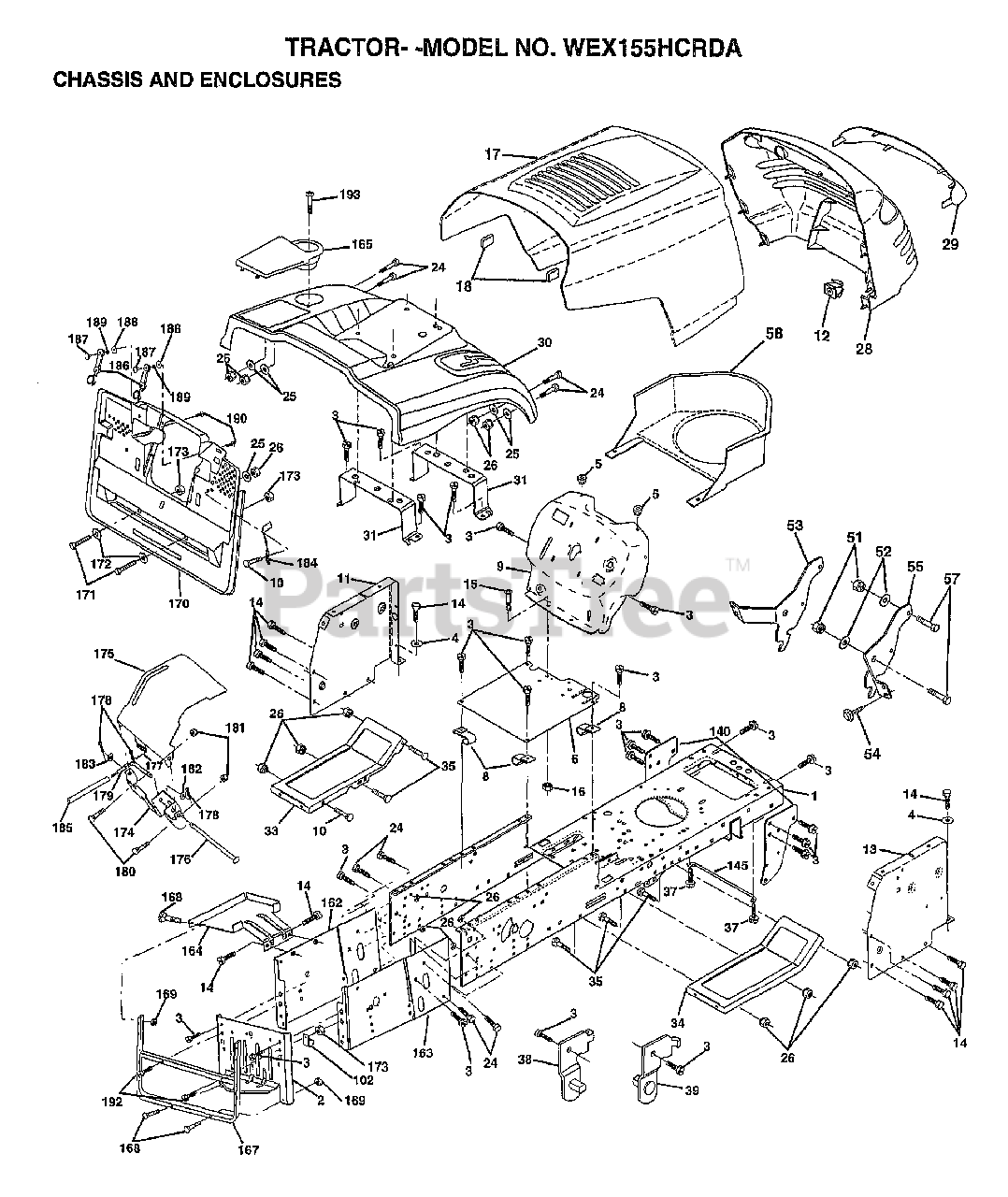

CHASSIS/ENCLOSURES Parts Diagram

  • Title
1

Electrolux/AYP 165480

CHASSIS.STAMPING

$

$

Not available

2

Electrolux/AYP 165606

DRAWBAR.CRD
(Superseded to 532165606)

$56.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 4 left!

0

4

Electrolux/AYP 19131216

WASHER
(Superseded to 819131216)

$

$

Not available

5

Electrolux/AYP 155272

BUMPER-HOOD/DASH
(Superseded to 532155272)

$7.49

$

In Stock, only 3 left!

0

6

Electrolux/AYP 155923

SADDLE
(Superseded to 532155923)

$14.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 126471X

"CLIP,INSULATOR"
(Superseded to 532126471)

$4.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 147631X011

DASH.SILKSCREEN

$17.99

$

Usually ships in 3-10 days

0

10

Murray 72140608

SUB= 72110608

$

$

Not available

11

Electrolux/AYP 155927

"PANEL-DASH,LH"
(Superseded to 174996)

$

$

Not available

12

Electrolux/AYP 145660

CLIP.TINNERMAN
(Superseded to 532145660)

$3.49

$

In Stock, only 1 left!

0

13

Electrolux/AYP 155934X010

SUB= 169117X010
(Superseded to 172107X010)

$

$

Not available

14

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 74180512

SCREW
(Superseded to 874180512)

$

$

Not available

$2.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 159639X550

HOOD.STEEL.ASSY
(Superseded to 532182408)

$80.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 126938X

SUB= 532126938
(Superseded to 532126938)

$

$

Not available

24

Electrolux/AYP 74780616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 2 left!

0

26

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 157373

GRILLE-MS428
(Superseded to 532179101)

$

$

Not available

29

Electrolux/AYP 140273X599

LENS.GRILLE.PRIVATE LABEL
(Superseded to 532140273)

$

$

Not available

30

Electrolux/AYP 165713X550

FENDER.CRD.GREEN

$267.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 165156

BRKT.SUPT.FENDER.CRD
(Superseded to 532165156)

$

$

Not available

33

Electrolux/AYP 145244X550

FOOTREST.LH.LT/GT
(Superseded to 532182874)

$43.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 145243X550

FOOTREST.RH.LT/GT
(Superseded to 179717X550)

$11.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 72110606

BOLT
(Superseded to 872110606)

$4.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 17490508

SCREW LT
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 139886

BRACKET ASM LH
(Superseded to 532139886)

$8.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 139887

BRACKET ASM RH
(Superseded to 532139887)

$

$

Not available

51

Electrolux/AYP 73800400

NUT
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 19091416

WASHER
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 144697

BRACKET.GRILLE.LH
(Superseded to 532144697)

$

$

Not available

54

Electrolux/AYP 161464

SCREW.HEX.WS.HD
(Superseded to 532161464)

$

$

Not available

55

Electrolux/AYP 144696

BRACKET.GRILLE.RH
(Superseded to 532144696)

$

$

Not available

57

Electrolux/AYP 74780412

SUB= 74780414
(Superseded to 874780412)

$

$

Not available

58

Electrolux/AYP 150127

AIR DUCT
(Superseded to 532150127)

$

$

Not available

102

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

140

Electrolux/AYP 158418

BRKT SUSPENSION
(Superseded to 532158418)

$

$

Not available

145

Electrolux/AYP 156524

"ROD POVOT,CHASSIS"
(Superseded to 532409167)

$13.99

$

In Stock, only 2 left!

0

148

Electrolux/AYP 17490620

SCREW
(Superseded to 817060620)

$7.49

$

In Stock, Qty 11

0

162

Electrolux/AYP 165672

BRKT.EXT.CHASSIS.LH.CRD
(Superseded to 532165672)

$72.99

$

Usually ships in 3-10 days

0

163

Electrolux/AYP 165673

BRKT.EXT.CHASSIS.RH.CRD

$

$

Not available

164

Electrolux/AYP 165605

SUPPORT.BATTERY.CRD
(Superseded to 532165605)

$

$

Not available

165

Electrolux/AYP 165742X428

COVER.BATTERY.CRD.BLACK.LT

$10.99

$

Usually ships in 3-10 days

0

167

Electrolux/AYP 165779

SUPT.ASM.BACKPLATE

$35.99

$

Usually ships in 3-10 days

0

168

Electrolux/AYP 72050412

BOLT-RD HD SQ NK
(Superseded to 872050412)

$6.49

$

Usually ships in 3-10 days

0

169

Electrolux/AYP 123976X

SUB= 73900400
(Superseded to 586668901)

$4.99

$

In Stock, Qty 18

0

170

Electrolux/AYP 165607

COVER.BACKPLATE.BLACK
(Superseded to 532165607)

$182.99

$

Usually ships in 3-10 days

0

171

Electrolux/AYP 74520640

BOLT.HEX.3/8-16X2-1/2
(Superseded to 596564404)

$3.99

$

In Stock, only 3 left!

0

172

Electrolux/AYP 19132016

SUB= 19132012

$

$

Not available

173

Electrolux/AYP 73510600

NUT
(Superseded to 873510600)

$6.49

$

Usually ships in 3-10 days

0

174

Electrolux/AYP 165939

BRKT.SWITCH.FBI.CRD

$

$

Not available

175

Electrolux/AYP 166212

GRUARD.DOOR.REAR.CRD

$22.99

$

Usually ships in 3-10 days

0

176

Electrolux/AYP 128600

HINGE PIN
(Superseded to 532192786)

$17.99

$

Usually ships in 3-10 days

0

177

Electrolux/AYP 132796

SPRING.COVER.LH
(Superseded to 532132796)

$6.99

$

In Stock, only 1 left!

0

178

Electrolux/AYP 76520312

SUB= 76020312

$3.49

$

Usually ships in 3-10 days

0

179

Electrolux/AYP 165942

ROD.PIVOT.FBI.CRD
(Superseded to 532165942)

$7.99

$

Usually ships in 3-10 days

0

180

$

$

Not available

181

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

182

Electrolux/AYP 138200

WASHER.385X.625
(Superseded to 532138200)

$4.99

$

Usually ships in 3-10 days

0

183

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

184

Electrolux/AYP 166139

BRKT.ACTUATOR.BAG.CRD

$19.99

$

Usually ships in 3-10 days

0

185

Electrolux/AYP 165940

TUBE.LEVER.SWCH.FBI.CRD
(Superseded to 532165940)

$6.49

$

Usually ships in 3-10 days

0

186

Electrolux/AYP 160793

LATCH ASSY.BAGGER
(Superseded to 532160793)

$

$

Not available

187

Electrolux/AYP 2029J

WELDNUT
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

188

Electrolux/AYP 19061216

WASHER #10
(Superseded to 819061216)

$4.99

$

In Stock, only 3 left!

0

189

Electrolux/AYP 10071000

LOCKWASHER
(Superseded to 810071000)

$4.99

$

In Stock, Qty 16

0

190

Electrolux/AYP 71161010

SCREW
(Superseded to 871081010)

$6.49

$

Usually ships in 3-10 days

0

192

Electrolux/AYP 17490624

SCREW LT
(Superseded to 817060624)

$7.49

$

In Stock, only 1 left!

0

193

Electrolux/AYP 17720410

SCREW LT
(Superseded to 817720410)

$

$

Not available

Electrolux/AYP 5479J

PLUG BUTTON T
(Superseded to 532005479)

$5.99

$

Usually ships in 3-10 days

0
