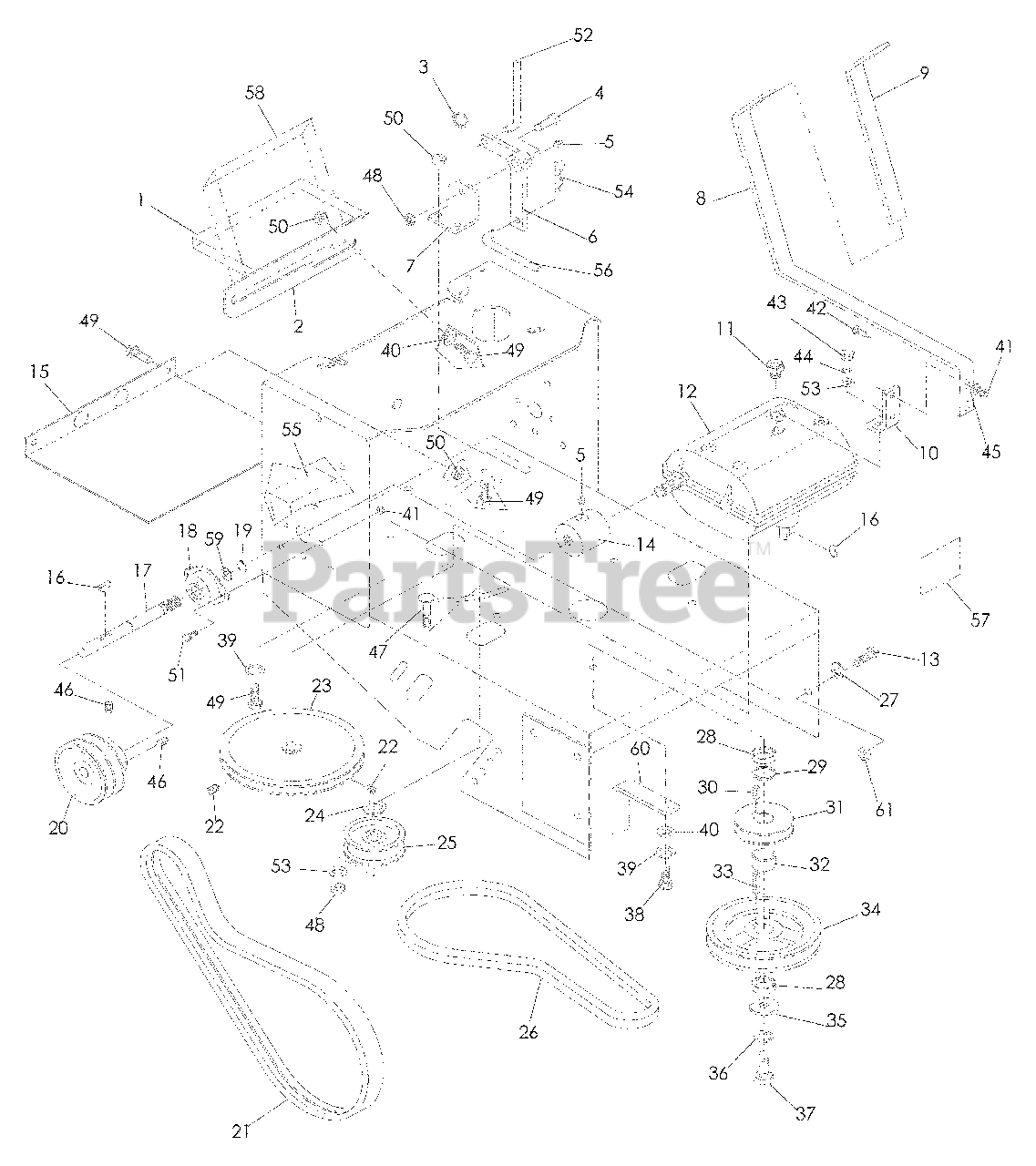

WG 3213 P (968999114) - Husqvarna 32" Walk-Behind Mower (2008-06) Chassis / Frame Parts Diagram

32" Walk-Behind Mower

Chassis / Frame Parts Diagram

  • Title

1

Husqvarna 539100277

DECAL, SHIFTER

$

$

Not available

2

Husqvarna 539101960

PLATE, SHIFTER

$

$

Not available

3

Husqvarna 539916459

RETAINER

$4.99

$

In Stock, only 2 left!

0

4

Husqvarna 539100150

SB ½-13 x ¾

$14.99

$

In Stock, only 2 left!

0

5

Husqvarna 539976998

ZERK, ¼-28 STRHT
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

6

Husqvarna 539100066

BELLCRANK

$

$

Not available

7

Husqvarna 539104648

BRACKET

$

$

Not available

8

Husqvarna 539101961

ARM, SHIFTER

$

$

Not available

9

Husqvarna 539101965

GRIP, SHIFTER

$

$

Not available

10

Husqvarna 539102165

BRACKET, SHIFTER

$

$

Not available

11

Husqvarna 539100148

SWITCH, TRANSMISSION

$51.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539102162

TRANSMISSION

$

$

Not available

13

Husqvarna 539101175

HCS 7/16-14 x 1½
(Superseded to 594944601)

$3.49

$

In Stock, only 3 left!

0

14

Husqvarna 539102164

COUPLING

$

$

Not available

15

Husqvarna 539104547

LOWER BELT SHIELD

$

$

Not available

16

Husqvarna 539910211

KEY #9 WOODRUFF

$3.49

$

In Stock, only 2 left!

0

17

Husqvarna 539102163

DRIVE SHAFT

$

$

Not available

18

Husqvarna 539101967

BEARING

$

$

Not available

19

Husqvarna 539101971

RETAINER RING

$3.49

$

In Stock, only 2 left!

0

20

Husqvarna 539101954

PULLEY, DRIVE (36 & 48)

$79.99

$

Usually ships in 3-10 days

0

Husqvarna 539102154

PULLEY, DRIVE(32)

$

$

Not available

21

Husqvarna 539110859

BELT, DRIVE(36 & 48)

$

$

Not available

Husqvarna 539102149

BELT, DRIVE(32)

$

$

Not available

22

Husqvarna 539101988

SETSCREW ¼ NYLOC

$

$

Not available

23

Husqvarna 539101964

INPUT PULLEY

$

$

Not available

24

Husqvarna 539111897

WASHER ½

$

$

Not available

25

Husqvarna 539919078

IDLER PULLEY

$31.99

$

In Stock, only 2 left!

0

26

Husqvarna 539101957

BELT, TRANSMISSION

$31.99

$

In Stock, only 1 left!

0

27

Husqvarna 539104864

WASHER 7/16
(Superseded to 596437601)

$3.49

$

In Stock, Qty 12

0

28

Husqvarna 539921960

SPACER

$

$

Not available

29

Husqvarna 539102050

BUSHING

$

$

Not available

30

Husqvarna 539105718

KEY ¼ SQ x ½

$

$

Not available

31

Husqvarna 539919148

PULLEY

$35.99

$

In Stock, only 1 left!

0

32

Husqvarna 539101720

SPACER

$

$

Not available

33

Husqvarna 539101995

KEY ¼ SQ x 11/8

$

$

Not available

34

Husqvarna 539101834

PULLEY, ENGINE

$62.99

$

In Stock, only 1 left!

0

35

Husqvarna 539106504

HEAVY WASHER

$

$

Not available

36

Husqvarna 539990247

LOCKWASHER 7/16
(Superseded to 596238901)

$3.49

$

In Stock, Qty 17

0

37

Husqvarna 539100141

HCS 7/16-20 x 1½

$

$

Not available

38

Husqvarna 539100567

HCS M8-1.25 x 30MM

$3.49

$

Usually ships in 3-10 days

0

39

Husqvarna 539990187

LOCKWASHER 5/16 STD
(Superseded to 596238801)

$3.49

$

In Stock, only 3 left!

0

40

Husqvarna 539990692

WASHER 5/16
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

41

Husqvarna 539990761

NUT ¼-20 CENTERLOCK

$3.49

$

In Stock, only 4 left!

0

42

Husqvarna 539977761

HCS ¼-20 x 1

$3.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539990155

NUT 3/8-24

$3.49

$

In Stock, Qty 16

0

44

Husqvarna 539990118

LOCKWASHER 3/8
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

45

Husqvarna 539990598

WASHER ¼
(Superseded to 597338501)

$17.99

$

In Stock, Qty 20+

0

46

Husqvarna 539976956

SETSCREW 5/16 NYLOC

$

$

Not available

32" MODELS)

$

$

Not available

47

Husqvarna 539100145

RHSNB 3/8-16 x 2
(Superseded to 595901401)

$3.49

$

In Stock, only 4 left!

0

48

Husqvarna 539990546

HLN 3/8-16 CENTERLOCK

$

$

Not available

49

Husqvarna 539976934

HCS 5/16-18 x ¾
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

50

Husqvarna 539990184

HLN 5/16-18

$

$

Not available

51

Husqvarna 539990072

HCS ¼-20 x 5/8
(Superseded to 596582501)

$3.49

$

In Stock, only 1 left!

0

52

Husqvarna 539101972

BLADE ROD

$

$

Not available

53

Husqvarna 539990517

WASHER 3/8
(Superseded to 596433701)

$3.49

$

In Stock, Qty 20+

0

54

Husqvarna 539976989

HAIRPIN, #4

$

$

Not available

55

Husqvarna 539105744

DECAL, DANGER

$3.99

$

In Stock, only 1 left!

0

56

Husqvarna 539102048

BLADE ROD

$

$

Not available

57

Husqvarna 539100128

DECAL, EXHAUST

$

$

Not available

58

Husqvarna 539102047

DECAL, CLUTCH

$

$

Not available

59

Husqvarna 539991043

BUSHING
(Superseded to 596933401)

$3.49

$

In Stock, only 2 left!

0

60

Husqvarna 539103462

BELT GUIDE, LONG

$

$

Not available

61

Husqvarna 539990839

NUT 7/16-14 CENTER LOCK

$3.49

$

In Stock, only 2 left!

0

Husqvarna 539102036

BELT GUIDE

Note: Not Shown

$

$

Not available

Husqvarna 539103463

BELT GUIDE, SHORT

Note: Not Shown

$

$

Not available
