WGP 3616 (966638501) - Husqvarna 36" Walk-Behind Mower (2010-10) IGNITION SYSTEM Parts Diagram

36" Walk-Behind Mower

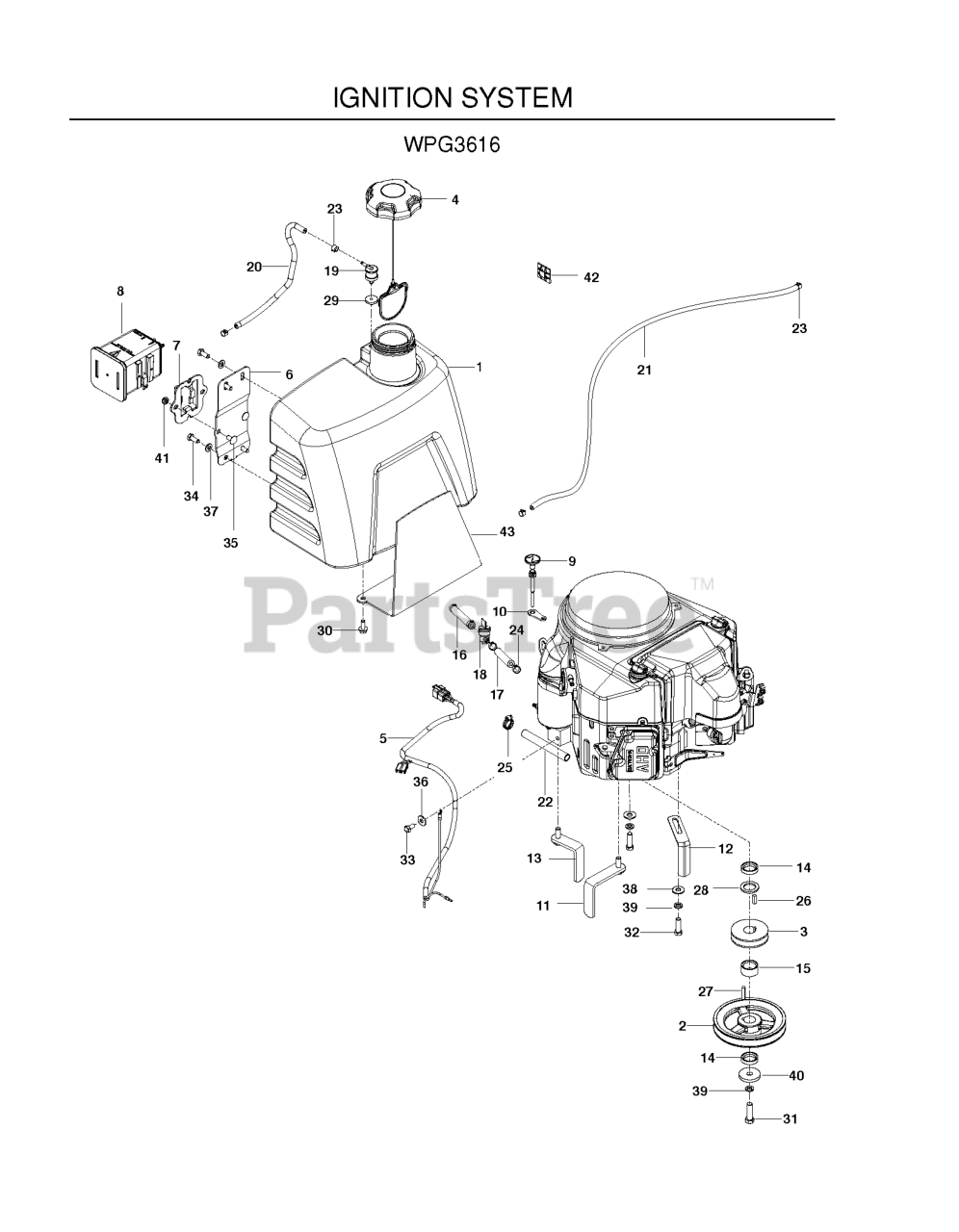

IGNITION SYSTEM Parts Diagram

  • Title

5

Husqvarna 539106085

LOWER HARNESS

$

$

Not available

38

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539103462

BELT GUIDE - LONG

$12.99

$

Usually ships in 3-10 days

0

10

Husqvarna 576948002

SUPPORT, CHOKE BLK

$

$

Not available

14

Husqvarna 539921960

SPACER

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539976966

HOSE CLAMP T-1865

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 574206904

CABLE, CHOKE

$35.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539101995

KEY 1/4 SQ X 1 1/8

$3.99

$

In Stock, only 1 left!

0

4

Husqvarna 575018101

CAP, FUEL
(Superseded to 575018103)

$34.99

$

In Stock, Qty 8

0

23

Husqvarna 575436501

CLAMP, HOSE

$6.49

$

In Stock, only 4 left!

0

3

Husqvarna 539919148

PULLEY

$29.99

$

In Stock, only 1 left!

0

37

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 576660602

HOSE, VAPOR 3/16 X 48"

$24.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539110863

MOUNTING BLOCK CABLE TIE

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539115617

5/16-18 THIN PROF NY

$

$

Not available

2

Husqvarna 539101834

PULLEY, ENGINE

$74.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 2 left!

0

6

Husqvarna 575329602

MOUNT, CANISTER BLK

$

$

Not available

7

Husqvarna 575242701

BRACKET, CANISTER

$10.99

$

Usually ships in 3-10 days

0

Husqvarna 539976856

TIE, PLASTIC

Note: NOT SHOWN

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 576618101

VALVE.FUEL.CHECK

$22.99

$

In Stock, Qty 20+

0

39

Husqvarna 539990118

SLW 3/8 STD
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 539102050

BUSHING, 10GA MACHINERY

$

$

Not available

34

Husqvarna 539990206

SCREW 5/16C X 1 HEX CAP
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

24

Husqvarna 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

17

Husqvarna 575296701

FUEL HOSE 3.5

$

$

Not available

22

Husqvarna 576980001

HOSE, OIL DRAIN, 5"

$

$

Not available

26

Husqvarna 539102067

KEY 1/4 SQ X 3/4

$5.99

$

In Stock, only 4 left!

0

35

Husqvarna 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

33

Husqvarna 539108003

HCS M8-1.25 X 16MM GR 5 ZD

$

$

Not available

30

Husqvarna 525464701

HHFS 5/16-18 X 3/4

$3.99

$

In Stock, only 3 left!

0

12

Husqvarna 539102036

BELT GUIDE

$18.99

$

Usually ships in 3-10 days

0

20

Husqvarna 575437803

HOSE, 3/16" VAPOR, 13"

$

$

Not available

40

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

43

Husqvarna 539132633

PLATE ID, ORANGE

$

$

Not available

29

Husqvarna 576618201

GROMMET, CHECK VALVE
(Superseded to 584648201)

$2.49

$

In Stock, Qty 20+

0

31

Husqvarna 539100141

HCS 7/16F X 1 1/2

$

$

Not available

15

Husqvarna 539101720

SPACER

$15.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

8

Husqvarna 532414114

CANNISTER, CARBON

$48.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539110425

FUEL LINE 5"
(Superseded to 587044805)

$3.99

$

In Stock, Qty 6

0

18

Husqvarna 539916325

FUEL VALVE

$47.99

$

Usually ships in 3-10 days

0

1

Husqvarna 575320602

TANK, FUEL BLK
(Superseded to 575320601)

$

$

Not available

13

Husqvarna 539103463

BELT GUIDE, SHORT

$12.99

$

Usually ships in 3-10 days

0
