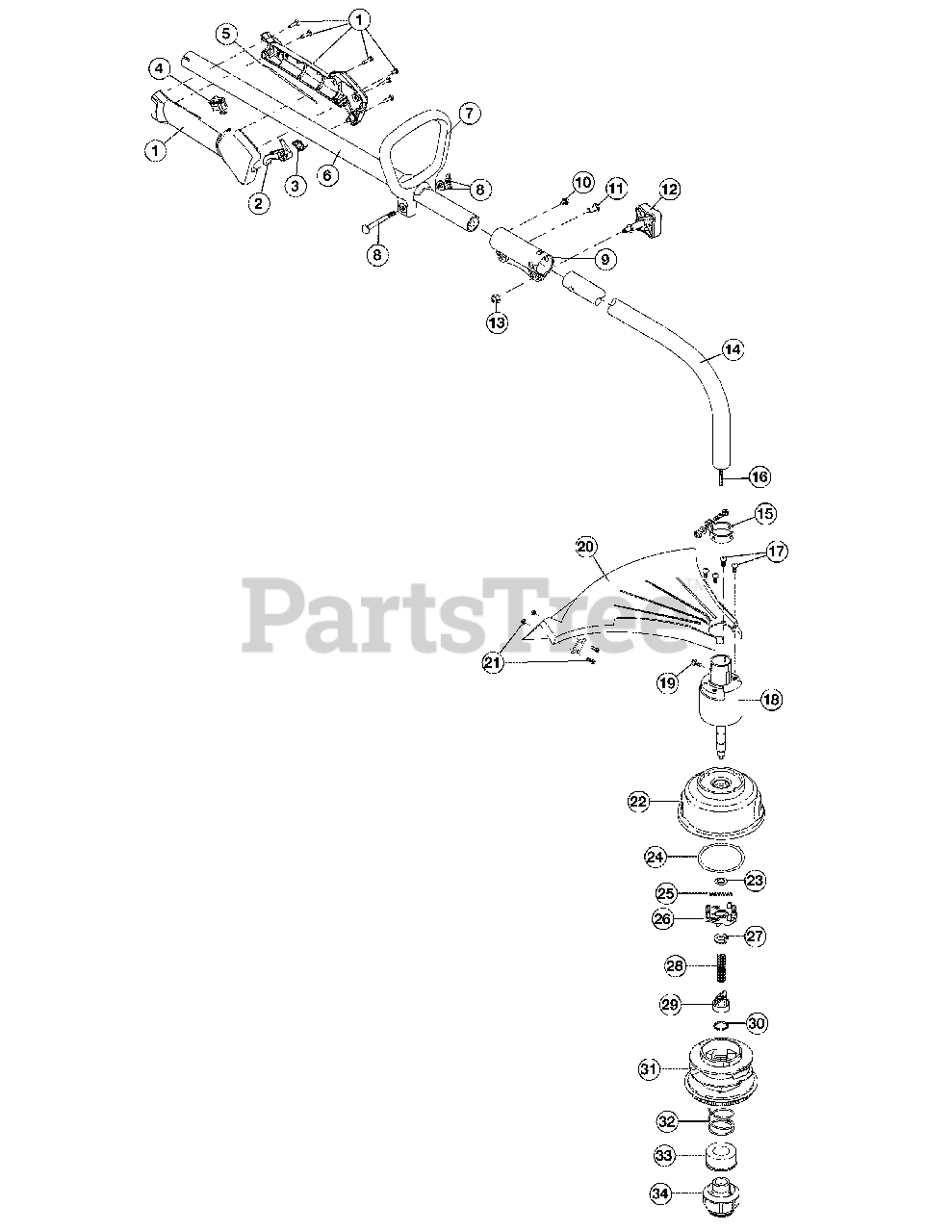

WH 25 CS (41ADW25C990) - White Outdoor String Trimmer General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

White Outdoor 753-04234

Throttle Housing Assembly

Note: (includes 2-4)

$19.99

$

In Stock, Qty 20+

0

2

White Outdoor 753-04119

Throttle Trigger

$6.99

$

In Stock, Qty 20+

0

3

White Outdoor 791-182690

Throttle Trigger Spring

$7.49

$

In Stock, Qty 17

0

4

White Outdoor 791-182405

Switch

$9.99

$

In Stock, Qty 20+

0

5

White Outdoor 753-04405

Throttle Cable

$7.49

$

In Stock, only 1 left!

0

6

White Outdoor 753-04236

Upper Drive Shaft Housing Assembly

$89.99

$

In Stock, Qty 7

0

7

White Outdoor 753-05461

D-Handle

Note: (includes 8)

$20.99

$

Usually ships in 3-6 days

0

8

White Outdoor 791-181587

D-Handle Hardware

$18.99

$

In Stock, only 1 left!

0

9

White Outdoor 791-181928

Split Boom Coupler

Note: (includes 10-13)

$

$

Not available

10

White Outdoor 791-182057

Screw

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 791-181617

Bolt

$4.99

$

In Stock, Qty 13

0

12

White Outdoor 791-181951

Adjustment Knob
(Superseded to 791-181981)

Note: (includes 13)

$7.49

$

In Stock, only 1 left!

0

13

White Outdoor 753-04386

Knob Retaining Nut
(Superseded to 712-04018A)

$4.49

$

In Stock, Qty 6

0

14

White Outdoor 791-182387

Lower Drive Shaft Housing Assembly

Note: (includes 16)

$58.99

$

In Stock, only 2 left!

0

15

White Outdoor 791-153597

Lower Clamp Assembly

Note: (includes 19)

$15.99

$

Usually ships in 3-6 days

0

16

White Outdoor 791-181852

Lower Flexible Drive Shaft

$58.99

$

Usually ships in 3-6 days

0

17

White Outdoor 791-180531

Shield Mount Screw
(Superseded to 791-181858)

$

$

Not available

18

White Outdoor 791-181857

Bushing Housing Assembly

$

$

Not available

19

White Outdoor 791-145569

Anti-Rotation Screw

$9.49

$

In Stock, Qty 11

0

20

White Outdoor 791-181659

Shield Assembly

Note: (includes 21)

$

$

Not available

21

White Outdoor 753-05212

Blade Assembly
(Superseded to 753-06048)

$

$

Not available

22

White Outdoor 791-181457

Outer Spool Assembly

Note: ( includes 23)

$37.99

$

In Stock, Qty 5

0

23

White Outdoor 791-181458

Retainer

$4.49

$

In Stock, only 2 left!

0

24

White Outdoor 791-181561

Thrust Washer

$4.49

$

In Stock, Qty 8

0

25

White Outdoor 791-181459

Small Spring

$4.49

$

In Stock, Qty 20+

0

26

White Outdoor 753-04257

Slider

$6.99

$

In Stock, Qty 10

0

27

White Outdoor 791-181532

E-Clip

$4.49

$

In Stock, Qty 16

0

28

White Outdoor 791-181531

Spring

$4.49

$

In Stock, Qty 11

0

29

White Outdoor 791-181462

Plunger

$

$

Not available

30

White Outdoor 791-181463

C-Clip

$3.99

$

In Stock, Qty 6

0

31

White Outdoor 791-181464

Inner Reel
(Superseded to 791-181460B)

$30.99

$

In Stock, Qty 10

0

32

White Outdoor 791-181465B

Large Spring

$10.99

$

In Stock, only 1 left!

0

33

White Outdoor 791-181467

Foam Seal

$

$

Not available

34

White Outdoor 791-181468B

Bump Head Knob Assembly

Note: (includes 32 & 33)

$15.99

$

In Stock, only 2 left!

0

White Outdoor 753-04929

Cutting Head Assembly

Note: Not shown (includes 15, 18, 19 & 22-24)

$

$

Not available
