WH 3615 (968999237) - Husqvarna 36" Walk-Behind Mower (2005-08) HYDRAULIC PUMP - MOTOR Parts Diagram

36" Walk-Behind Mower

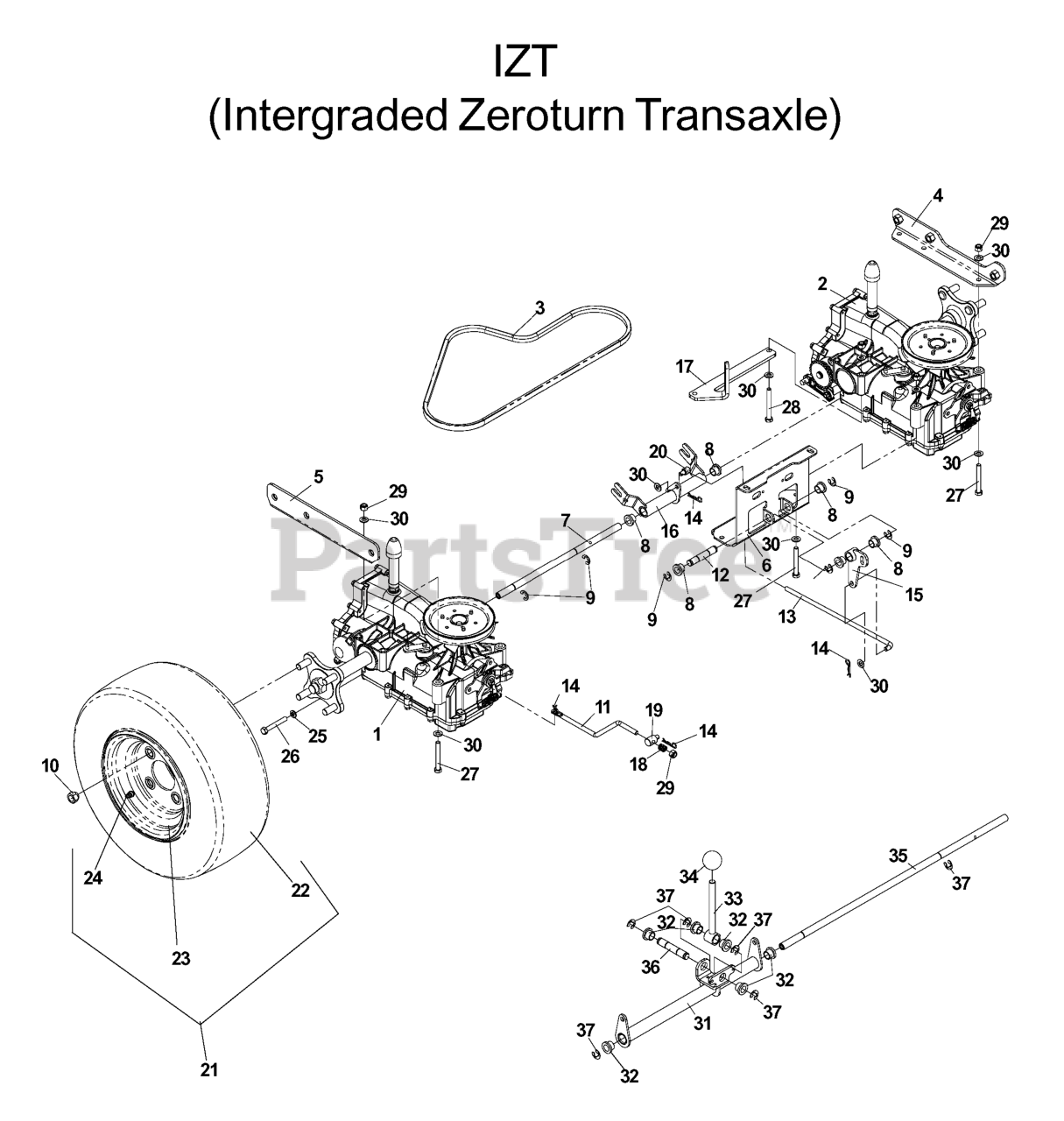

HYDRAULIC PUMP - MOTOR Parts Diagram

  • Title

5

Husqvarna 539109006

IZT SUPPORT, LT

$18.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539110503

TIRE, 16/650-8 TURF RIDER

$72.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539109978

KNOB

$11.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539109975

ACTUATOR ARM

$35.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539111019

HG_IZT RIGHT (354-2400L)

$

$

Not available

37

Husqvarna 539101949

E-RING 1/2 (2 2)

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539100032

BUSHING, FLANGED NYLON

$

$

Not available

13

Husqvarna 539109013

BRAKE LINKAGE

$15.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539109977

LEVER

$14.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539109012

BRAKE ROD

$9.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 539109009

IZT CONNECTOR

$54.99

$

Usually ships in 3-10 days

0

539109001

Husqvarna 539109001

IZT RIGHT
(Superseded to 539111019)

$

$

Not available

8

Husqvarna 539100032

BUSHING, FLANGED NYLON

$

$

Not available

23

Husqvarna 539110504

RIM

$54.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539101949

E-RING 1/2 (2 2)

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539101173

LUG NUT 1/2F

$

$

Not available

35

Husqvarna 539109979

SHAFT

$

$

Not available

17

Husqvarna 539109095

CLUTCH TIE DOWN

$15.99

$

Usually ships in 3-10 days

0

1

Husqvarna 539111018

HG_IZT LEFT (354-2400R)

$

$

Not available

14

Husqvarna 539976988

HAIRPIN #2

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539109769

TIRE/WHEEL.ASSEM.16X6.5-8.ZTR

$

$

Not available

25

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, Qty 18

0

6

Husqvarna 539109008

IZT SUPPORT, REAR

$54.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539976434

SWIVEL (SHORT)

$21.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539111445

IZT BELT

$

$

Not available

30

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 539102845

SPRING

$4.99

$

In Stock, only 3 left!

0

11

Husqvarna 539109011

IZT BYPASS LINKAGE

$14.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539111108

IZT SUPPORT RIGHT

$21.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539109014

BRAKE BELLCRANK, REAR

$15.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539101721

HCS 5/16C X 2-3/4

$4.99

$

In Stock, Qty 16

0

539109000

Husqvarna 539109000

HG_IZT LEFT
(Superseded to 539111018)

$

$

Not available

26

Husqvarna 539108002

HEX SCREW-.313C X 2.25 GR8

$3.99

$

In Stock, Qty 6

0

27

Husqvarna 539991046

BOLT 5/16C X 2 1/2

$4.99

$

In Stock, Qty 8

0

16

Husqvarna 539109010

BRAKE BELLCRANK, FRONT

$28.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539109012

BRAKE ROD

$9.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539109032

SWIVEL

$18.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539912234

VALVE STEM TR-412

$6.49

$

In Stock, Qty 20+

0
