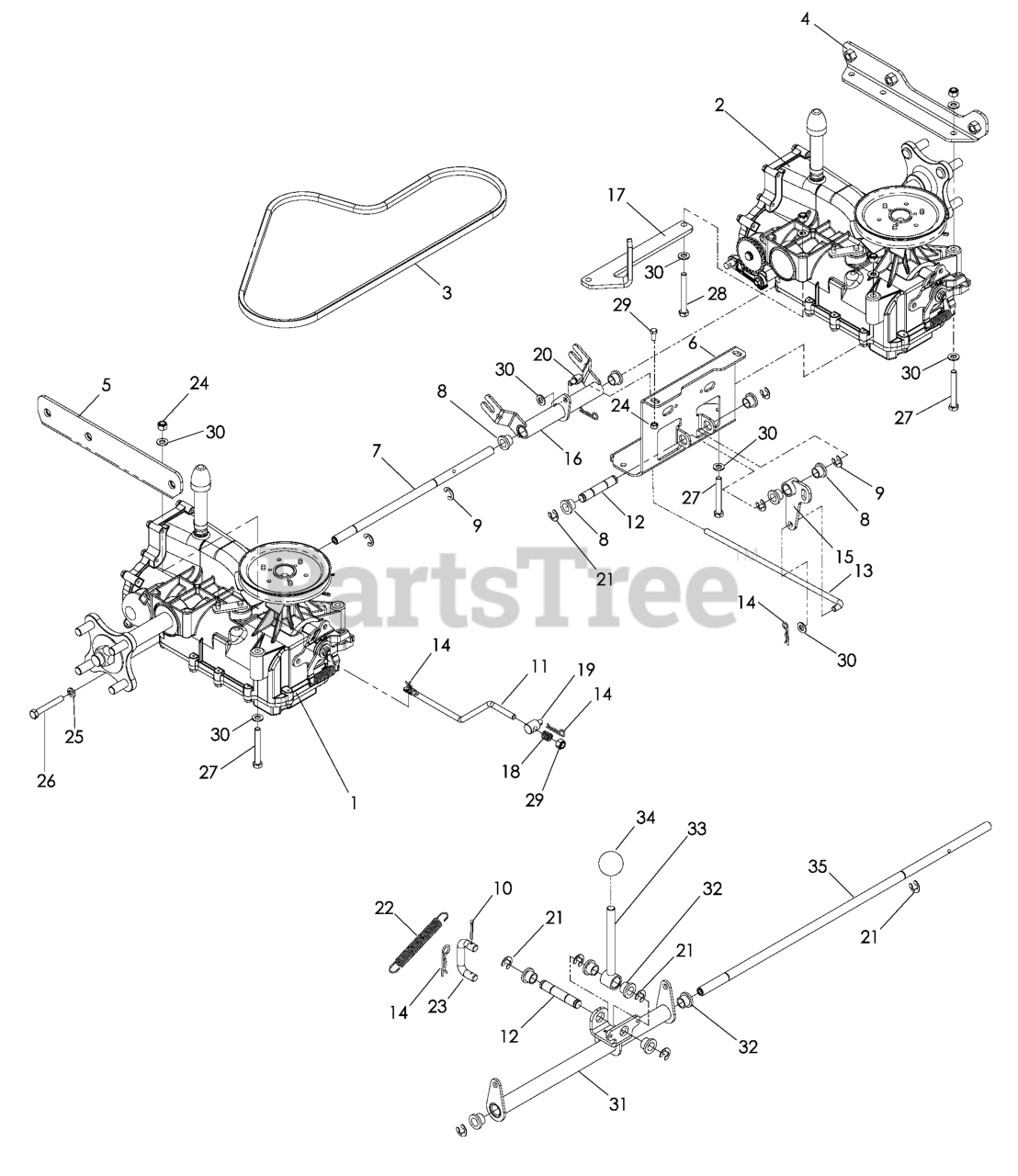

WH 3615 E (968999237) - Husqvarna 36" Walk-Behind Mower (2005-08) Hydraulics Pump-Motor Parts Diagram

36" Walk-Behind Mower

Hydraulics Pump-Motor Parts Diagram

  • Title

1

Husqvarna 539111018

HG_IZT LEFT (354-2400R)

$

$

Not available

Husqvarna 539109000

HG_IZT LEFT
(Superseded to 539111018)

$

$

Not available

2

Husqvarna 539111019

HG_IZT RIGHT (354-2400L)

$

$

Not available

Husqvarna 539109001

IZT RIGHT
(Superseded to 539111019)

$

$

Not available

3

Husqvarna 539111445

IZT BELT

$

$

Not available

4

Husqvarna 539111108

IZT SUPPORT RIGHT

$

$

Not available

5

Husqvarna 539109006

IZT SUPPORT, LT

$

$

Not available

6

Husqvarna 539109008

IZT SUPPORT, REAR

$

$

Not available

7

Husqvarna 539109009

IZT CONNECTOR

$

$

Not available

8

Husqvarna 539100032

BUSHING, FLANGED NYLON

$

$

Not available

9

Husqvarna 539101949

E-RING 1/2 (2 2)

$

$

Not available

10

Husqvarna 539990037

COTTER PIN 3/32 X 3/4

$6.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539109011

IZT BYPASS LINKAGE

$

$

Not available

12

Husqvarna 539109012

BRAKE ROD

$

$

Not available

13

Husqvarna 539109013

BRAKE LINKAGE

$

$

Not available

14

Husqvarna 539976988

HAIRPIN #2
(Superseded to 596580601)

$4.99

$

In Stock, Qty 12

0

15

Husqvarna 539109014

BRAKE BELLCRANK, REAR

$

$

Not available

16

Husqvarna 539109010

BRAKE BELLCRANK, FRONT

$

$

Not available

17

Husqvarna 539109095

CLUTCH TIE DOWN

$26.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539102845

SPRING

$3.49

$

In Stock, only 4 left!

0

19

Husqvarna 539109032

SWIVEL

$

$

Not available

20

Husqvarna 539976434

SWIVEL (SHORT)

$

$

Not available

21

Husqvarna 539101949

E-RING 1/2 (2 2)

$

$

Not available

22

Husqvarna 539977250

SPRING

$

$

Not available

23

Husqvarna 539109033

BRAKE ENGAGE LINKAGE

$

$

Not available

24

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0

25

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.49

$

In Stock, Qty 20+

0

26

Husqvarna 539108002

HEX SCREW-.313C X 2.25 GR8

$6.99

$

In Stock, Qty 6

0

27

Husqvarna 539991046

BOLT 5/16C X 2 1/2

$4.99

$

In Stock, Qty 8

0

28

Husqvarna 539101721

HCS 5/16C X 2-3/4

$4.99

$

In Stock, Qty 12

0

29

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

30

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.49

$

In Stock, Qty 20+

0

31

Husqvarna 539109975

ACTUATOR ARM

$

$

Not available

32

Husqvarna 539100032

BUSHING, FLANGED NYLON

$

$

Not available

33

Husqvarna 539109977

LEVER

$

$

Not available

34

Husqvarna 539109978

KNOB

$

$

Not available

35

Husqvarna 539109979

SHAFT

$

$

Not available
