WH 3615 - Husqvarna 36" Walk-Behind Mower (2008-08) ENGINE Parts Diagram

36" Walk-Behind Mower

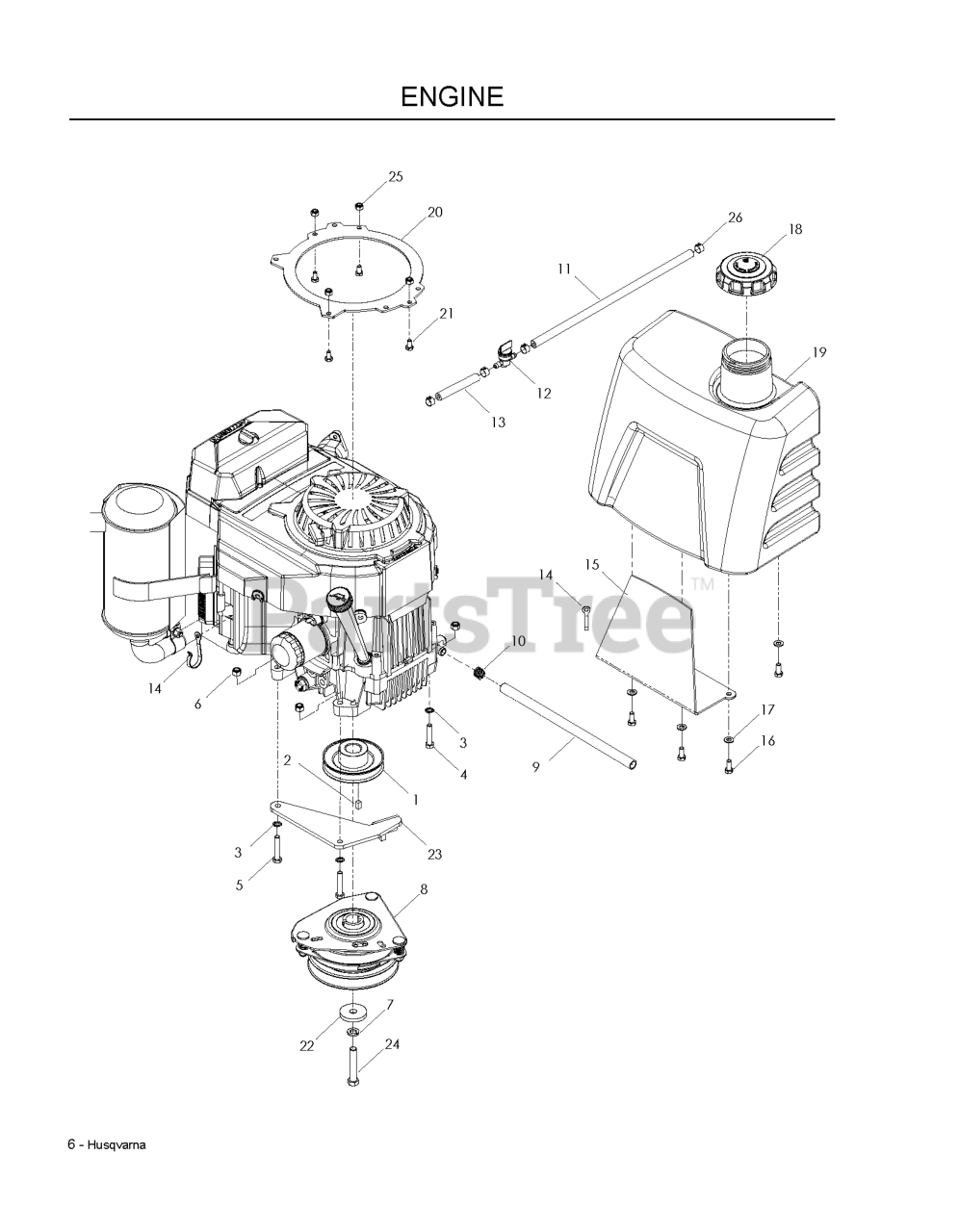

ENGINE Parts Diagram

  • Title

20

Husqvarna 539132548

ADAPTER - RECOIL

$

$

Not available

6

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 539132549

FUEL TANK
(Superseded to 575320601)

$

$

Not available

25

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539990669

HCS 5/16C X 1 3/4
(Superseded to 874780528)

$7.49

$

In Stock, only 4 left!

0

17

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

26

Husqvarna 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

3

Husqvarna 539109556

WASHER 5/16 EXT STAR

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

15

Husqvarna 539132633

PLATE ID, ORANGE

$

$

Not available

14

Husqvarna 539107098

CLAMP

$14.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539990071

HCS 1/4-20.

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539106188

FUEL CAP ANTI-SPLASH
(Superseded to 539130394)

$31.99

$

In Stock, only 4 left!

0

24

Husqvarna 539991120

BOLT 7/16F X 2 1/2

$6.49

$

In Stock, Qty 11

0

8

Husqvarna 532400008

CLUTCH.ELECTRIC.LT.48"*
(Superseded to 532414336)

$399.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539105718

SQUARE KEY - 1/4 X .5

$

$

Not available

1

Husqvarna 539132525

PULLEY - ENGINE

$

$

Not available

12

Husqvarna 539916325

FUEL VALVE

$47.99

$

In Stock, only 1 left!

0

13

Husqvarna 505215101

FUEL LINE 3"

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539976935

CAPSCREW 5/16 X 1/1/2 HEX HEAD

$1.49

$

Usually ships in 3-10 days

0

10

Husqvarna 539976966

HOSE CLAMP T-1865

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539108212

FUEL LINE 13"

$1.99

$

In Stock, Qty 5

0

23

Husqvarna 539132527

CLUTCH STOP

$

$

Not available

9

Husqvarna 539107937

OIL DRAIN HOSE

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0
