WH 4817 (968999123) - Husqvarna 48" Walk-Behind Mower (2006-02) HANDLE & CONTROLS Parts Diagram

48" Walk-Behind Mower

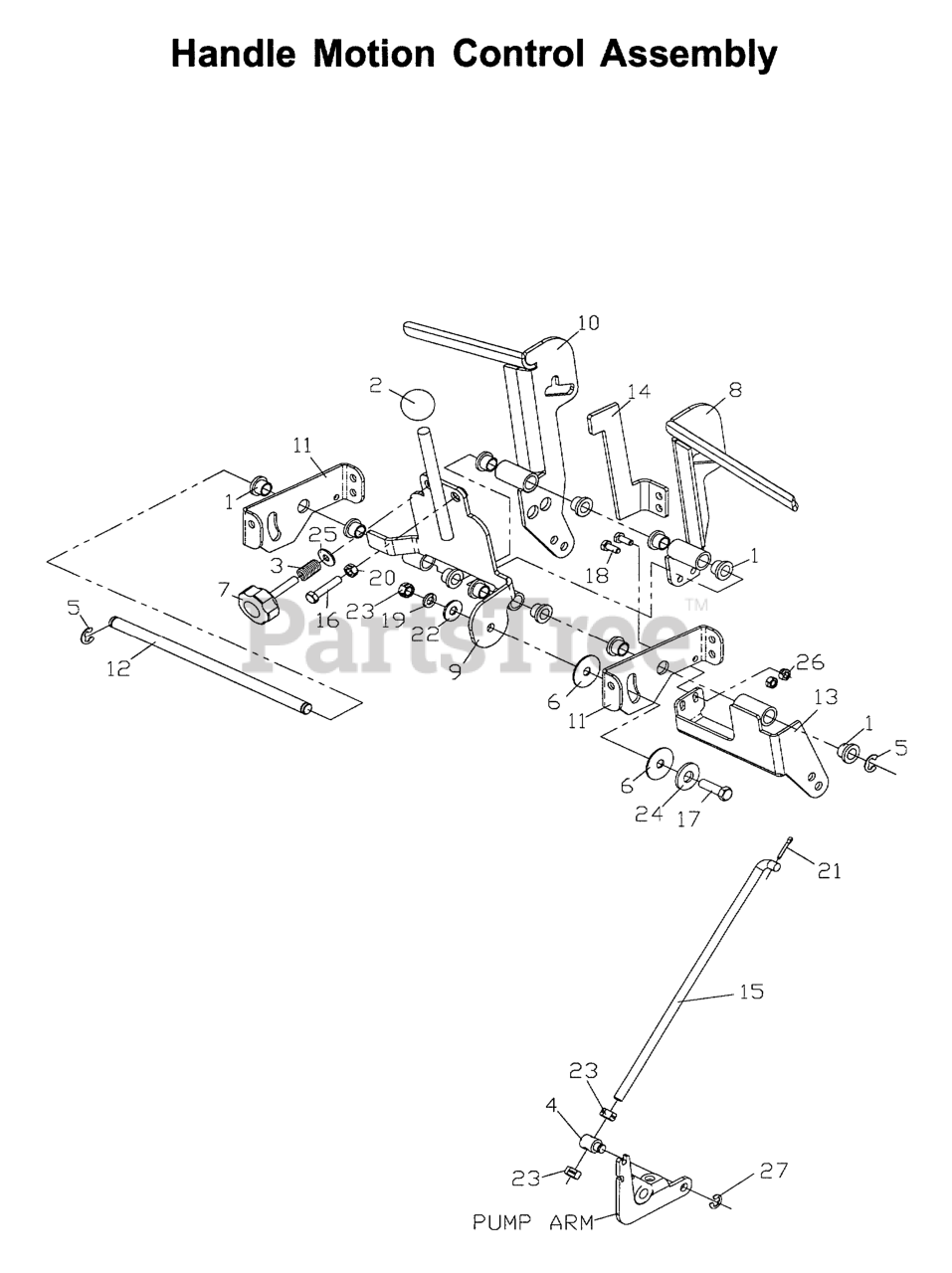

HANDLE & CONTROLS Parts Diagram

  • Title

24

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539105963

STOP PLATE

$

$

Not available

2

Husqvarna 539100147

KNOB

$8.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539990870

E RING 3/8"

$6.49

$

Usually ships in 3-10 days

0

1

Husqvarna 539100032

BUSHING, FLANGED NYLON

$

$

Not available

6

Husqvarna 539102998

WASHER, FRICTION

$8.99

$

In Stock, Qty 10

0

9

Husqvarna 539105820

NEUTRAL BAR

$

$

Not available

25

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

20

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539105818

PADDLE - LH

$

$

Not available

17

Husqvarna 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 2 left!

0

3

Husqvarna 539101224

SPRING

$7.49

$

Usually ships in 3-10 days

0

19

Husqvarna 539990118

SLW 3/8 STD
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

22

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

16

Husqvarna 539976935

CAPSCREW 5/16 X 1/1/2 HEX HEAD

$1.49

$

Usually ships in 3-10 days

0

26

Husqvarna 539990761

NUT 1/4C CENTER LOCK

$4.99

$

In Stock, only 4 left!

0

15

Husqvarna 539106093

DRIVE LINKAGE

$

$

Not available

13

Husqvarna 539105880

TAB - LH

$

$

Not available

11

Husqvarna 539105830

CROSS BRACE

$

$

Not available

7

Husqvarna 539103003

ADJUSTMENT KNOB

$

$

Not available

18

Husqvarna 539990072

HCS 1/4C X 5/8

$3.99

$

In Stock, only 3 left!

0

12

Husqvarna 539105877

SHAFT

$

$

Not available

10

Husqvarna 539105824

PADDLE - RH

$

$

Not available

5

Husqvarna 539101949

E-RING 1/2 (2 2)

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539101940

SWIVEL

$27.99

$

Usually ships in 3-10 days

0
