WH 4817 (968999123) - Husqvarna 48" Walk-Behind Mower (2006-02) HOUSING Parts Diagram

48" Walk-Behind Mower

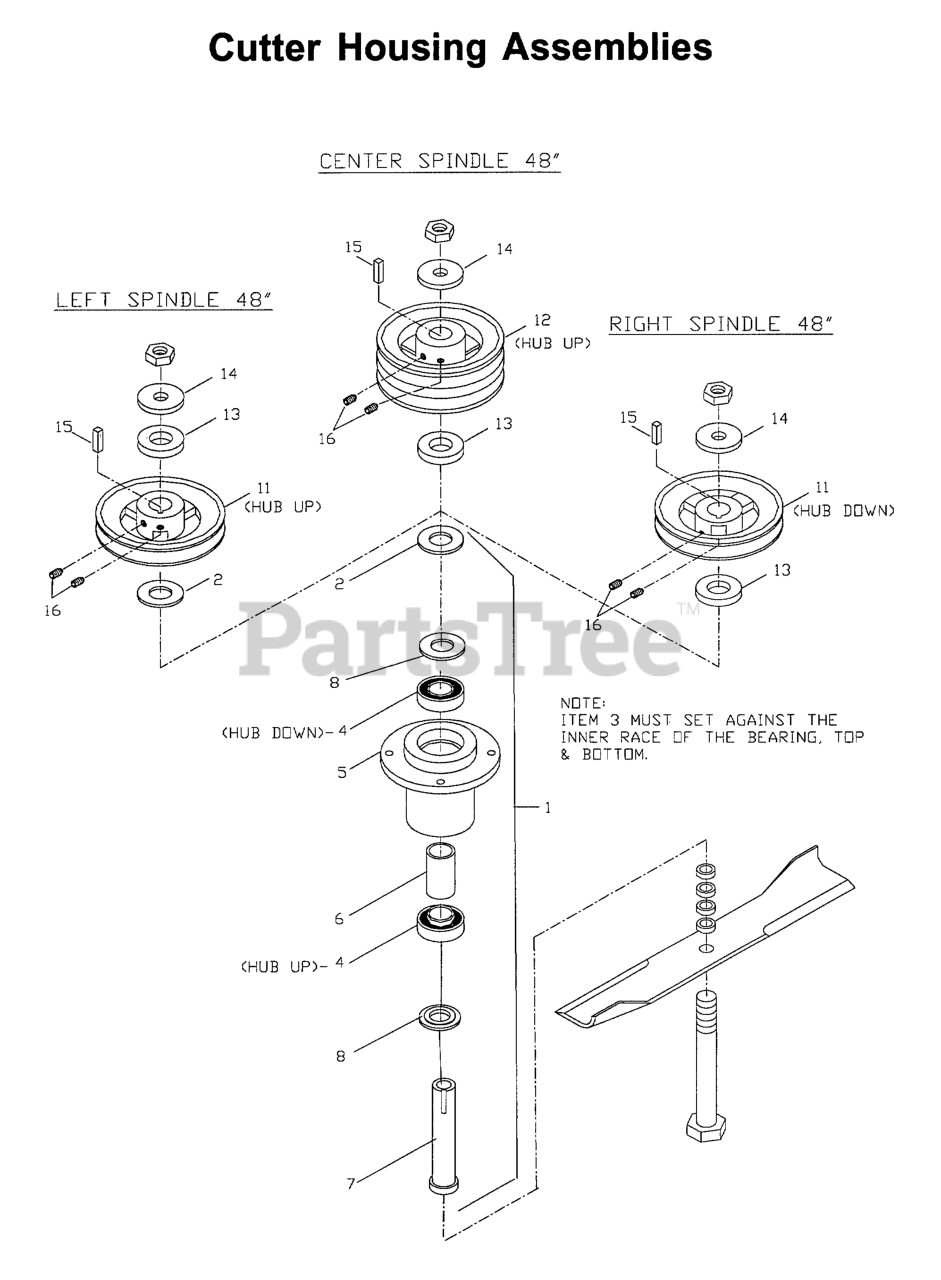

HOUSING Parts Diagram

  • Title

5

Husqvarna 539102673

HOUSING

$

$

Not available

6

Husqvarna 539102676

SPACER

$13.99

$

In Stock, Qty 12

0

8

Husqvarna 539107272

COMBO SPACER

$3.99

$

In Stock, Qty 5

0

1

Husqvarna 539102440

HOUSING ASSEMBLY
(Superseded to 539107418)

$

$

Not available

13

Husqvarna 539102245

SPACER

$

$

Not available

14

Husqvarna 539102243

WASHER, SUPPORT

$

$

Not available

11

Husqvarna 539976398

PULLEY W/SETSCREWS

$60.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539102675

MACHINERY BUSHING 10 GA.

$6.49

$

In Stock, Qty 11

0

7

Husqvarna 539102674

SPINDLE SHAFT

$

$

Not available

4

Husqvarna 539102677

BEARING
(Superseded to 539115279)

$37.99

$

In Stock, Qty 20+

0

12

Husqvarna 539101819

PULLEY, DOUBLE W/SETS

$145.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539101995

KEY 1/4 SQ X 1 1/8

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539976956

SET SCREW 5/16 NYLOC

$3.99

$

Usually ships in 3-10 days

0
