WH 4817 A (968999106) - Husqvarna 48" Walk-Behind Mower (2000-06) Hydraulic Assembly Parts Diagram

48" Walk-Behind Mower

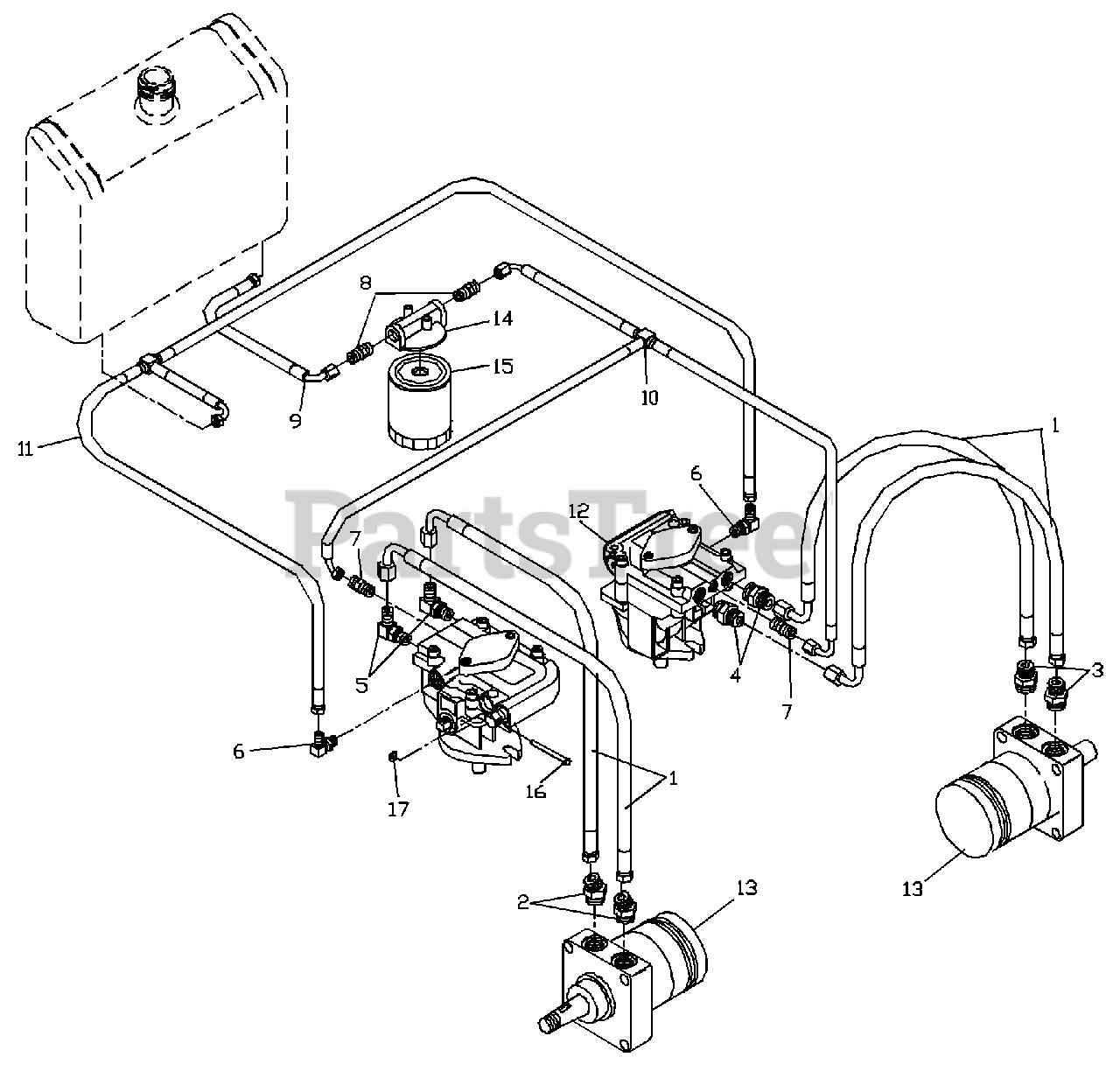

Hydraulic Assembly Parts Diagram

  • Title

1

Husqvarna 539101245

1/2" HYDRAULIC HOSE
(Superseded to 539102227)

$

$

Not available

2

Husqvarna 539101243

45 DEG. ELBOW
(Superseded to 539132561)

$34.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539101239

STRAIGHT CONNECTOR
(Superseded to 539101237)

$12.99

$

In Stock, only 3 left!

0

4

Husqvarna 539101237

STRAIGHT CONNECTOR

$12.99

$

In Stock, only 3 left!

0

5

Husqvarna 539101242

90 DEG. ELBOW

$26.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539101238

90 DEG. ELBOW

$15.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539101236

STRAIGHT CONNECTOR

$

$

Not available

8

Husqvarna 539103316

STRAIGHT CONNECTOR

$8.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539101248

HOSE
(Superseded to 539102227)

$

$

Not available

10

Husqvarna 539102229

INLET TEE HOSE

$54.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539102230

RETURN TEE HOSE

$48.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539101111

PUMP

$1821.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539101110

WHEEL MOTOR
(Superseded to 539103527)

$

$

Not available

14

Husqvarna 539101165

FILTER HEAD

$46.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539102606

FILTER

$44.99

$

In Stock, Qty 6

0

16

Husqvarna 539102233

CLEVIS PIN

$1.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539102234

PUSH NUT

$3.99

$

Usually ships in 3-10 days

0
