WH 4817 A (968999106) - Husqvarna 48" Walk-Behind Mower (2000-06) Rear Deck Assembly Parts Diagram

48" Walk-Behind Mower

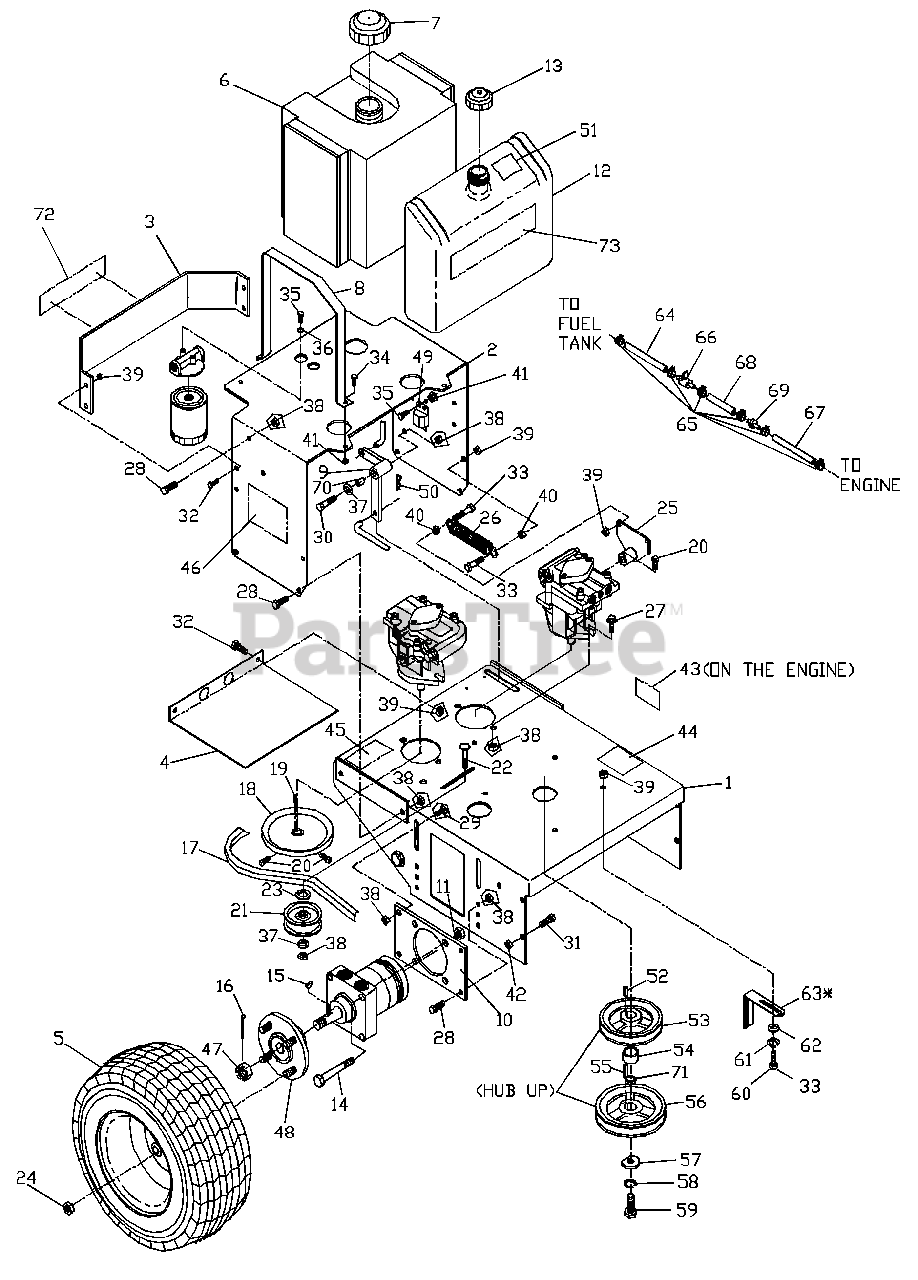

Rear Deck Assembly Parts Diagram

  • Title

1

Husqvarna 539104560

REAR DECK W/DECALS

$

$

Not available

2

Husqvarna 539102208

TANK SUPPORT, WLDMT.

$

$

Not available

3

Husqvarna 539101324

BUMPER

$

$

Not available

4

Husqvarna 539104547

LOWER BELTSHIELD

$

$

Not available

5

Husqvarna 539104553

WHEEL, COMPLETE

$

$

Not available

5

Husqvarna 539101548

TIRE

$

$

Not available

5

Husqvarna 539104628

RIM
(Superseded to 539105805)

$

$

Not available

5

Husqvarna 539912234

VALVE STEM

$4.99

$

In Stock, Qty 19

0

6

Husqvarna 539100135

FUEL TANK

$

$

Not available

7

Husqvarna 539914363

FUEL CAP

$

$

Not available

8

Husqvarna 539103007

TANK STRAP

$

$

Not available

9

Husqvarna 539103461

BELL CRANK

$

$

Not available

10

Husqvarna 539102219

MOTOR MOUNT, 36

$

$

Not available

10

Husqvarna 539102220

MOTOR MOUNT, 48

$

$

Not available

11

Husqvarna 539101331

NYLOC NUT 1/2C
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

12

Husqvarna 539104798

OIL TANK

$

$

Not available

13

Husqvarna 539101202

OIL CAP

$22.99

$

In Stock, only 2 left!

0

14

Husqvarna 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 3 left!

0

15

Husqvarna 539101465

KEY #808 WOODRUFF

$

$

Not available

16

Husqvarna 539990297

COTTERPIN

$

$

Not available

17

Husqvarna 539101228

BELT

$

$

Not available

18

Husqvarna 539102228

PULLEY

$

$

Not available

19

Husqvarna 539101177

KEY METRIC

$5.99

$

In Stock, only 2 left!

0

20

Husqvarna 539102717

5/16C X 5/8 SQ. HEAD

$3.49

$

In Stock, only 2 left!

0

21

Husqvarna 539919078

IDLER PULLEY

$31.99

$

In Stock, only 2 left!

0

22

Husqvarna 539100145

RHSNB 3/8C X 2
(Superseded to 595901401)

$3.49

$

In Stock, only 4 left!

0

23

Husqvarna 539990550

1/2 FLAT WASHER

$

$

Not available

24

Husqvarna 539101173

1/2F LUGNUT

$

$

Not available

25

Husqvarna 539102973

PUMP ARM WLDMT.

$

$

Not available

26

Husqvarna 539916159

SPRING

$6.99

$

In Stock, only 3 left!

0

27

Husqvarna 539990582

HFCS 3/8C X 1
(Superseded to 596583101)

$4.99

$

In Stock, Qty 15

0

28

Husqvarna 539990563

HCS 3/8C X 1
(Superseded to 596564401)

$4.99

$

In Stock, Qty 7

0

29

Husqvarna 539990645

RHSNB 3/8C X 1
(Superseded to 595316801)

$4.99

$

In Stock, only 2 left!

0

30

Husqvarna 539990588

HCS 3/8C X 2

$4.99

$

In Stock, only 2 left!

0

31

Husqvarna 539100143

HCS 7/16C X 1
(Superseded to 596238601)

$3.49

$

In Stock, only 2 left!

0

32

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

33

Husqvarna 539990669

HCS 5/16C X 1 3/4
(Superseded to 874780528)

$5.99

$

Usually ships in 3-10 days

0

33

HCS 5/16C X 1 3/4

Note: (17 KAW. ONLY)

$

$

Not available

34

Husqvarna 539990548

HCS 1/4C X 1

$3.49

$

In Stock, only 1 left!

0

35

Husqvarna 539990072

HCS 1/4C X 5/8
(Superseded to 596582501)

$3.49

$

In Stock, only 1 left!

0

36

Husqvarna 539990052

1/4 LOCKWASHER
(Superseded to 596564801)

$3.49

$

Usually ships in 3-10 days

0

37

Husqvarna 539990517

3/8 FLAT WASHER
(Superseded to 596433701)

$3.49

$

In Stock, Qty 20+

0

38

Husqvarna 539990546

NUT 3/8C CENTERLOCK

$

$

Not available

39

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$

$

Not available

39

(17 Kawasaki only)

$

$

Not available

40

Husqvarna 539990585

NUT 5/16C WHIZ

$

$

Not available

41

Husqvarna 539990372

NUT 1/4C CENTERLOCK
(Superseded to 539990761)

$3.49

$

In Stock, only 4 left!

0

42

Husqvarna 539990839

NUT 7/16C CENTERLOCK

$3.49

$

In Stock, only 2 left!

0

43

Husqvarna 539100128

DECAL, DANGER

$

$

Not available

44

Husqvarna 539101881

DECAL, PROP. 65
(Superseded to 596024201)

$

$

Not available

45

Husqvarna 539100361

DECAL, DANGER

$

$

Not available

46

Husqvarna 539104789

DECAL, SMALL CROWN

$

$

Not available

47

Husqvarna 539101468

HEX SLOTTED NUT

$

$

Not available

48

Husqvarna 539101109

HUB

$

$

Not available

49

Husqvarna 539101781

MODULE

$

$

Not available

50

Husqvarna 539976988

#2 HAIRPIN
(Superseded to 596580601)

$4.99

$

In Stock, only 3 left!

0

51

Husqvarna 539101059

DECAL, HYD. FLUID

$

$

Not available

52

Husqvarna 539102067

KEY 1/4SQ. X 3/4

$6.99

$

In Stock, only 4 left!

0

53

Husqvarna 539101719

PULLEY

$

$

Not available

54

Husqvarna 539101720

SPACER

$

$

Not available

55

Husqvarna 539101995

KEY 1/4SQ. X 1 1/8

$

$

Not available

56

Husqvarna 539101834

PULLEY

$62.99

$

In Stock, only 1 left!

0

57

Husqvarna 539100132

CRANKSHAFT WASHER

$6.99

$

In Stock, only 1 left!

0

58

Husqvarna 539990247

SLW 7/16 STD
(Superseded to 596238901)

$3.49

$

In Stock, Qty 17

0

59

Husqvarna 539100142

HCS M10-1.5X35MM

Note: (14 Kawasaki)

$

$

Not available

59

Husqvarna 539100141

HCS 7/16F X 1.5

Note: (17 Kawasaki); (Kohler15)

$

$

Not available

60

Husqvarna 539977692

HCS M8-1.25X35MM

Note: (14 Kawasaki)

$

$

Not available

60

Husqvarna 539100567

HCS M8-1.25 X 30MM GR8

Note: (Kohler)

$3.49

$

Usually ships in 3-10 days

0

61

Husqvarna 539990187

SLW 5/16 STD.
(Superseded to 596238801)

Note: (14 Kawasaki)

$3.49

$

In Stock, only 3 left!

0

62

Husqvarna 539990692

WASHER 5/16 STD.
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

63

Husqvarna 539102036

BELT GUIDE

$

$

Not available

63

Husqvarna 539103462

BELT GUIDE

Note: (48" MODELS)

$

$

Not available

63

(36" MODEL)

Note: See operator's manual for location of Belt Guides (item 63).

$

$

Not available

63

Husqvarna 539103463

BELT GUIDE

Note: (36" MODEL)

$

$

Not available

64

Husqvarna 539923479

16" GAS LINE

Note: (Kawasaki only)

$

$

Not available

65

Husqvarna 539912222

HOSE CLAMP

Note: (Kawasaki)

$3.49

$

Usually ships in 3-10 days

0

65

HOSE CLAMP

Note: (Kohler)

$

$

Not available

66

Husqvarna 539916325

FUEL VALVE

$13.99

$

In Stock, only 1 left!

0

67

Husqvarna 539932956

10" GAS LINE

$

$

Not available

68

Husqvarna 539977351

3 1/2" GAS LINE

Note: (Kawasaki only)

$

$

Not available

68

Husqvarna 539104993

14" GAS LINE

Note: (Kohler)

$9.49

$

Usually ships in 3-10 days

0

69

Husqvarna 539914359

FUEL FILTER

Note: (Kawasaki only)

$

$

Not available

70

Husqvarna 539101836

SLEEVE BUSHING

$5.99

$

Usually ships in 3-10 days

0

71

Husqvarna 539102050

MACHINE BUSHING

$

$

Not available

72

Husqvarna 539104787

DECAL, HUSQVARNA

$

$

Not available

73

Husqvarna 539104788

DECAL, WH 3614

$

$

Not available

73

Husqvarna 539104792

DECAL, WH 4817

$

$

Not available

73

Husqvarna 539104832

DECAL, WH3615

$

$

Not available
