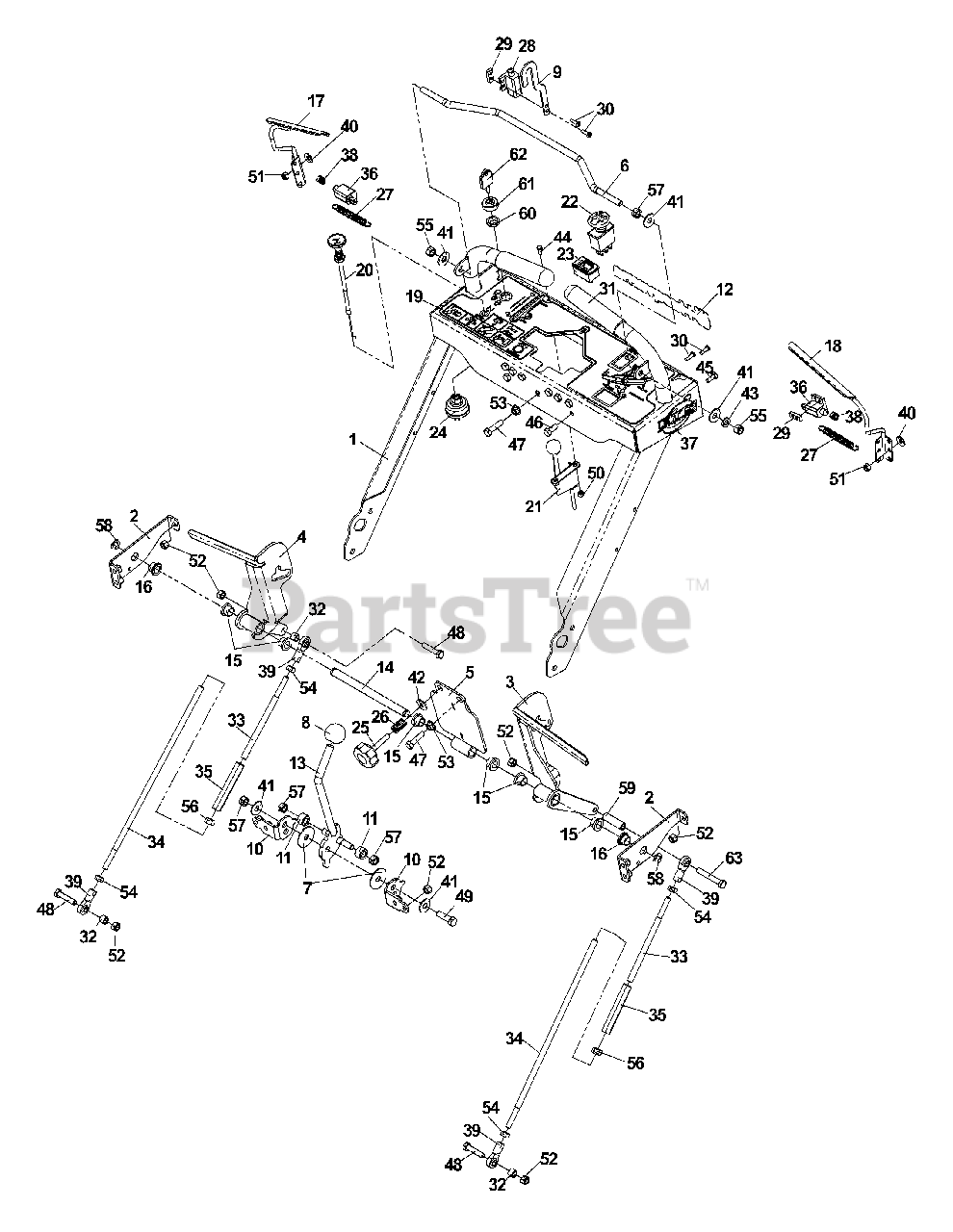

WH 4817 EFQ (968999252) - Husqvarna 48" Walk-Behind Mower (2005-08) Handle Assembly Parts Diagram

48" Walk-Behind Mower

Handle Assembly Parts Diagram

  • Title

1

Husqvarna 539109808

HANDLE
(Superseded to 539110580)

$

$

Not available

2

Husqvarna 539109809

BRACE

$8.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539112289

DRIVE LEVER, LEFT

$

$

Not available

4

Husqvarna 539112291

DRIVE LEVER, RIGHT

$51.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539109816

TRACKING PLATE

$28.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539109822

BAIL

$18.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539102998

WASHER, FRICTION

$8.99

$

In Stock, Qty 10

0

8

Husqvarna 539100147

KNOB, SHIFT

$8.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539109817

ARM, NEUTRAL

$

$

Not available

10

Husqvarna 539109614

PLATE, FRICTION

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539109612

ROLLER

$

$

Not available

12

Husqvarna 539104787

DECAL, HUSQVARNA

$

$

Not available

13

Husqvarna 539109820

LEVER, GROUND SPEED

$26.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539109821

SHAFT, CROSS

$

$

Not available

15

Husqvarna 539100032

BUSHING, NYLON FLANGED

$

$

Not available

16

Husqvarna 539110552

BUSHING, FLANGED

$7.49

$

Usually ships in 3-10 days

0

17

Husqvarna 539109828

OP, RIGHT

$

$

Not available

18

Husqvarna 539109826

OP, LEFT

$

$

Not available

19

Husqvarna 539110666

DECAL, CONSOLE

$

$

Not available

20

Husqvarna 539102733

CONTROL, CHOKE

$47.99

$

In Stock, Qty 7

0

21

Husqvarna 539102732

CABLE, THROTTLE

$

$

Not available

22

Husqvarna 539101768

SWITCH, CLUTCH
(Superseded to 582107601)

$13.99

$

In Stock, Qty 20+

0

23

Husqvarna 539110074

HOURMETER
(Superseded to 576179401)

$34.99

$

In Stock, Qty 7

0

24

Husqvarna 539101770

SWITCH, IGNITION

$

$

Not available

25

Husqvarna 539103003

KNOB, ADJUSTMENT

$

$

Not available

26

Husqvarna 539101224

SPRING

$7.49

$

Usually ships in 3-10 days

0

27

Husqvarna 539977250

SPRING

$

$

Not available

28

Husqvarna 539101080

SWITCH, N.C.

$7.49

$

In Stock, Qty 20+

0

29

Husqvarna 539102678

PLATE, TAPPED

$15.99

$

In Stock, only 4 left!

0

30

Husqvarna 539976952

SCREW, #10-24 X 5/8, MACHINE
(Superseded to 596039001)

$3.99

$

In Stock, Qty 20+

0

31

Husqvarna 539105842

GRIP

$

$

Not available

32

Husqvarna 539102827

SPACER, PULLEY

$6.49

$

In Stock, only 2 left!

0

33

Husqvarna 539109615

LINKAGE, SHORT

$24.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539109773

LINKAGE, LOWER

$24.99

$

In Stock, only 2 left!

0

35

Husqvarna 539109149

TURNBUCKLE, 3/8

$48.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539923408

SWITCH N.C.

$10.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539106599

DECAL, ETS

$

$

Not available

38

Husqvarna 539110509

SPRING, SWITCH

$

$

Not available

39

Husqvarna 539102590

BALL END, RIGHT

$27.99

$

In Stock, only 2 left!

0

40

Husqvarna 539990598

WASHER, 1/4

$

$

Not available

41

Husqvarna 539990517

WASHER, 3/8

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539990692

WASHER, 5/16
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

43

Husqvarna 539990118

LOCKWASHER, 3/8
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

44

Husqvarna 539990411

HCS, #10-24 X 1/2

$3.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539990072

HCS, 1/4-20 X 5/8

$3.99

$

In Stock, only 3 left!

0

46

Husqvarna 539976934

HCS, 5/16-18 X 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

47

Husqvarna 539100469

HCS, 5/16-18 X 1 1/4
(Superseded to 539990627)

$4.99

$

In Stock, Qty 10

0

48

Husqvarna 539976935

HCS, 5/16-18 X 1 1/2

$1.49

$

Usually ships in 3-10 days

0

49

Husqvarna 539976941

HCS, 3/8-16 X 1 1/4

$4.99

$

In Stock, Qty 6

0

50

Husqvarna 539976977

NUT, #10-24, NYLOC

$

$

Not available

51

Husqvarna 539976978

NUT, 1/4-20, NYLOC
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

52

Husqvarna 539990717

NUT, 5/16-18, NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

53

Husqvarna 539990585

NUT, 5/16-18

$3.99

$

Usually ships in 3-10 days

0

54

Husqvarna 539990223

NUT, 5/16-24

$3.99

$

Usually ships in 3-10 days

0

55

Husqvarna 539976979

NUT, 3/8-16, NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

56

Husqvarna 539990155

NUT, 3/8-24

$4.99

$

In Stock, Qty 16

0

57

Husqvarna 539990546

NUT, 3/8-16, CENTER LOCK

$

$

Not available

58

Husqvarna 539101949

E-RING, 1/2"

$3.99

$

Usually ships in 3-10 days

0

59

Husqvarna 539109023

SPACER

$4.99

$

Usually ships in 3-10 days

0

60

Husqvarna 539103177

NUT, IGNITION SWITCH

$3.99

$

In Stock, only 3 left!

0

61

Husqvarna 539103178

CAP, IGNITION SWITCH NUT

$4.99

$

In Stock, only 2 left!

0

62

Husqvarna 539104812

KEY, PADDED GRIP

$6.49

$

In Stock, only 2 left!

0

63

Husqvarna 539101721

HCS, 5/16-18 X 2 3/4

$4.99

$

In Stock, Qty 16

0

Husqvarna 539110663

UPPER HARNESS

Note: (NOT SHOWN)

$109.99

$

Usually ships in 3-10 days

0

Husqvarna 539976856

PLASTIC TIE

Note: (NOT SHOWN)

$3.99

$

Usually ships in 3-10 days

0
