WH 4817 EFQ (968999252) - Husqvarna 48" Walk-Behind Mower (2005-08) Power Unit Parts Diagram

48" Walk-Behind Mower

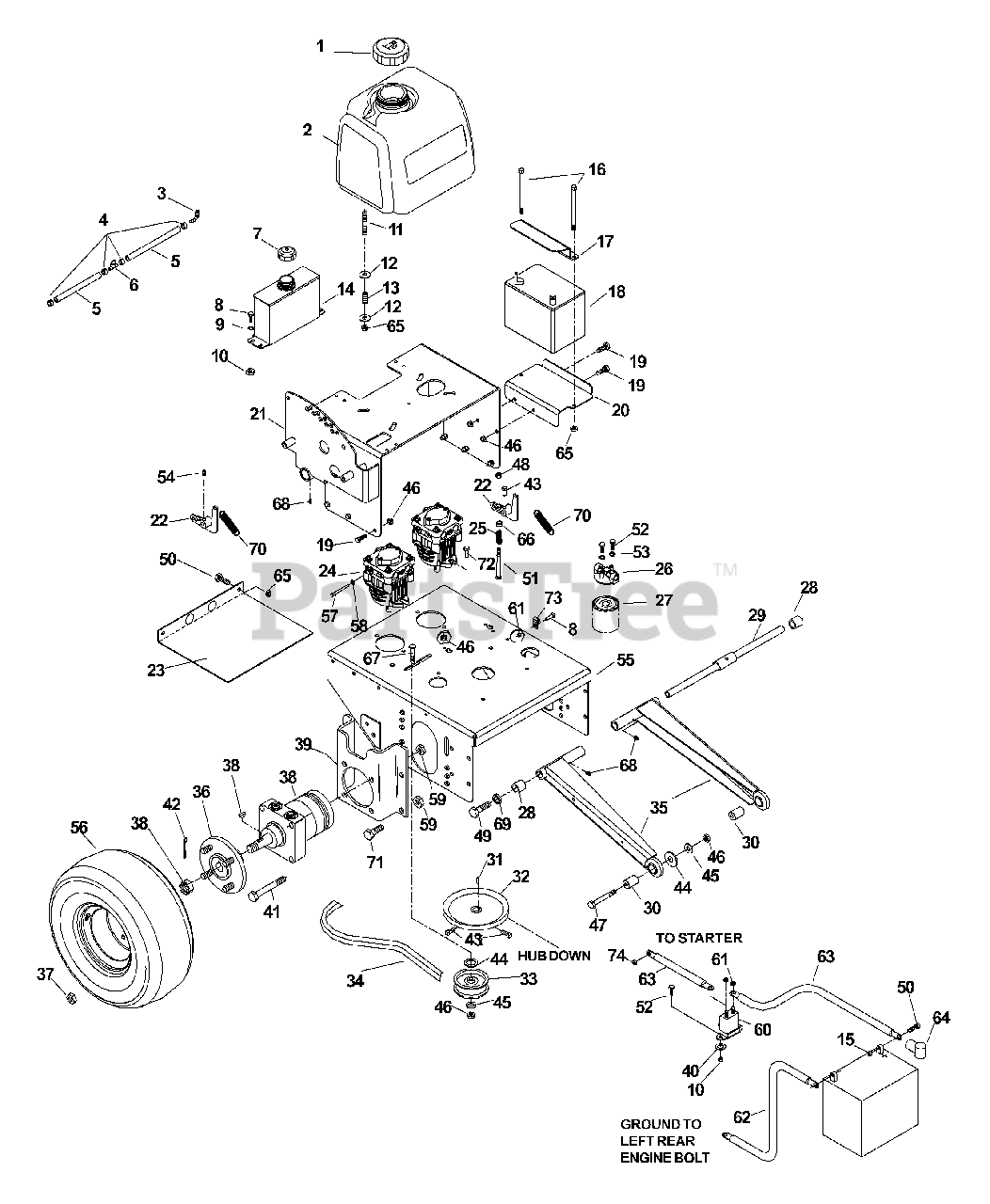

Power Unit Parts Diagram

  • Title

1

Husqvarna 539106188

FUEL CAP
(Superseded to 539130394)

$31.99

$

In Stock, Qty 6

0

2

Husqvarna 539105630

FUEL TANK

$207.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539102650

FUEL FITTING

$6.49

$

In Stock, only 2 left!

0

4

Husqvarna 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

5

Husqvarna 539932956

HOSE 10"

$8.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539916325

FUEL VALVE

$47.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539101202

OIL CAP

$24.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539990580

HCS, 1/4C X 3/4

$3.99

$

In Stock, only 4 left!

0

9

Husqvarna 539990598

WASHER, 1/4

$

$

Not available

10

Husqvarna 539990761

NUT, 1/4, CENTER LOCK

$4.99

$

In Stock, only 4 left!

0

11

Husqvarna 539102502

STUD

$10.99

$

In Stock, Qty 5

0

12

Husqvarna 539990692

WASHER, 5/16
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

13

Husqvarna 539102845

SPRING

$4.99

$

In Stock, only 3 left!

0

14

Husqvarna 539105985

OIL TANK

$132.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539990184

NUT, 5/16, CENTER LOCK

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539105826

HCS, 5/16C X 7

$4.99

$

In Stock, only 1 left!

0

17

Husqvarna 539105942

BATTERY STRAP

$36.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539102436

BATTERY, DRY
(Superseded to 579411601)

$

$

Not available

19

Husqvarna 539990134

HCS, 3/8C X 3/4

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539105943

BATTERY TRAY

$33.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539105590

TANK SUPPORT

$

$

Not available

22

Husqvarna 539105913

PUMP ARM

$

$

Not available

23

Husqvarna 539104547

BELT SHIELD

$

$

Not available

24

Husqvarna 539108246

PUMP W/POPPETS
(Superseded to 539132147)

$

$

Not available

25

Husqvarna 539101224

SPRING

$7.49

$

Usually ships in 3-10 days

0

26

Husqvarna 539101165

FILTER HEAD

$46.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539102606

FILTER

$44.99

$

In Stock, Qty 10

0

28

Husqvarna 539105806

SPACER

$27.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539106446

STRUT SHAFT

$

$

Not available

30

Husqvarna 539105641

SPACER, FRONT

$18.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539101177

KEY, METRIC

$8.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539102228

PULLEY

$42.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539919078

IDLER PULLEY

$37.99

$

In Stock, Qty 9

0

34

Husqvarna 539101228

BELT

$46.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539105577

STRUT

$218.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539101109

HUB

$

$

Not available

37

Husqvarna 539101173

LUG NUT

$

$

Not available

38

Husqvarna 539103527

HYD. MOTOR

$

$

Not available

38

Husqvarna 539103664

SEAL KIT

$461.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539106491

MOTOR MOUNT

$35.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539990053

IT LOCKWASHER, 1/4

$3.99

$

In Stock, only 3 left!

0

41

Husqvarna 539101332

HCS 1/2C X 2 3/4

$4.99

$

In Stock, only 4 left!

0

42

Husqvarna 539990297

COTTER PIN

$3.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539102717

SET SCR. 5/16 X 5/8

$3.99

$

In Stock, Qty 6

0

44

Husqvarna 539990550

WASHER, 1/2

$3.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539990517

WASHER, 3/8

$3.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539990546

NUT, 3/8, CENTER LOCK

$

$

Not available

47

Husqvarna 539990629

HCS, 3/8C X 2 1/4
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

48

Husqvarna 539976979

NUT, 3/8C, NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

49

Husqvarna 539990646

HCS, 1/2 X 1

$3.99

$

Usually ships in 3-10 days

0

50

Husqvarna 539976934

HCS, 5/16C X 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

51

Husqvarna 539106492

HCS, 3/8C X 2 3/4

$3.99

$

Usually ships in 3-10 days

0

52

Husqvarna 539990072

HCS, 1/4C X 5/8

$3.99

$

In Stock, only 3 left!

0

53

Husqvarna 539990052

LOCKWASHER, 1/4

$3.99

$

Usually ships in 3-10 days

0

54

Husqvarna 539105079

SET SCREW, 5/16-18 X 5/8

$

$

Not available

55

Husqvarna 539105647

REAR DECK

$

$

Not available

56

Husqvarna 539105805

TIRE /WHEEL ASM.

$194.99

$

Usually ships in 3-10 days

0

56

Husqvarna 539105535

TIRE

$206.99

$

Usually ships in 3-10 days

0

56

Husqvarna 539912234

VALVE

$6.49

$

In Stock, Qty 20+

0

56

Husqvarna 539104628

RIM
(Superseded to 539105805)

$194.99

$

Usually ships in 3-10 days

0

57

Husqvarna 539102233

CLEVIS PIN

$1.99

$

Usually ships in 3-10 days

0

58

Husqvarna 539102234

PUSH NUT

$3.99

$

Usually ships in 3-10 days

0

59

Husqvarna 539101331

NUT, 1/2C, NYLOC
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

60

Husqvarna 539101714

SOLINOID

$26.99

$

In Stock, Qty 20+

0

61

Husqvarna 539976978

NUT, 1/4, NYLOC
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

62

Husqvarna 539102758

NEGATIVE CABLE

$15.99

$

Usually ships in 3-10 days

0

63

Husqvarna 539103306

POSITIVE CABLE
(Superseded to 586108201)

$8.99

$

In Stock, only 1 left!

0

64

Husqvarna 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

65

Husqvarna 539990717

NUT, 5/16C, NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

66

Husqvarna 539923515

SPACER

$4.99

$

Usually ships in 3-10 days

0

67

Husqvarna 539100145

RHSNB, 3/8C X 2
(Superseded to 595901401)

$3.99

$

In Stock, Qty 14

0

68

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$2.49

$

In Stock, Qty 20+

0

69

Husqvarna 539990254

LOCKWASHER, 1/2

$3.99

$

Usually ships in 3-10 days

0

70

Husqvarna 539916159

SPRING, PUMP

$7.49

$

In Stock, Qty 5

0

71

Husqvarna 539990622

HFCS, 1/2C X 1 1/4

$4.99

$

Usually ships in 3-10 days

0

72

Husqvarna 539990582

HCS, 3/8C X 1

$

$

Not available

73

Husqvarna 539109867

CLAMP

$4.99

$

Usually ships in 3-10 days

0

74

Husqvarna 539108120

NUT, 1/4, THIN NYLOC

$3.99

$

In Stock, only 2 left!

0
