WH 4817 EFQ (968999252) - Husqvarna 48" Walk-Behind Mower (2005-08) Wiring Assembly Parts Diagram

48" Walk-Behind Mower

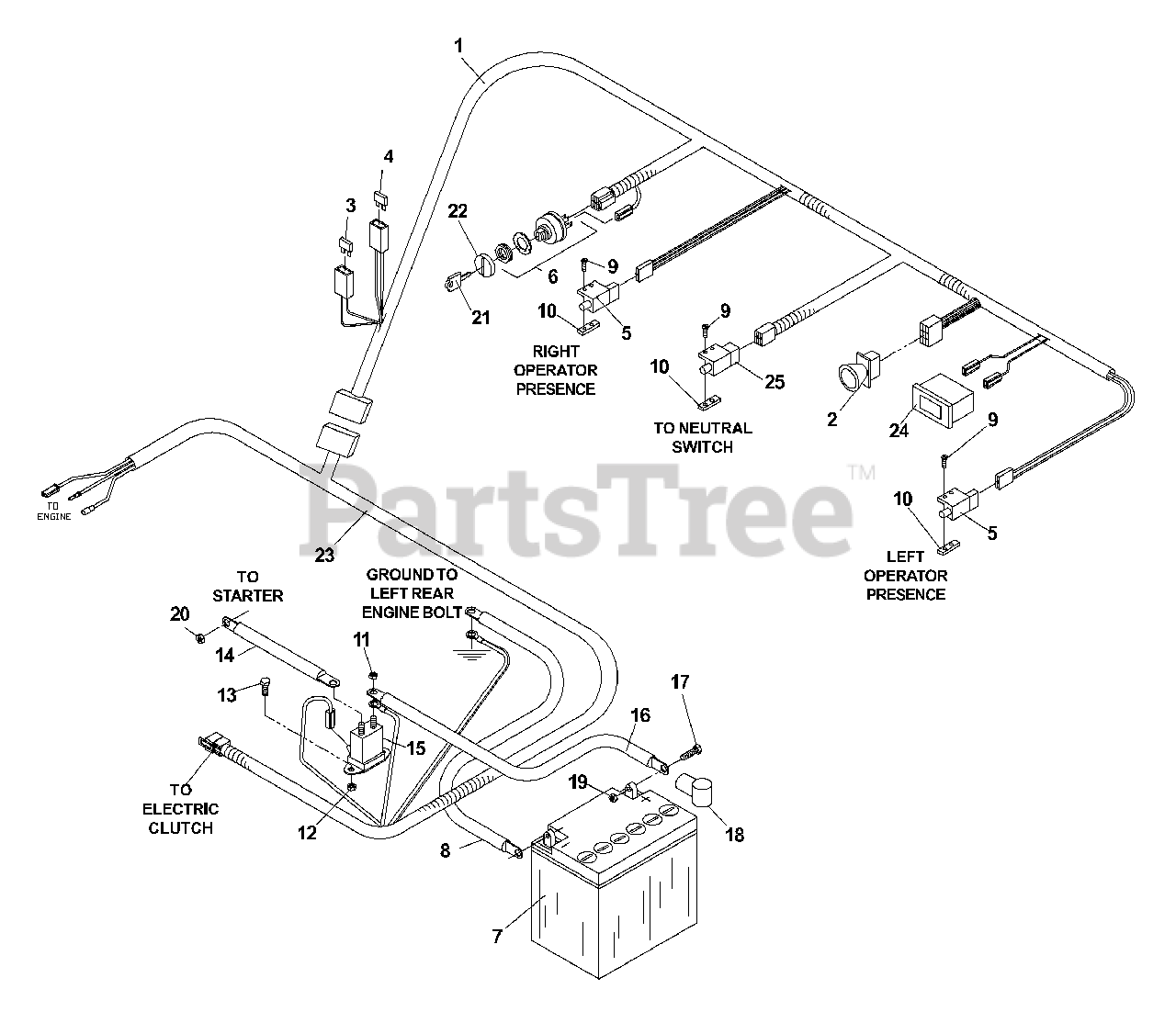

Wiring Assembly Parts Diagram

  • Title

1

Husqvarna 539110663

UPPER HARNESS

$109.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539101768

CLUTCH SWITCH
(Superseded to 582107601)

$13.99

$

In Stock, Qty 20+

0

3

Husqvarna 539102086

FUSE 20 AMP

$

$

Not available

4

Husqvarna 539101771

FUSE 7.5 AMP

$

$

Not available

5

Husqvarna 539923408

SWITCH N. C.

$10.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539101770

IGNITION SWITCH

$

$

Not available

6

Husqvarna 539103177

NUT, SWITCH

$3.99

$

In Stock, only 3 left!

0

7

Husqvarna 539102463

BATTERY
(Superseded to 579411601)

$

$

Not available

8

Husqvarna 539102758

NEG. CABLE

$15.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539976952

SCREW #10-24
(Superseded to 596039001)

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 539102678

TAPPED PLATE

$15.99

$

In Stock, only 4 left!

0

11

Husqvarna 539976978

NUT 1/4
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539990372

NUT 1/4 LOCK
(Superseded to 539990761)

$4.99

$

In Stock, only 4 left!

0

13

Husqvarna 539990072

HCS 1/4 X .625

$3.99

$

In Stock, only 3 left!

0

14

Husqvarna 539102757

POS. CABLE

$15.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539101714

SOLINOID

$26.99

$

In Stock, Qty 20+

0

16

Husqvarna 539103306

POS. CABLE LONG
(Superseded to 586108201)

$8.99

$

In Stock, only 1 left!

0

17

Husqvarna 539976934

HCS 5/16 X .750
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

19

Husqvarna 539990184

NUT 5/16 CTR. LOCK

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539108120

NUT 1/4 THIN NYLOC

$3.99

$

In Stock, only 2 left!

0

21

Husqvarna 539104812

KEY

$6.49

$

In Stock, only 2 left!

0

22

Husqvarna 539103178

COVER

$4.99

$

In Stock, only 2 left!

0

23

Husqvarna 539110662

LOWER HARNESSS

$56.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539110074

HOUR METER
(Superseded to 576179401)

$34.99

$

In Stock, Qty 7

0

25

Husqvarna 539101080

2 POLE SWITCH

$7.49

$

In Stock, Qty 20+

0
