WH 4817 EFQ (968999252) - Husqvarna 48" Walk-Behind Mower (2006-12) 48" Cutting Deck Parts Diagram

48" Walk-Behind Mower

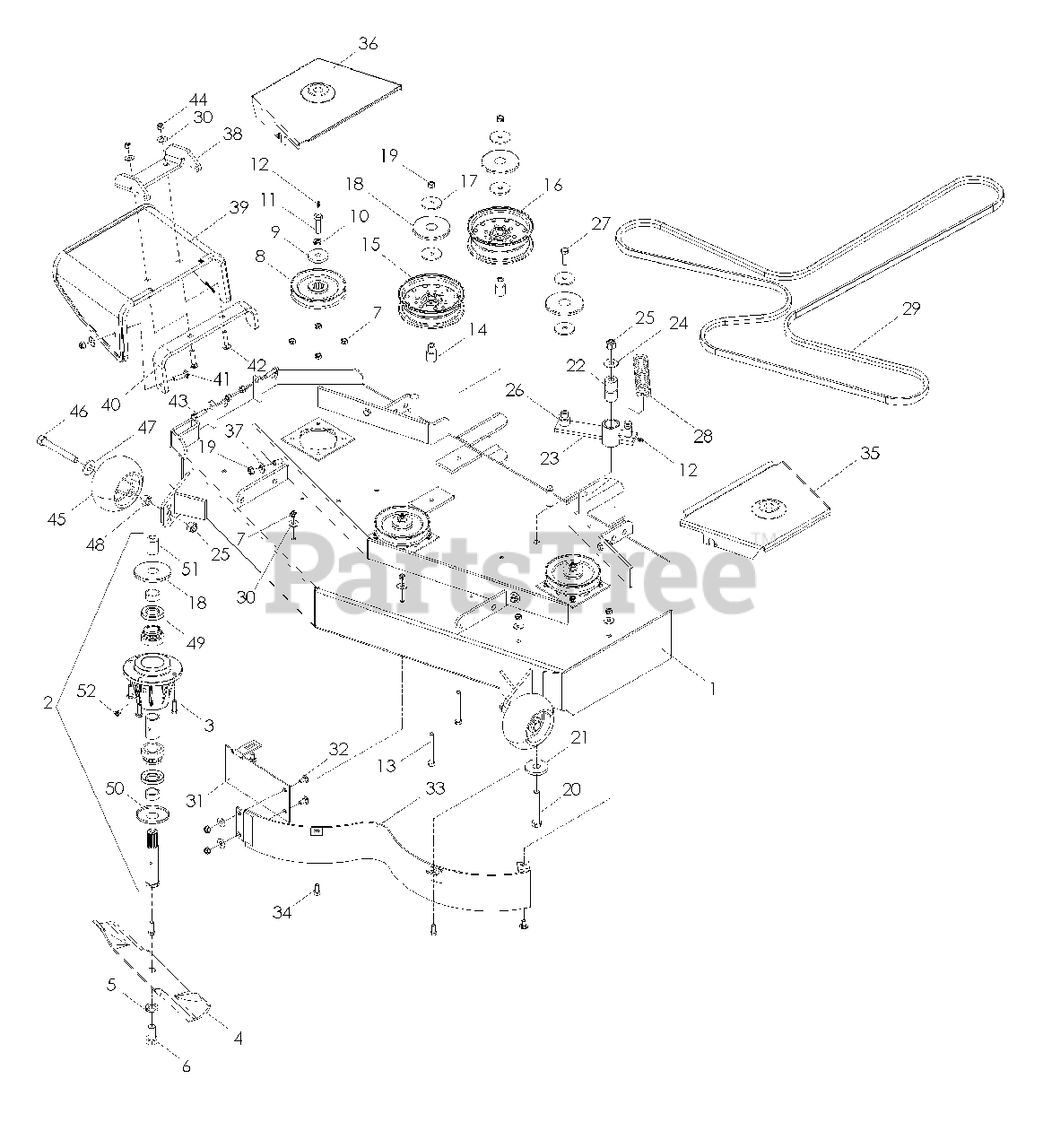

48" Cutting Deck Parts Diagram

  • Title

1

Husqvarna 539106576

DECK W/DECALS

$755.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539112934

SPINDLE ASM
(Superseded to 966956101)

$145.99

$

In Stock, Qty 20+

0

3

Husqvarna 539990209

HCS 5/16-18 x 1

$3.49

$

Usually ships in 3-10 days

0

4

Husqvarna 539100340

BLADE 16 1/4

$15.99

$

In Stock, Qty 12

0

5

Husqvarna 539990333

WASHER 5/8 SLW

$1.49

$

In Stock, Qty 6

0

6

Husqvarna 539103299

HCS 5/8-18 x 1 1/4

$7.49

$

In Stock, only 2 left!

0

7

Husqvarna 539990184

NUT 5/16-18 HEX CTRLK

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539112141

PULLEY

$42.99

$

In Stock, Qty 11

0

9

Husqvarna 539106504

WASHER, HEAVY

$

$

Not available

10

Husqvarna 539990247

WASHER 7/16 SLW

$

$

Not available

11

Husqvarna 539112120

HCS 7/16-20 x 1 1/2 GR8 SPEC

$30.99

$

In Stock, only 1 left!

0

12

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$2.49

$

In Stock, Qty 20+

0

13

Husqvarna 539101341

HCS 3/8-16 x 3

$4.99

$

In Stock, Qty 20+

0

14

Husqvarna 539103295

BUSHING, IDLER

$9.99

$

In Stock, Qty 17

0

15

Husqvarna 539103257

PULLEY, IDLER

$74.99

$

In Stock, Qty 11

0

16

Husqvarna 539103258

PULLEY, IDLER

Note: (TALL)

$53.99

$

In Stock, Qty 8

0

17

Husqvarna 539111897

WASHER 3/8 SPECIAL

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539108450

TOP DUST CAP

$4.99

$

In Stock, only 2 left!

0

19

Husqvarna 539990546

NUT 3/8-16 HEX CNTRLK

$

$

Not available

20

Husqvarna 539103433

HCS 1/2-13 x 3 1/4

$4.99

$

In Stock, Qty 11

0

21

Husqvarna 539102243

WASHER, SUPPORT

$

$

Not available

22

Husqvarna 539103427

BUSHING, PIVOT

$7.49

$

In Stock, Qty 6

0

23

Husqvarna 539103230

ARM, IDLER

$

$

Not available

24

Husqvarna 539990550

WASHER 1/2 STD FLT

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

26

Husqvarna 539991043

BUSHING 5/8 MACHINERY

$3.99

$

In Stock, only 2 left!

0

27

Husqvarna 539976941

HCS 3/8-16 x 1 1/4

$4.99

$

In Stock, Qty 6

0

28

Husqvarna 539103256

SPRING

$12.99

$

In Stock, Qty 20+

0

29

Husqvarna 539109243

BELT, DECK

$85.99

$

In Stock, Qty 12

0

30

Husqvarna 539990692

WASHER 5/16 STD FLT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

31

Husqvarna 539105444

BAFFLE, CENTER

$72.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539990799

RHSNB 5/16-18 x 5/8
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

33

Husqvarna 539105448

BAFFLE, MAIN

$364.99

$

In Stock, only 1 left!

0

34

Husqvarna 539976934

HCS 5/16-18 x 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

35

Husqvarna 539108904

SHIELD, LT

$

$

Not available

36

Husqvarna 539108902

SHIELD, RT

$

$

Not available

37

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539130916

BRACKET, PIVOT

$36.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539130903

CHUTE, RUBBER

$60.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539130922

REINFORCEMENT, BRACKT

$

$

Not available

41

Husqvarna 539100472

RHSNB 5/16-18 x 1 1/4

$3.99

$

In Stock, Qty 20+

0

42

Husqvarna 539102933

RHSNB 5/16-18 x 1 1/2

$

$

Not available

43

Husqvarna 539990627

HCS 5/16-18 x 1 1/4

$4.99

$

In Stock, Qty 10

0

44

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

45

Husqvarna 539107610

WHEEL, GAUGE
(Superseded to 532133957)

$13.99

$

In Stock, Qty 20+

0

46

Husqvarna 539108366

HCS 1/2-13 x 4

$6.49

$

In Stock, Qty 20+

0

47

Husqvarna 539109554

WASHER 1/2 FLAT

$

$

Not available

48

Husqvarna 539990258

NUT 1/2-13 HEX

$4.99

$

In Stock, Qty 15

0

49

Husqvarna 539108754

SEAL, SHAFT

$4.99

$

In Stock, Qty 19

0

50

Husqvarna 539108449

DUST CAP, BOTTOM

$4.99

$

In Stock, Qty 17

0

51

Husqvarna 539107419

CAP, VINYL

$

$

Not available

52

Husqvarna 539977326

GREASE POPPET

$13.99

$

In Stock, only 1 left!

0
