WH 4817 EFQ (968999252) - Husqvarna 48" Walk-Behind Mower (2006-12) Brake Parts Diagram

48" Walk-Behind Mower

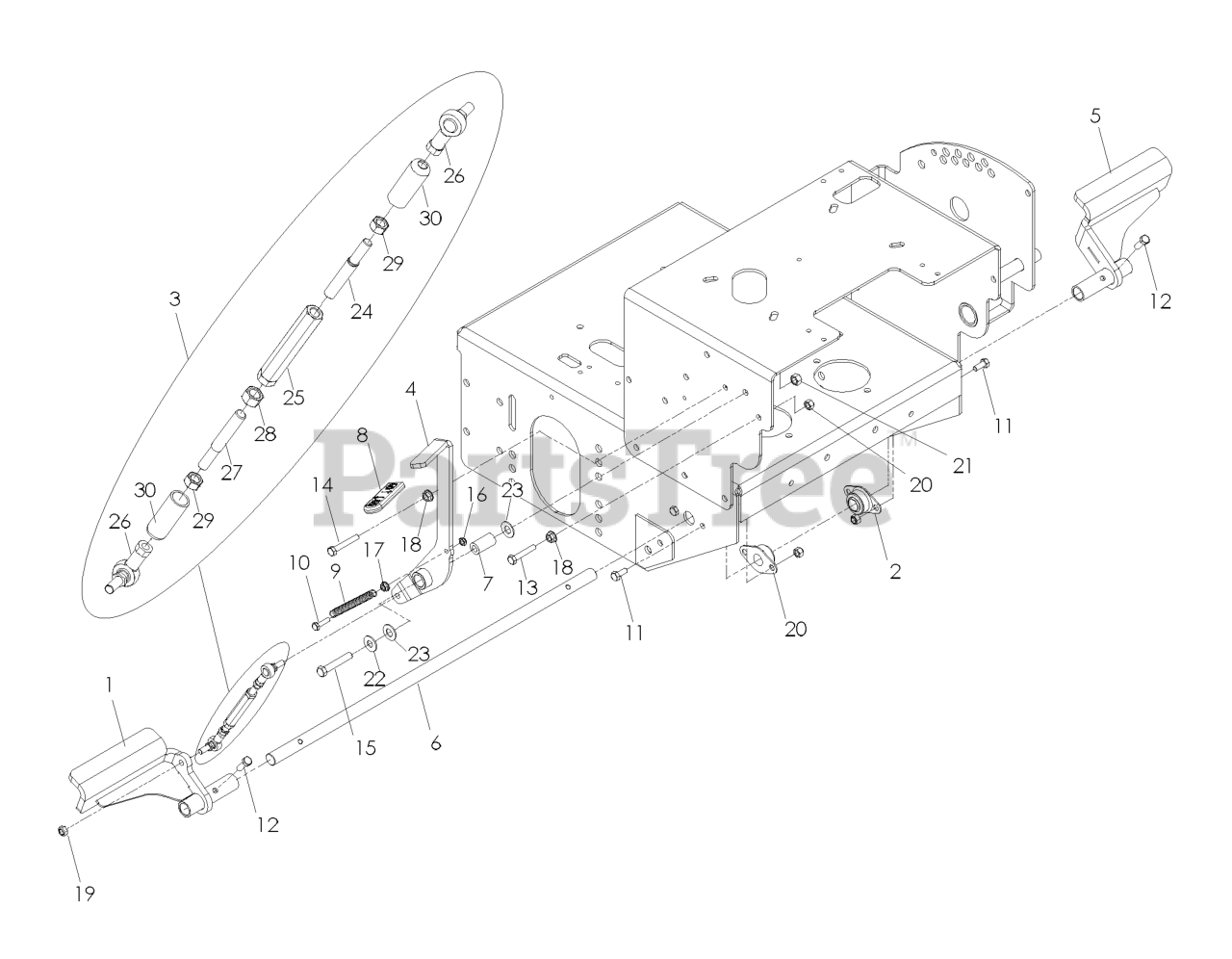

Brake Parts Diagram

  • Title

1

Husqvarna 539110355

SNUBBER, LEFT

$

$

Not available

2

Husqvarna 539102797

FLANGE BEARING

$9.49

$

Usually ships in 3-10 days

0

3

Husqvarna 539110347

LINKAGE, BRAKE

$193.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539110358

ARM, BRAKE

$42.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539110356

SNUBBER, RIGHT

$

$

Not available

6

Husqvarna 539110350

SHAFT, BRAKE

$

$

Not available

7

Husqvarna 539101836

BUSHING

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539109798

GRIP, PARK BRAKE

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539977250

SPRING

$

$

Not available

10

Husqvarna 539990548

HCS 1/4-20 x 1

$3.99

$

In Stock, only 1 left!

0

11

Husqvarna 539990206

HCS 5/16-18 x 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 539990209

HCS 5/16-18 x 1

$3.49

$

Usually ships in 3-10 days

0

13

Husqvarna 539990669

HCS 5/16-18 x 1 3/4
(Superseded to 874780528)

$7.49

$

In Stock, only 4 left!

0

14

Husqvarna 539976937

HCS 5/16-18 x 2

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539990588

HCS 3/8-16 x 2

$4.99

$

In Stock, Qty 12

0

16

Husqvarna 539108120

NUT 1/4-20 THIN NYLOC

$3.99

$

In Stock, only 2 left!

0

17

Husqvarna 539108735

NUT 1/4-20 WHIZLK

$4.99

$

In Stock, only 2 left!

0

18

Husqvarna 539990585

NUT 5/16-18 WHIZLK

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539990184

NUT 5/16-18 HEX CTRLK

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539102843

WASHER 7/16 SPRING
(Superseded to 539115528)

$3.99

$

In Stock, only 3 left!

0

24

Husqvarna 539110360

LINKAGE, RH
(Superseded to 539110347)

$193.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539109149

TURNBUCKLE 3/8

$48.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539110603

SPHERICAL ROD END RH

$40.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539110359

LINKAGE, LH

$

$

Not available

28

Husqvarna 539990155

NUT 3/8-24 HEX GR2

$4.99

$

In Stock, Qty 16

0

29

Husqvarna 539990223

NUT 5/16-24 HEX

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539132133

BOOT

$

$

Not available
