WH 4817 EFQ - Husqvarna 48" Walk-Behind Mower (2008-08) HANDLE & CONTROLS Parts Diagram

48" Walk-Behind Mower

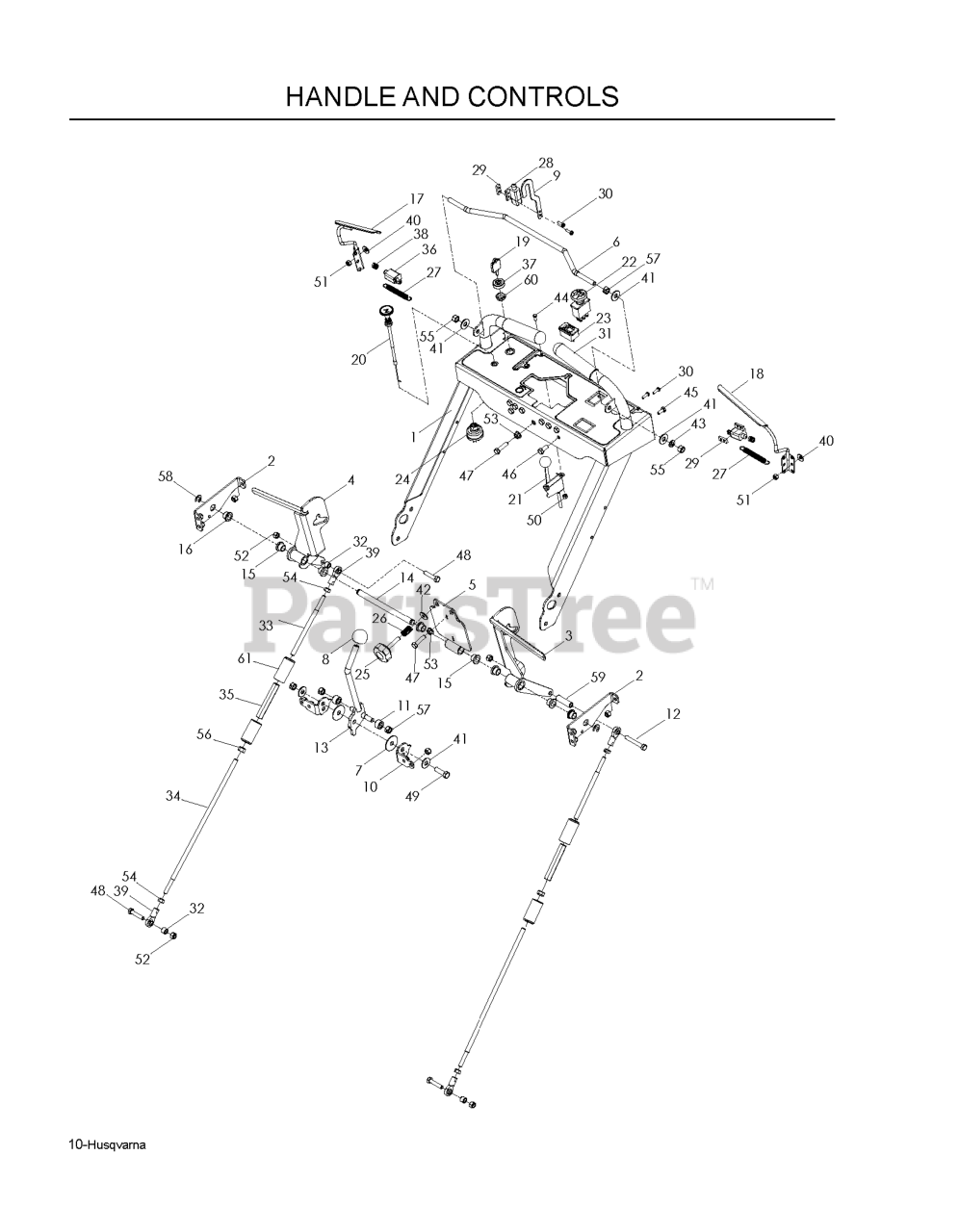

HANDLE & CONTROLS Parts Diagram

  • Title

54

Husqvarna 539990223

NUT 5/16F

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

56

Husqvarna 539990155

NUT 3/8F

$4.99

$

In Stock, Qty 16

0

50

Husqvarna 539976977

NUT 10-24 NYLOC

$

$

Not available

58

Husqvarna 539101949

E-RING 1/2 (2 2)

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539109822

BAIL

$18.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539923408

SWITCH

$10.99

$

Usually ships in 3-10 days

0

--

NEEDS DESCRIPTION

Note: NOT SHOWN

$

$

Not available

35

Husqvarna 539109149

TURNBUCKLE, 3/8

$48.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539109614

FRICTION PLATE

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539109821

CROSS SHAFT

$

$

Not available

16

Husqvarna 539110552

FLANGE BUSHING

$7.49

$

Usually ships in 3-10 days

0

25

Husqvarna 539103003

ADJUSTMENT KNOB

$

$

Not available

23

Husqvarna 539110074

HOUR METER
(Superseded to 576179401)

$34.99

$

In Stock, Qty 7

0

13

Husqvarna 539109820

GROUND SPEED LEVER

$26.99

$

Usually ships in 3-10 days

0

52

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

33

Husqvarna 539109615

SHORT LINKAGE

$24.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539110509

SPRING, SWITCH

$

$

Not available

45

Husqvarna 539990072

HCS 1/4C X 5/8

$3.99

$

In Stock, only 3 left!

0

60

Husqvarna 539103177

DNO IGNITION NUT

$3.99

$

In Stock, only 3 left!

0

32

Husqvarna 539102827

SPACER

$6.49

$

In Stock, only 2 left!

0

34

Husqvarna 539109773

LINKAGE, LOWER

$24.99

$

In Stock, only 2 left!

0

9

Husqvarna 539109817

NEUTRAL ARM

$

$

Not available

5

Husqvarna 539109816

TRACKING PLATE

$28.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539103178

CAP IGNITION NUT

$4.99

$

In Stock, only 2 left!

0

7

Husqvarna 539102998

WASHER, FRICTION

$8.99

$

In Stock, Qty 10

0

20

Husqvarna 539102733

CHOKE CONTROL, COMPLETE

$47.99

$

In Stock, Qty 7

0

19

Husqvarna 539104812

KEY-PADDED

$6.49

$

In Stock, only 2 left!

0

40

Husqvarna 539990598

WASHER 1/4 FLAT

$

$

Not available

39

Husqvarna 539102590

BALL JOINT, RIGHT HANDED

$27.99

$

In Stock, only 2 left!

0

30

Husqvarna 539976952

SCREW #10-24 X 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 20+

0

1

Husqvarna 539110580

HANDLE W/DECALS

$

$

Not available

44

Husqvarna 539990411

HCS #10-24 X 1/2

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539101080

SWITCH, INTERLOCK

$7.49

$

In Stock, Qty 20+

0

15

Husqvarna 539100032

BUSHING, FLANGED NYLON

$

$

Not available

46

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

41

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

53

Husqvarna 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539102678

TAPPED PLATE

$15.99

$

In Stock, Qty 9

0

12

Husqvarna 539101721

HCS 5/16C X 2-3/4

$4.99

$

In Stock, Qty 16

0

3

Husqvarna 539112289

DRIVE LEVER LT

$

$

Not available

61

Husqvarna 539132133

BOOT

$

$

Not available

55

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

57

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

21

Husqvarna 539102732

THROTTLE CONTROL W/BALL KNOB

$

$

Not available

31

Husqvarna 539105842

GRIP

$

$

Not available

48

Husqvarna 539976935

CAPSCREW 5/16 X 1/1/2 HEX HEAD

$1.49

$

Usually ships in 3-10 days

0

18

Husqvarna 539109826

LEFT OP

$

$

Not available

24

Husqvarna 539101770

IGNITION SWITCH KIT

$

$

Not available

49

Husqvarna 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 2 left!

0

59

Husqvarna 539109023

SPACER

$4.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539101768

RP.SWITCH, BLADE
(Superseded to 582107601)

$13.99

$

In Stock, Qty 20+

0

26

Husqvarna 539101224

SPRING

$7.49

$

Usually ships in 3-10 days

0

27

Husqvarna 539977250

SPRING

$

$

Not available

8

Husqvarna 539100147

KNOB

$8.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539990118

SLW 3/8 STD
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 539109828

RIGHT OP

$

$

Not available

4

Husqvarna 539112291

DRIVE LEVER RT

$51.99

$

Usually ships in 3-10 days

0

51

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539109612

ROLLER

$

$

Not available

2

Husqvarna 539109809

BRACE

$8.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539100469

BOLT, TAP 5/16-18
(Superseded to 539990627)

$4.99

$

In Stock, Qty 10

0
