WH 4817 EFQ - Husqvarna 48" Walk-Behind Mower (2008-08) POWER TRAIN Parts Diagram

48" Walk-Behind Mower

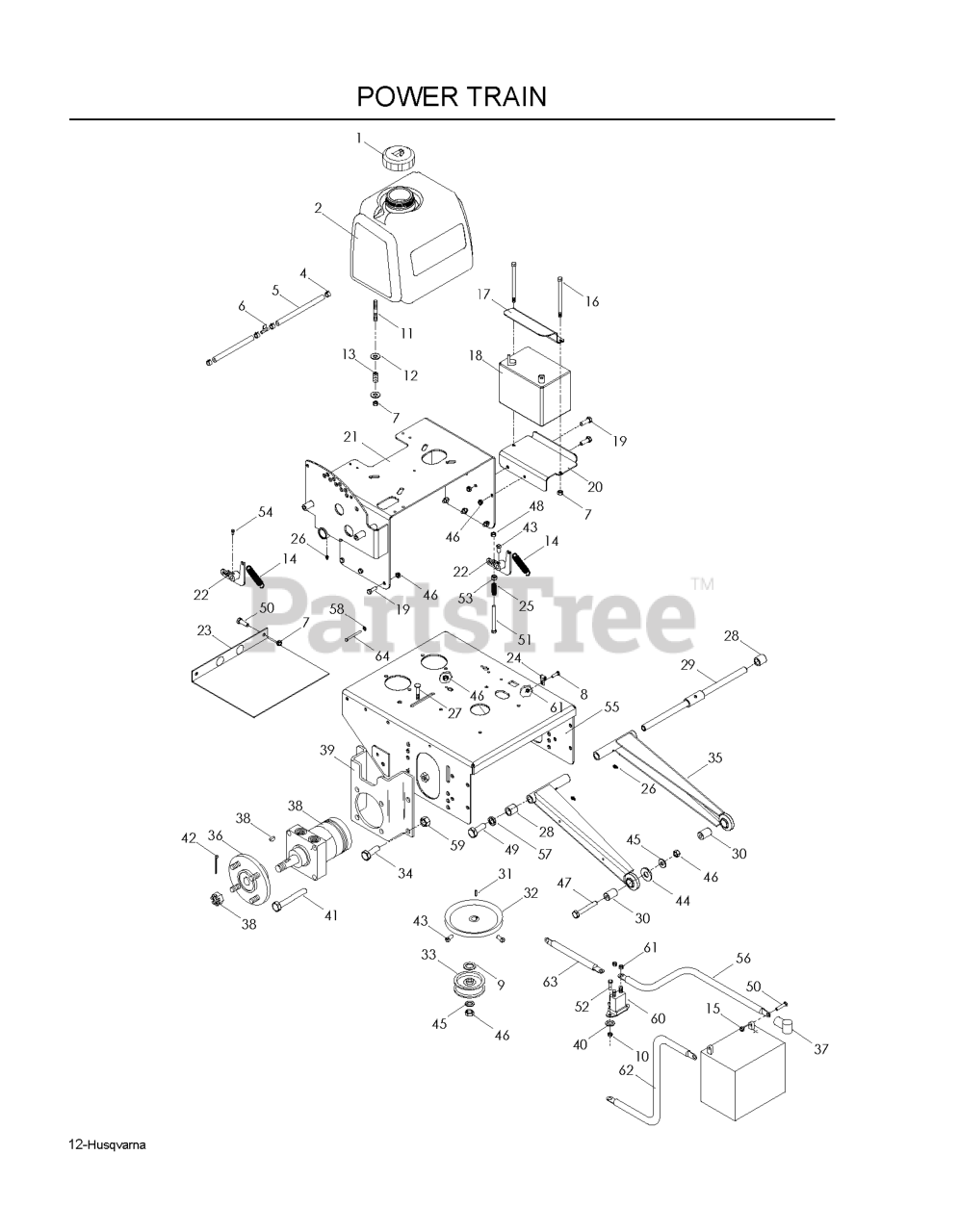

POWER TRAIN Parts Diagram

  • Title

46

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

52

Husqvarna 539990072

HCS 1/4C X 5/8

$3.99

$

In Stock, only 3 left!

0

29

Husqvarna 539106446

STRUT SHAFT

$

$

Not available

23

Husqvarna 539104547

LOWER BELT SHIELD

$

$

Not available

38

Husqvarna 539103527

WHEEL MOTOR

$

$

Not available

44

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

59

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

5

Husqvarna 539932956

GAS LINE 10"

$8.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

24

Husqvarna 539109867

DOUBLE TUBE CLAMP

$4.99

$

Usually ships in 3-10 days

0

61

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539990629

HCS 3/8C X 2 1/4
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539105943

BATTERY TRAY

$33.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539102717

SCREW 5/16C X 5/8 SQ HEAD

$3.99

$

In Stock, Qty 6

0

2

Husqvarna 539105630

FUEL TANK

$207.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539102845

SPRING

$4.99

$

In Stock, only 3 left!

0

33

Husqvarna 539919078

IDLER PULLEY

$37.99

$

In Stock, Qty 7

0

8

Husqvarna 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

In Stock, only 4 left!

0

16

Husqvarna 539105826

BOLT - 5/16 X 7

$4.99

$

In Stock, only 1 left!

0

15

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539990761

NUT 1/4C CENTER LOCK

$4.99

$

In Stock, only 4 left!

0

28

Husqvarna 539105806

SPACER

$27.99

$

Usually ships in 3-10 days

0

--

NEEDS DESCRIPTION

Note: NOT SHOWN

$

$

Not available

1

Husqvarna 539106188

FUEL CAP ANTI-SPLASH
(Superseded to 539130394)

$31.99

$

In Stock, only 4 left!

0

31

Husqvarna 539101177

KEY 5 MM SQ X 25 MM

$8.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539105641

FRONT SPACER

$18.99

$

Usually ships in 3-10 days

0

56

Husqvarna 539103306

CABLE POSITIVE, LONG
(Superseded to 586108201)

$8.99

$

In Stock, only 1 left!

0

53

Husqvarna 539923515

SPACER

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

45

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

63

Husqvarna 539103306

CABLE POSITIVE, LONG
(Superseded to 586108201)

$8.99

$

In Stock, only 1 left!

0

55

Husqvarna 539106572

REAR DECK

$

$

Not available

51

Husqvarna 539106492

HEX SCREW 3/8-20 X 2.75

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539916159

SPRING-TRANS

$7.49

$

In Stock, Qty 5

0

18

Husqvarna 539102436

BATTERY, 12 V 330 AMP
(Superseded to 579411601)

$

$

Not available

64

Husqvarna 539102233

CLEVIS PIN

$1.99

$

Usually ships in 3-10 days

0

50

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

42

Husqvarna 539990297

COTTER PIN

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539111897

WASHER, 3/8 SPEC

$3.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539990053

WASHER 1/4 INT TOOTH

$3.99

$

In Stock, only 3 left!

0

25

Husqvarna 539101224

SPRING

$7.49

$

Usually ships in 3-10 days

0

58

Husqvarna 539102234

NUT PUSH

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539916325

FUEL VALVE

$47.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539101109

HUB.WHEEL.ZTR

$

$

Not available

39

Husqvarna 539106491

MOTOR MOUNT

$35.99

$

Usually ships in 3-10 days

0

54

Husqvarna 539105079

5/16C X 5/8 "V" POINT

$

$

Not available

26

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$2.49

$

In Stock, Qty 20+

0

3

Husqvarna 539108120

JAM NUT 1/4C (2 2 PW01)

$3.99

$

In Stock, only 2 left!

0

62

Husqvarna 539102758

CABLE-NEGATIVE

$15.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539102502

STUD, 5/16C

$10.99

$

In Stock, Qty 5

0

60

Husqvarna 539101714

SOLENOID

$26.99

$

In Stock, Qty 20+

0

12

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

27

Husqvarna 539100145

RHSNB 3/8C X 2
(Superseded to 595901401)

$3.99

$

In Stock, Qty 13

0

41

Husqvarna 539101332

HCS 1/2C X 2 3/4

$4.99

$

In Stock, only 4 left!

0

22

Husqvarna 539105913

PUMP ARM WELDMENT

$

$

Not available

57

Husqvarna 539990254

WASHER 1/2" SPLIT LOCK

$3.99

$

Usually ships in 3-10 days

0

48

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

49

Husqvarna 539990646

HHCS 1/2-13 X 1

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539990134

SCREW 3/8C X 3/4 HEX CAP

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539105942

BATTERY STRAP

$36.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539102228

PULLEY

$42.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539990622

HCS 1/2C X 1 1/4 SERRATED HEAD

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

21

Husqvarna 539105590

TANK SUPPORT

$

$

Not available

35

Husqvarna 539105577

STRUT WELDMENT

$218.99

$

Usually ships in 3-10 days

0
