WH 4817 ETS (968999123) - Husqvarna 48" Walk-Behind Mower (2006-02) Cutter Housing Assemblies Parts Diagram

48" Walk-Behind Mower

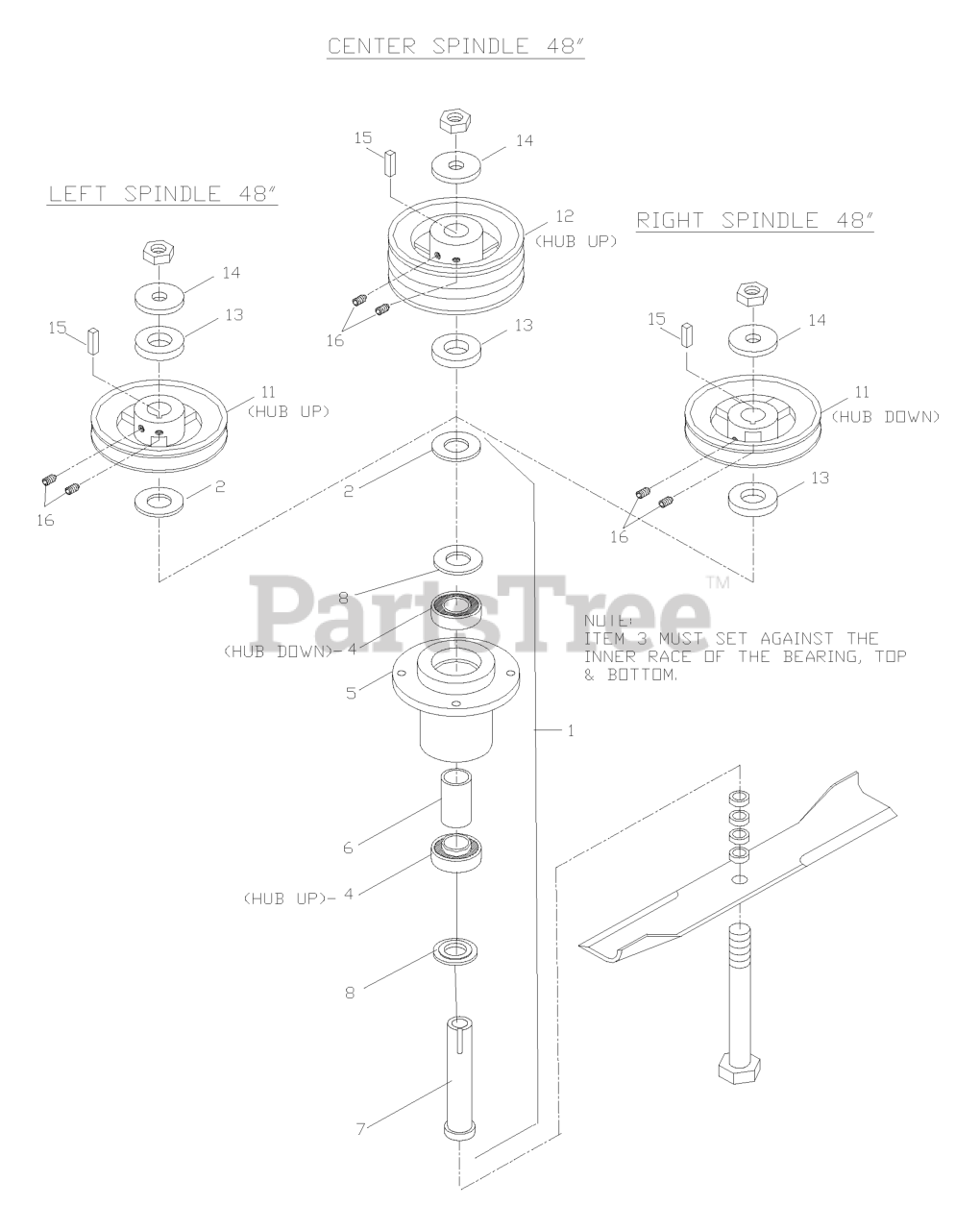

Cutter Housing Assemblies Parts Diagram

  • Title

1

Husqvarna 539102440

HOUSING ASSEMBLY
(Superseded to 539107418)

Note: (INCLUDES ITEMS 2 THRU 10) ITEM (1)IS USED IN CONJUCTION WITH DIFFERENT PULLEYS AND SPACERS.IT IS CRITICAL THAT YOU USE THE RIGHT SPACERS IN THE RIGHT LOCATION FOR THE DIFFERENT SPINDLE COMBINATIONS.(ALSO REFER TO THE KUTTER OPERATOR'S MANUAL).ITEM(1) WILL NOT WORK IF THESE ITEMS A RE NOT IN THEIR P

$

$

Not available

2

Husqvarna 539102675

MACHINERY BUSHING 10 GA.

$11.99

$

In Stock, only 3 left!

0

4

Husqvarna 539102677

BEARING
(Superseded to 539115279)

$35.99

$

In Stock, only 1 left!

0

5

Husqvarna 539102673

HOUSING

$

$

Not available

6

Husqvarna 539102676

SPACER

$10.99

$

In Stock, Qty 14

0

7

Husqvarna 539102674

SPINDLE SHAFT

$

$

Not available

8

Husqvarna 539107272

COMBO SPACER

$3.49

$

In Stock, Qty 20+

0

11

Husqvarna 539976398

PULLEY W/SETSCREWS

$

$

Not available

12

Husqvarna 539101819

PULLEY, DOUBLE W/SETS

$227.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539102245

SPACER

$

$

Not available

14

Husqvarna 539102243

WASHER, SUPPORT
(Superseded to 596437501)

$11.99

$

In Stock, only 2 left!

0

15

Husqvarna 539101995

KEY 1/4 SQ X 1 1/8

$

$

Not available

16

Husqvarna 539976956

SET SCREW 5/16 NYLOC

$

$

Not available
