WH 4817 ETS (968999123) - Husqvarna 48" Walk-Behind Mower (2006-02) Power Unit Assembly Parts Diagram

48" Walk-Behind Mower

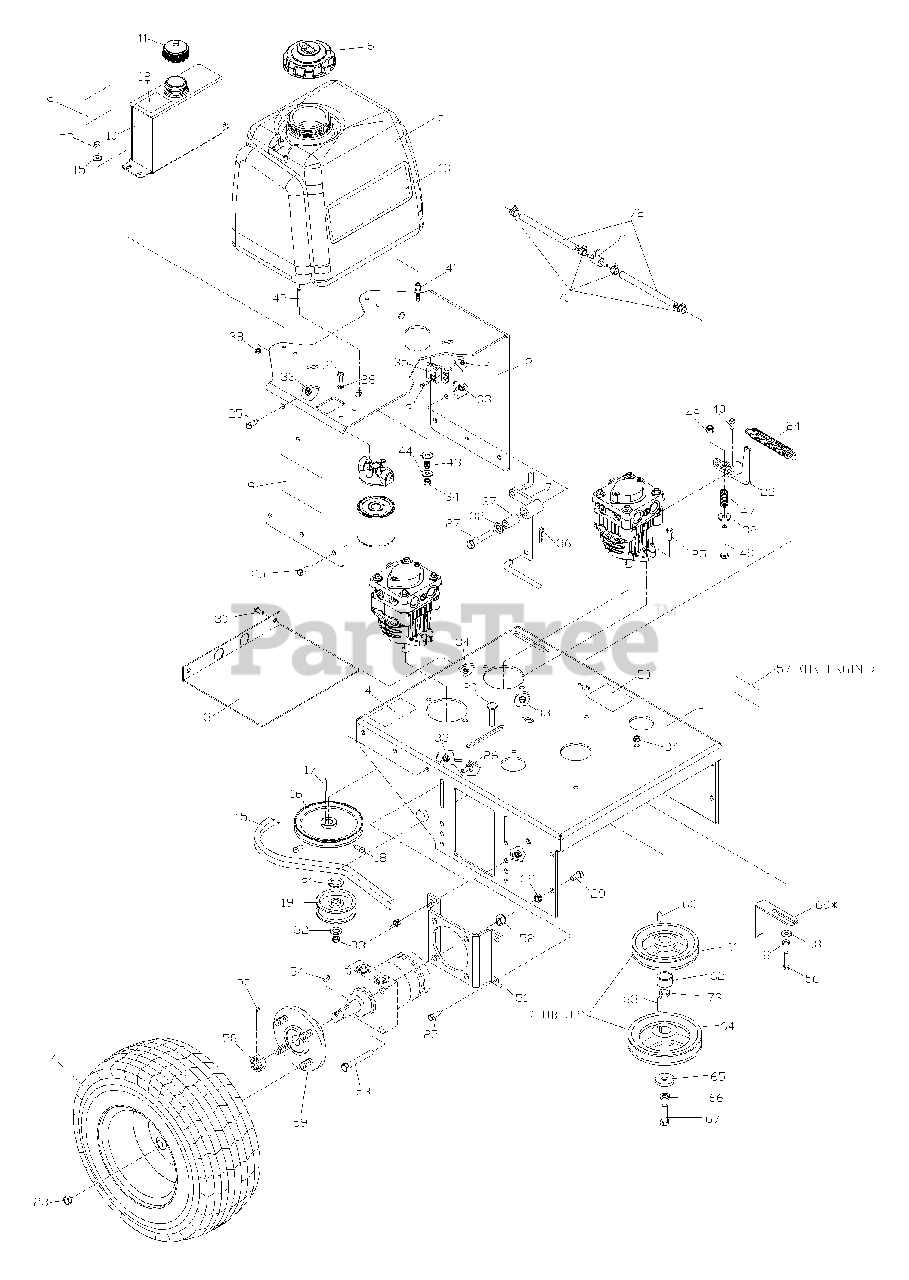

Power Unit Assembly Parts Diagram

  • Title

1

Husqvarna 539106560

REAR DECK W/DECALS

$

$

Not available

2

Husqvarna 539105922

TANK SUPPORT

$

$

Not available

3

Husqvarna 539104547

BELT SHIELD

$

$

Not available

4

Husqvarna 539104553

WHEEL ASM.

$113.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539101548

TIRE

$

$

Not available

4

Husqvarna 539104628

RIM
(Superseded to 539105805)

$194.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539912234

VALVE STEM

$6.49

$

In Stock, Qty 20+

0

5

Husqvarna 539105630

FUEL TANK

$207.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539106188

FUEL CAP
(Superseded to 539130394)

$31.99

$

In Stock, Qty 7

0

7

Husqvarna 539103461

BELL CRANK

$34.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539990187

WASHER 5/16 LOCK
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 539104789

DECAL, CROWN

$

$

Not available

10

Husqvarna 539105985

OIL TANK

$132.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539101202

OIL CAP

$24.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539105301

DECAL, MOBIL 1
(Superseded to 539114832)

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539104792

DECAL, WH4817

$

$

Not available

14

Husqvarna 539105744

DECAL, BELT DRIVE

$6.49

$

In Stock, only 4 left!

0

15

Husqvarna 539101228

BELT

$46.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539102228

PULLEY

$42.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539101177

KEY, METRIC

$8.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539102717

SCREW 5/16 X 625

$3.99

$

In Stock, Qty 6

0

19

Husqvarna 539919078

IDLER PULLEY

$37.99

$

In Stock, Qty 9

0

20

Husqvarna 539100145

RHSNB 3/8 X 2.0
(Superseded to 595901401)

$3.99

$

In Stock, Qty 14

0

21

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539105913

PUMP ARM WLDMT.

$

$

Not available

23

Husqvarna 539101173

LUGNUT

$

$

Not available

24

Husqvarna 539916159

SPRING

$7.49

$

In Stock, Qty 6

0

25

Husqvarna 539990563

HCS 3/8 X 1.0

$1.49

$

Usually ships in 3-10 days

0

26

Husqvarna 539990645

RHSNB 3/8 X 1.0

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539990588

HCS 3/8 X 2.0

$4.99

$

In Stock, Qty 12

0

28

Husqvarna 539990052

WASHER 1/4 LOCK

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539100143

HCS 7/16 X 1.0

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539976934

HCS 5/16 X 750
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

31

Husqvarna 539990072

HCS 1/4 X 625

$3.99

$

In Stock, only 3 left!

0

32

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539990546

NUT 3/8 CTR. LOCK

$

$

Not available

34

Husqvarna 539990184

NUT 5/16 CTR. LOCK

$3.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539101781

MODULE

$

$

Not available

36

Husqvarna 539976988

#2 HAIRPIN

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539101836

SLEEVE BUSHING

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539990761

NUT 1/4 CTR. LOCK

$4.99

$

In Stock, only 4 left!

0

39

Husqvarna 539990839

NUT 7/16 CTR. LOCK

$3.99

$

In Stock, only 3 left!

0

40

Husqvarna 539105079

SCREW 5/16 X 625 CONE

$

$

Not available

41

Husqvarna 539102650

HOSE BARB

$6.49

$

In Stock, only 2 left!

0

42

Husqvarna 539102502

STUD 5/16

$10.99

$

In Stock, Qty 5

0

43

Husqvarna 539102845

SPRING

$4.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

45

Husqvarna 539990598

WASHER 1/4 FLAT

$

$

Not available

46

Husqvarna 539990580

HCS 1/4 X 750

$3.99

$

In Stock, only 4 left!

0

47

Husqvarna 539101224

SPRING

$7.49

$

In Stock, only 1 left!

0

48

Husqvarna 539106492

HCS 3/8 X 2.750

$3.99

$

Usually ships in 3-10 days

0

49

Husqvarna 539976979

NUT 3/8 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

50

Husqvarna 539101881

DECAL, PROP 65
(Superseded to 596024201)

$2.49

$

In Stock, only 4 left!

0

51

Husqvarna 539102220

MOTOR MOUNT

$

$

Not available

52

Husqvarna 539101331

NUT 1/2 NYLOC
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

53

Husqvarna 539101332

HCS 1/2 X 2.750

$4.99

$

In Stock, only 4 left!

0

54

Husqvarna 539101465

KEY #808 WOODRUFF

$3.99

$

Usually ships in 3-10 days

0

55

Husqvarna 539990297

COTTER PIN

$3.99

$

Usually ships in 3-10 days

0

56

Husqvarna 539990669

HCS 5/16 X 1.750
(Superseded to 874780528)

$7.49

$

In Stock, only 4 left!

0

57

Husqvarna 539100128

DECAL, DANGER

$1.99

$

Usually ships in 3-10 days

0

58

Husqvarna 539101468

NUT SLTD. HEX

$3.99

$

Usually ships in 3-10 days

0

59

Husqvarna 539101109

HUB

$

$

Not available

60

Husqvarna 539102067

KEY 1/4 X 750

$5.99

$

In Stock, only 4 left!

0

61

Husqvarna 539101719

PULLEY

$103.99

$

Usually ships in 3-10 days

0

62

Husqvarna 539101720

SPACER

$15.99

$

Usually ships in 3-10 days

0

63

Husqvarna 539101995

KEY 1/4 X 1.125

$3.99

$

In Stock, only 2 left!

0

64

Husqvarna 539101834

PULLEY

$74.99

$

In Stock, only 1 left!

0

65

Husqvarna 539106504

HEAVY WASHER

$

$

Not available

66

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

67

Husqvarna 539100141

HCS 7/16 X 1.500

$

$

Not available

68

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

69

Husqvarna 539102036

BELT GUIDE

$18.99

$

Usually ships in 3-10 days

0

69

Husqvarna 539103462

BELT GUIDE

$12.99

$

Usually ships in 3-10 days

0

70

Husqvarna 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

71

Husqvarna 539916325

FUEL VALVE

$47.99

$

Usually ships in 3-10 days

0

72

Husqvarna 539932956

FUEL LINE

$8.99

$

Usually ships in 3-10 days

0

73

Husqvarna 539102050

MACH. BUSHING

$

$

Not available
