WH15 XK2 AC1 (WZAV) - Honda Water Pump, Made in Japan (SN: WZAV-1000001 - WZAV-9999999) RECOIL STARTER (WH15XK1/15XK2/20XK1/20XK2) Parts Diagram

Water Pump, Made in Japan

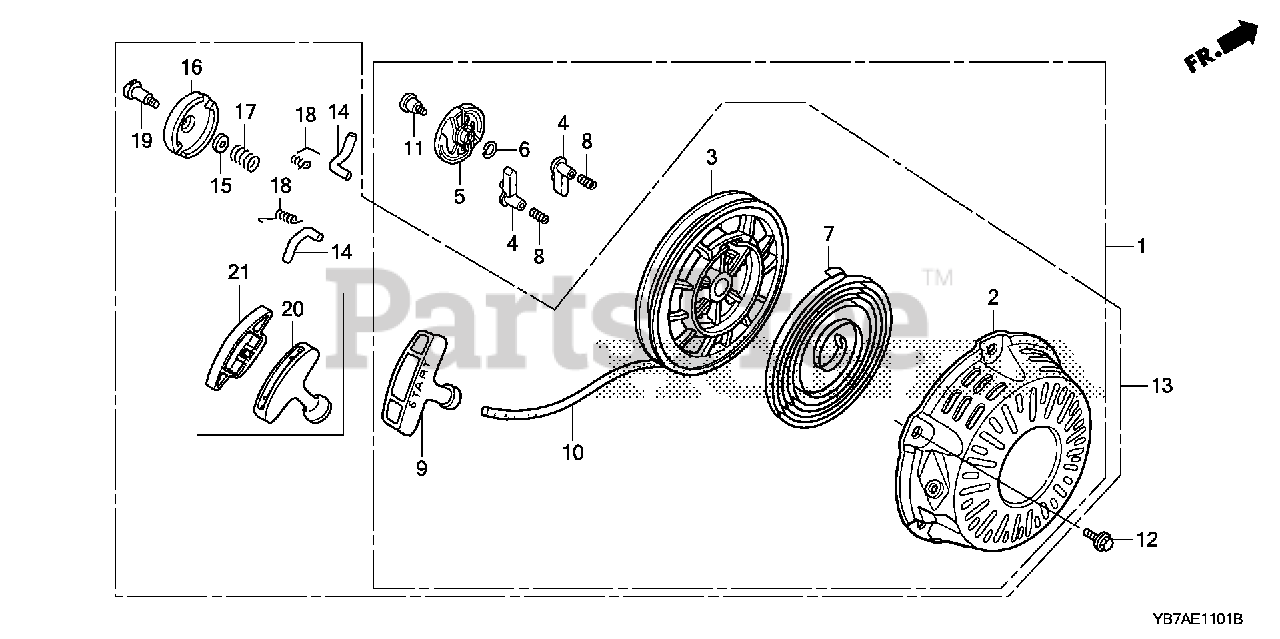

RECOIL STARTER (WH15XK1/15XK2/20XK1/20XK2) Parts Diagram

  • Title

2

Honda 28410-Z4M-003ZB

CASE, RECOIL STARTER *R280* (POWER RED)

$12.99

$

Usually ships in 3-6 days

0

3

Honda 28421-Z0T-003

REEL, RECOIL STARTER

$33.99

$

In Stock, only 1 left!

0

7

Honda 28442-ZH8-003

SPRING, RECOIL STARTER

$17.99

$

In Stock, Qty 11

0

10

Honda 28462-ZH8-003

ROPE, RECOIL STARTER

$11.99

$

In Stock, Qty 14

0

12

Honda 90008-ZE2-003

BOLT, FLANGE (6X10)

Note: Use up to Engine SN 1095310.

$1.99

$

In Stock, Qty 20+

0

12

Honda 95701-06008-00

BOLT, FLANGE (6X8)

Note: Use from Engine SN 1095311.

$3.49

$

In Stock, only 1 left!

0

13

Honda 28400-Z4M-305ZB

STARTER ASSY., RECOIL *R280* (COO)(FOR U.S.A.) (POWER RED)

$28.99

$

In Stock, Qty 13

0

14

Honda 28422-ZH8-801

RATCHET, STARTER

$6.49

$

In Stock, Qty 6

0

15

Honda 28431-ZH8-801

PLATE, FRICTION

$4.99

$

In Stock, only 2 left!

0

16

Honda 28433-ZH8-801

GUIDE, RATCHET

$8.49

$

Usually ships in 3-6 days

0

17

Honda 28441-ZH8-801

SPRING, FRICTION

$3.99

$

In Stock, only 1 left!

0

18

Honda 28443-ZH8-801

SPRING, RETURN

$3.49

$

In Stock, only 1 left!

0

19

Honda 90003-ZH8-801

SCREW, SETTING

$3.99

$

In Stock, only 3 left!

0

20

Honda 28461-Z4M-305

KNOB, RECOIL STARTER (COO)(FOR U.S.A.)
(Superseded to 28461-Z4M-003)

$

$

Not available

21

Honda 28463-Z4M-003

KNOB, REINFORCEMENT

$3.49

$

In Stock, only 1 left!

0
