WH20 XK1 AC1 (GC02) - Honda Water Pump, Made in Japan (SN: GC02-2000001 - GC02-8669999) CASING Parts Diagram

Water Pump, Made in Japan

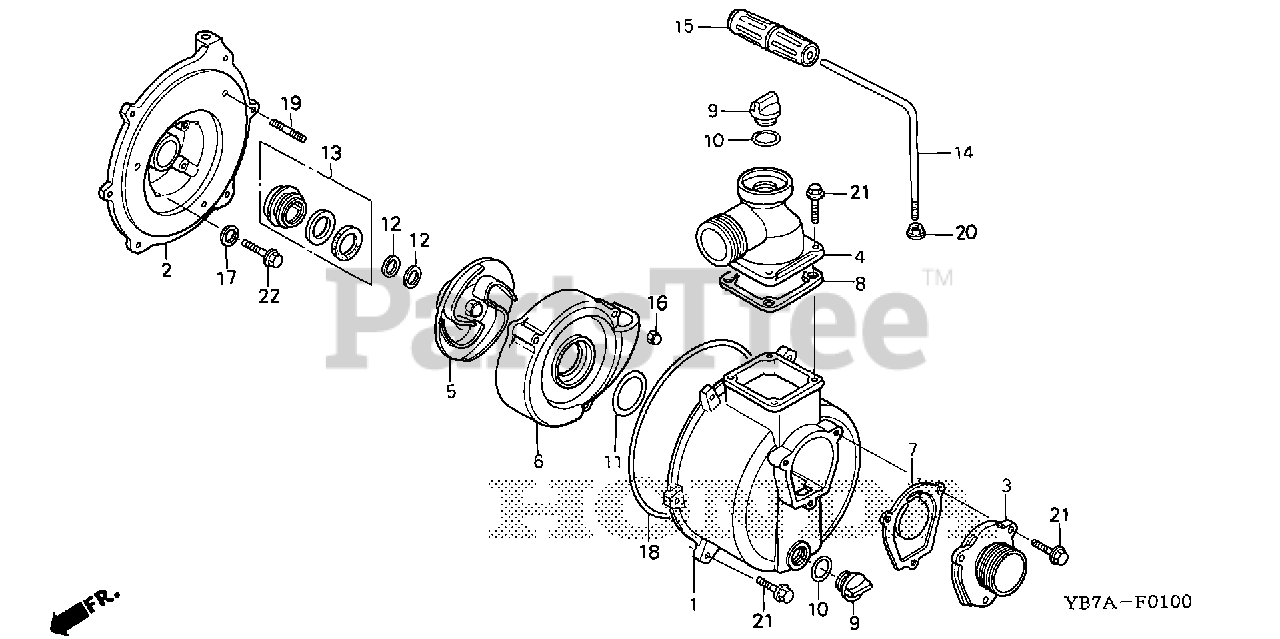

CASING Parts Diagram

  • Title

1

Honda 78101-YB7-020

CASING

$401.99

$

Usually ships in 3-6 days

0

2

Honda 78102-YB7-000

COVER, CASING

$219.99

$

Usually ships in 3-6 days

0

3

Honda 78103-YB3-630

PIPE, INLET

$64.99

$

Usually ships in 3-6 days

0

4

Honda 78104-YB3-631

PIPE, OUTLET

$130.99

$

Usually ships in 3-6 days

0

5

Honda 78106-YB7-700

SEE PART DETAILS - SUP; IMPELLER
(Superseded to 78106-YH6-000)

$16.99

$

Usually ships in 3-6 days

0

5

Honda 78106-YH6-000

SEE PART DETAILS - PRI; IMPELLER

$16.99

$

Usually ships in 3-6 days

0

6

Honda 78107-YH6-000

SEE PART DETAILS - PRI; CASE, VOLUTE

$36.99

$

Usually ships in 3-6 days

0

7

Honda 78110-YB3-000

VALVE, IN.

$29.99

$

In Stock, only 1 left!

0

8

Honda 78114-YB3-000

GASKET, OUTLET

$12.99

$

In Stock, only 2 left!

0

9

Honda 78117-YB7-020

SEE PART DETAILS - PRI; CAP, FILLER (ENGINE NO.)

$12.99

$

In Stock, only 2 left!

0

10

Honda 78118-YB0-003

SEE PART DETAILS - SUP; RING, SEAL (B)
(Superseded to 78118-YB0-004)

$9.99

$

In Stock, Qty 16

0

10

Honda 78118-YB0-004

SEE PART DETAILS - PRI; RING, SEAL (B)

$9.99

$

In Stock, Qty 16

0

11

Honda 78118-YB3-004

O-RING (49X5.7) (NOK)

$8.99

$

In Stock, Qty 6

0

12

Honda 78122-YB3-000

SHIM, ADJUSTER

$4.49

$

In Stock, Qty 8

0

13

Honda 78130-YB7-003

SEAL, MECHANICAL

$107.99

$

Usually ships in 3-6 days

0

14

Honda 78206-YB3-611

HANDLE

$27.99

$

Usually ships in 3-6 days

0

15

Honda 78207-YB3-611

GRIP, HANDLE

$13.99

$

Usually ships in 3-6 days

0

16

Honda 90281-YB4-000

NUT, CAP (6MM)

$2.49

$

In Stock, Qty 6

0

17

Honda 90474-333-000

WASHER, SEALING (8MM)

$4.99

$

In Stock, Qty 8

0

18

Honda 91351-YB3-003

O-RING (217.5X3.5) (ARAI)

$16.99

$

In Stock, only 2 left!

0

19

Honda 92900-06035-0B

BOLT, STUD (6X35)

$2.49

$

In Stock, only 3 left!

0

20

Honda 94001-14000-0S

NUT, HEX. (14MM)

$2.49

$

Usually ships in 3-6 days

0

21

Honda 95701-08025-00

BOLT, FLANGE (8X25)

$2.49

$

In Stock, Qty 5

0

22

Honda 95701-08028-00

BOLT, FLANGE (8X28)

$1.99

$

Usually ships in 3-6 days

0
