WHF 4215 ETS (968999127) - Husqvarna 42" Walk-Behind Mower (2001-12) Hydraulic Assembly Parts Diagram

42" Walk-Behind Mower

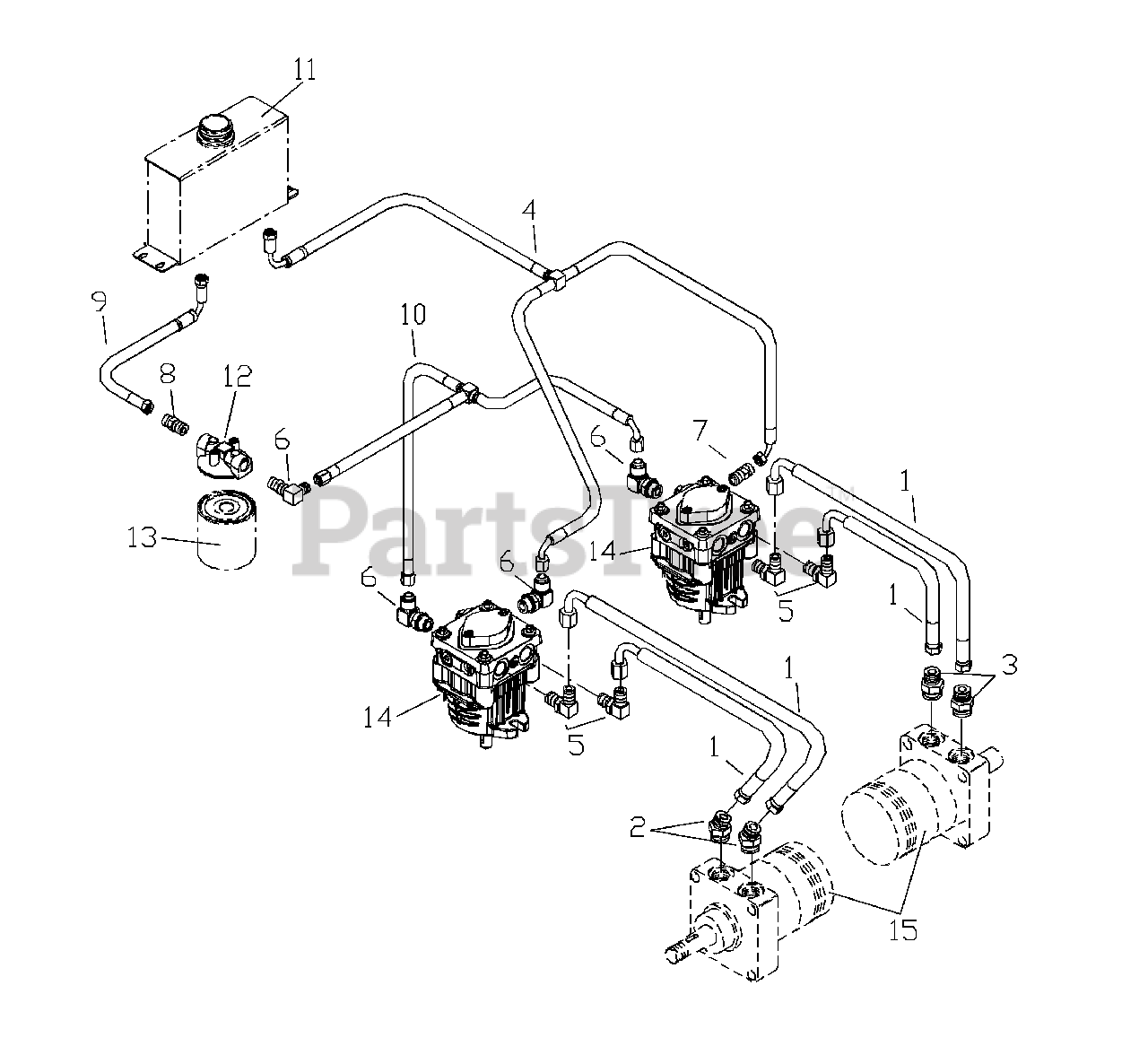

Hydraulic Assembly Parts Diagram

  • Title

1

Husqvarna 539101245

HOSE
(Superseded to 539102227)

$

$

Not available

2

Husqvarna 539101243

45 DEGREE ELBOW
(Superseded to 539132561)

$34.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539101239

STRAIGHT CONNECTOR
(Superseded to 539101237)

$12.99

$

In Stock, only 3 left!

0

4

Husqvarna 539102229

TEE HOSE

$54.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539101242

90 DEGREE ELBOW

$26.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539101238

90 DEGREE ELBOW

$15.99

$

Usually ships in 3-10 days

0

7

UNKNOWN

$

$

Not available

8

Husqvarna 539103316

STRAIGHT CONNECTOR

$8.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539101248

HOSE
(Superseded to 539102227)

$

$

Not available

10

Husqvarna 539102230

TEE HOSE

$48.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539105985

OIL TANK

$132.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539101165

FILTER HEAD

$46.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539102606

FILTER

$44.99

$

In Stock, Qty 10

0

14

Husqvarna 539104529

PUMP
(Superseded to 539132147)

$

$

Not available

15

Husqvarna 539103527

HYD. MOTOR

$

$

Not available
